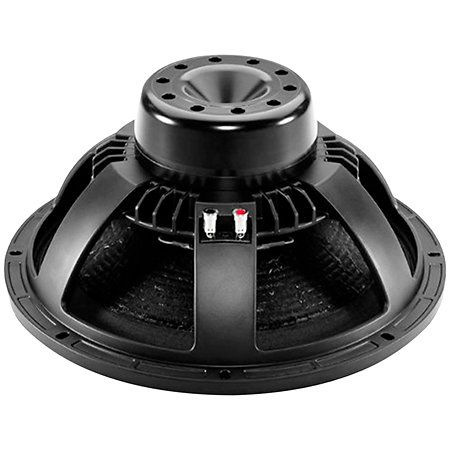

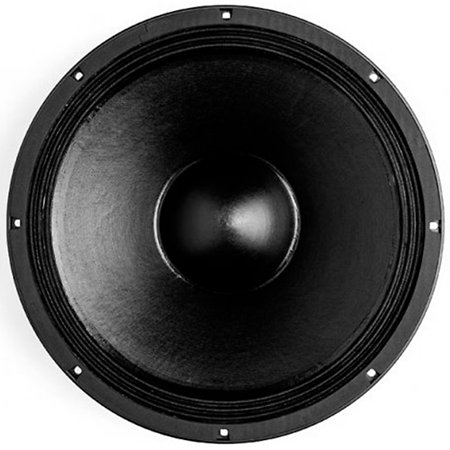

B&C Speakers - 15NA100 8 Ohm
307,50 €
excl VAT
including eco-part : 0,90 €
In Stock
Usually ships within 15 days
+infos
Guarantee 3
years
Jessie
Louis
Do you need help?
Speaker driver
The B&C 15NA100 8 Ohm is a powerful, lightweight and responsive 15" loudspeaker designed for high-performance bass/midrange systems. Its neodymium motor, 100 mm voice coil and 1600 W capacity make it a reliable choice for pro applications.
ARTICLE N° 105132
Presentation
The 15NA100 8 Ohm from B&C Speakers is a 15-inch loudspeaker designed for professional configurations that demand power, precision and reliability.
With its 100mm aluminium voice coil, neodymium inside slug motor and aluminium demodulation rings, it combines efficiency, low distortion and optimised thermal management. The result is a loudspeaker capable of handling up to 1600 W continuous power, while remaining lightweight and easy to integrate into a loudspeaker cabinet.
Its response extends from 45 Hz to 2000 Hz, making it an excellent choice for bass and low-midrange applications, both as a passive subwoofer and as a full-range loudspeaker with active crossover. The 98dB sensitivity level ensures good efficiency, even in situations where sound pressure has to be high.
The design features triple roll suspension, a double silicone spider and a hydrophobic membrane treatment on the front, making it more resistant to damp or dusty conditions.
The 15NA100, or 15-NA100, is often used in high-end touring systems or fixed installations, particularly where compactness and weight are important without sacrificing audio quality. Robust, precise and highly versatile, it can be adapted to a wide range of loudspeaker designs.
With its 100mm aluminium voice coil, neodymium inside slug motor and aluminium demodulation rings, it combines efficiency, low distortion and optimised thermal management. The result is a loudspeaker capable of handling up to 1600 W continuous power, while remaining lightweight and easy to integrate into a loudspeaker cabinet.
Its response extends from 45 Hz to 2000 Hz, making it an excellent choice for bass and low-midrange applications, both as a passive subwoofer and as a full-range loudspeaker with active crossover. The 98dB sensitivity level ensures good efficiency, even in situations where sound pressure has to be high.
The design features triple roll suspension, a double silicone spider and a hydrophobic membrane treatment on the front, making it more resistant to damp or dusty conditions.
The 15NA100, or 15-NA100, is often used in high-end touring systems or fixed installations, particularly where compactness and weight are important without sacrificing audio quality. Robust, precise and highly versatile, it can be adapted to a wide range of loudspeaker designs.
Other features
-
B&C Speakers 15NA100 8 Ohm
-
Cone speaker
-
Nominal diameter: 380 mm (15")
-
Nominal impedance: 8 ohm
-
Minimum impedance: 6.6 ohm
-
Nominal AES power: 800 W
-
Programme power: 1600 W
-
Sensitivity (1W/1m): 98 dB
-
Useful bandwidth: 45 Hz - 2000 Hz
-
Coil diameter: 100 mm (4")
-
Coil wire type: Aluminium
-
Winding depth: 23 mm
-
Magnet material : Neodymium (Inside Slug)
-
Flux density: 1.2 T
-
Suspension shape: Triple Roll
-
Demodulation ring: Aluminium
-
Resonance frequency (Fs): 47 Hz
-
Qts: 0.28
-
Qes / Qms: 0.29 / 6.1
-
Vas: 88 dm³
-
Xmax linear: ±10 mm
-
Maximum displacement (Xvar): ±9 mm
-
Emissive surface area (Sd): 855 cm2
-
Force factor (BL): 26.3 T-m
-
Moving mass (Mms) : 136 g
-
Inductance (Le): 1.2 mH
-
DC resistance (Re): 5.1 Ω
-
Efficiency (η₀): 2.9
-
EBP: 162 Hz
-
Spider type: Double silicone
-
Membrane shape : Exponential
-
Diaphragm treatment : WP Waterproof front
-
Bowl type: T-Pole
-
Recommended volume: 80 dm³
-
Recommended tuning frequency: 50 Hz
-

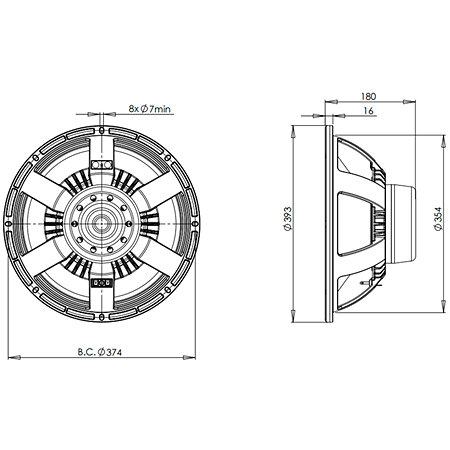

External diameter: 393 mm
-
Flush-mounted diameter: 354 mm
-
Mounting circle diameter: 374 mm
-
Front panel thickness: 16 mm
-
Total depth: 180 mm
-
Volume occupied by transducer: 6 dm³
-
Net weight: 8.6 kg
