Dap - Câble hybride FP-15, 6 m
145,83 €
excl VAT
including eco-part : 0,05 €
In Stock
Usually ships within 4 days
+infos
Guarantee 3
years
REFERENCE : DAPFP156M
Anais
Louis
Do you need help?
Dmx Cable

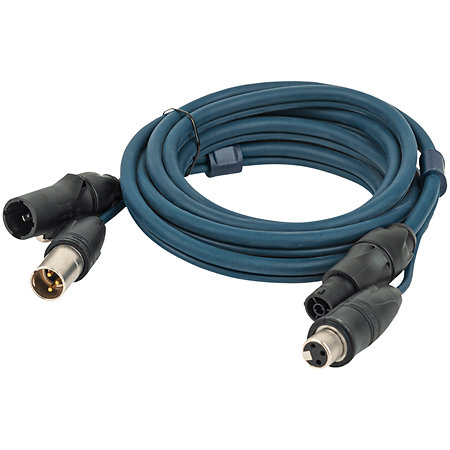

The DAP FP-15 Hybrid Cable in 6m carries 16A power and 3-pin DMX in a single, robust and practical cable for efficient stage installations.
ARTICLE N° 111857
Presentation
The 6 m FP-15 DAP Hybrid Cable is ideal for medium-sized installations looking to optimise logistics.
Thanks to its two-in-one format, it carries power and a 3-pin DMX signal in a single pass, reducing visible wiring and making it easier to set up.
Say goodbye to the jungle of criss-crossing wires.

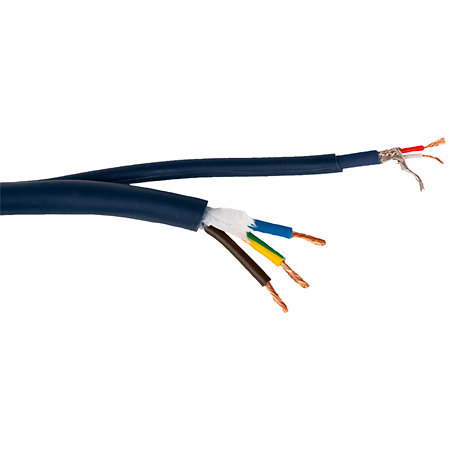

Designed to last, it combines a reliable copper conductor, PVC insulation and a protective coating. Its Neutrik TRUE1 TOP and XLR 3-pin connectors guarantee perfectly stable connections, even in touring situations.
Resistant to harsh conditions, this 1 kg blue cable maintains an excellent practicality/robustness ratio.
Thanks to its two-in-one format, it carries power and a 3-pin DMX signal in a single pass, reducing visible wiring and making it easier to set up.
Say goodbye to the jungle of criss-crossing wires.
Designed to last, it combines a reliable copper conductor, PVC insulation and a protective coating. Its Neutrik TRUE1 TOP and XLR 3-pin connectors guarantee perfectly stable connections, even in touring situations.
Resistant to harsh conditions, this 1 kg blue cable maintains an excellent practicality/robustness ratio.
Features
Weight
1,0 kg
Length (m)
6
Connectors
XLR female 3 pins, XLR male 3 pins, PowerCON Femelle In, PowerCON male Out
Color
Blue
Water & Dust Protection (IP rating)
IP65
Other features
-
DAP FP-15 hybrid cable, 6 m
-
2-in-1 powerCON True1 and three-pin XLR IP cable
-
Carries both power and control data
-
Current rating: 16 A
-
Operating voltage: 30 V
-
Impedance: 110 Ω
-
Connector 1: powerCON TRUE1 TOP male
-
Connector 2: powerCON TRUE1 TOP female
-
Number of pins (power): 3
-
DMX connector: XLR 3-pin male
-
DMX connector: XLR 3-pin female
-
Number of pins (data): 3
-
Connector brand: Neutrik
-
Cable length: 6 m
-
External cable diameter: 11 mm
-
Outer insulation type: PVC
-
Conductor material: Copper
-
Covering: Cotton, paper
-
Colour: Blue
-
IP rating: IP65
-
Weight: 1 kg
