Dap - FP12 IEC / XLR 10 m Noir
79,92 €
excl VAT
including eco-part : 0,05 €
In Stock
Usually ships within 4 days
+infos
Guarantee 3
years
REFERENCE : DAPFP12IECXLR10MNOIR
Anais
Louis
Do you need help?

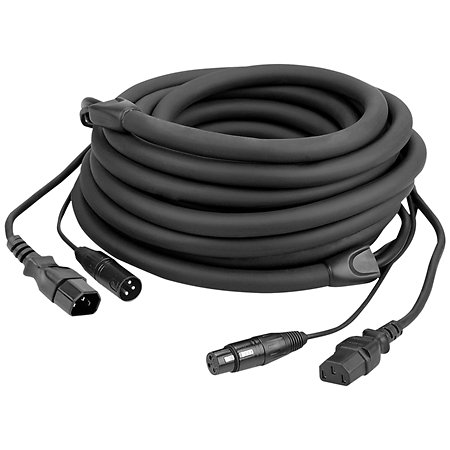

The DAP FP12 IEC/XLR 10 m Black combines power and DMX transmission in a single robust cable, designed to make your set-ups easier while keeping the stage visually impeccable.
ARTICLE N° 112495
Presentation
At 10 metres long, this hybrid cable lets you power your fixtures while sending the DMX signal via its 3-pin XLR connectors (male and female). Power is supplied via IEC C14/IEC C13 connectors, with three solid, reliable pins.
The design emphasises professional quality: copper conductors, robust contacts, tough PVC insulation and twisted shielding to protect your transmissions from unwanted interference. The result: a stable DMX stream with no signal loss, even in long-distance configurations.
Its 15 mm outer jacket gives it good mechanical strength without sacrificing flexibility, an ideal balance for repeated installations.
The design emphasises professional quality: copper conductors, robust contacts, tough PVC insulation and twisted shielding to protect your transmissions from unwanted interference. The result: a stable DMX stream with no signal loss, even in long-distance configurations.
Its 15 mm outer jacket gives it good mechanical strength without sacrificing flexibility, an ideal balance for repeated installations.
Features
Weight
2,2 kg
Length (m)
30
Color
Black
Water & Dust Protection (IP rating)
IP 20
Connectors
IEC female, IEC male, null, null
Other features
-
DAP FP12 IEC / XLR 10 m Black
-
2 in 1 power and DMX three-pin XLR cable
-
Carries both power and control data
-
Operating voltage: 30 V
-
Impedance: 110 Ω
-
Connector 1: IEC C14 male
-
Connector 2: IEC C13 female
-
Number of pins (power): 3
-
DMX XLR 3-pin male connector
-
DMX XLR 3-pin female connector
-
Number of pins (audio): 3
-
Conductor resistance: 80 Ω/km
-
Conductor capacitance: 60 pF/m
-
Inner conductor / shield capacitance: 78 pF/m
-
Screen resistance: 30 Ω/km
-
Cable length: 10 m
-
External cable diameter: 15 mm
-
Outer insulation type: PVC
-
Conductor material: Copper
-
Protection 1: Twisted
-
Sheathing : Paper
-
Colour : Black
-
Weight : 2,18 kg
