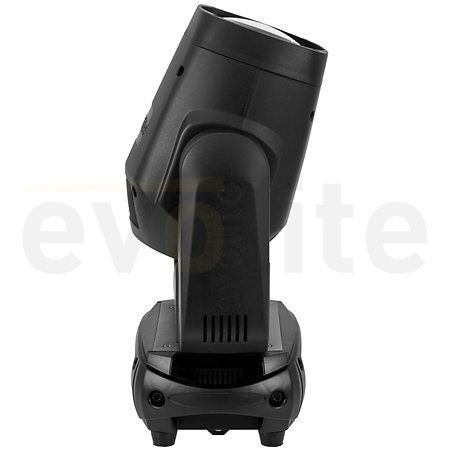

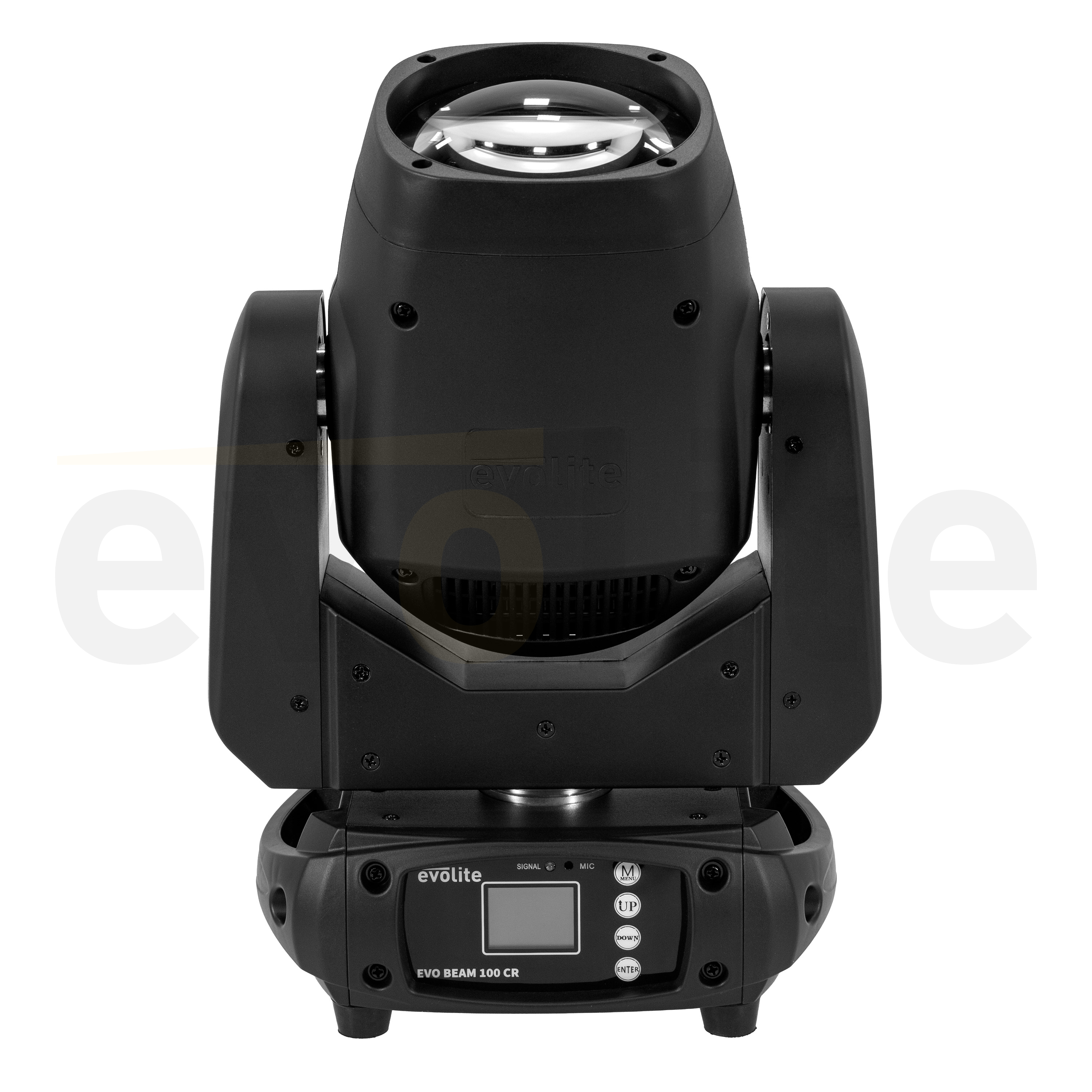

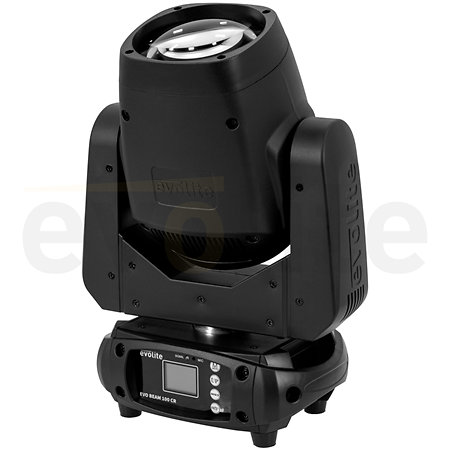

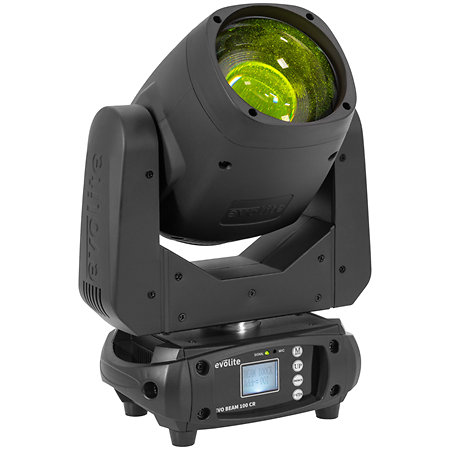

Evolite - Evo Beam 100-CR

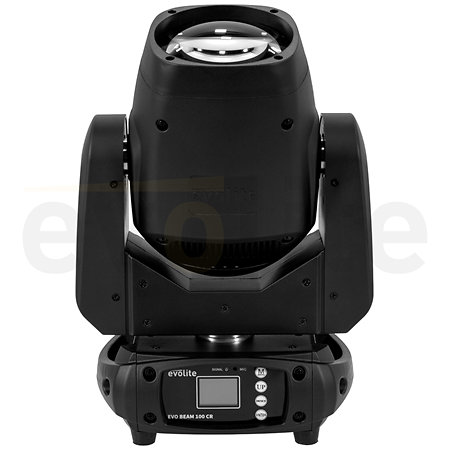

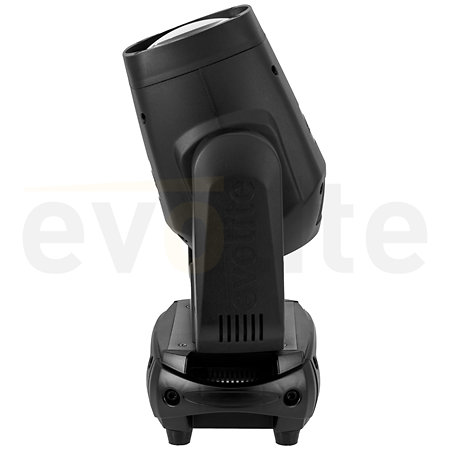

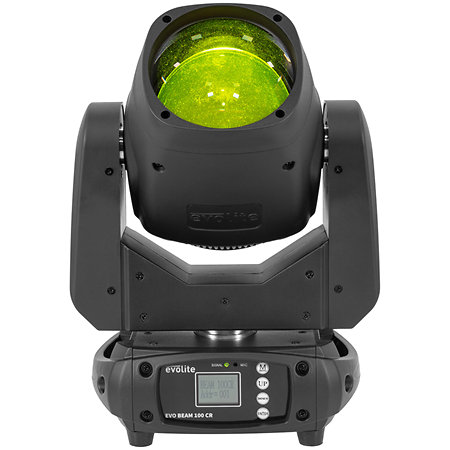

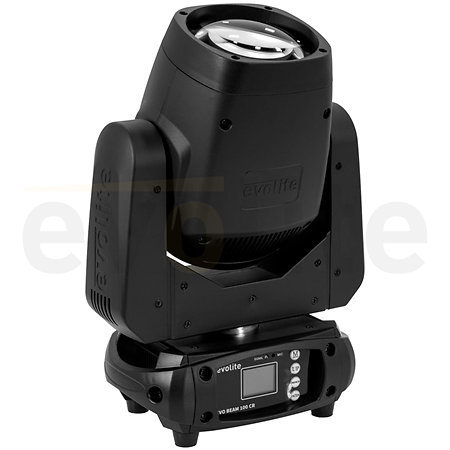

The evolite Evo Beam 100-CR is designed for service providers, clubs and TV studios looking for an incisive beam in the compact format of the Compact Range.

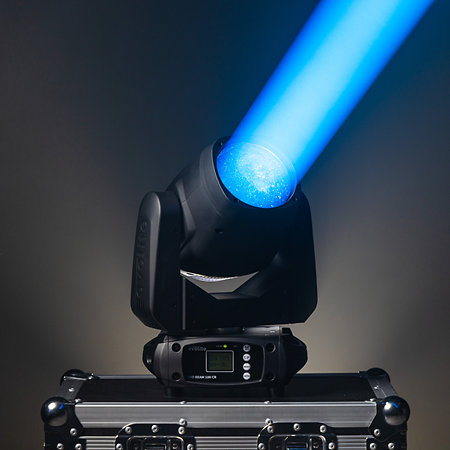

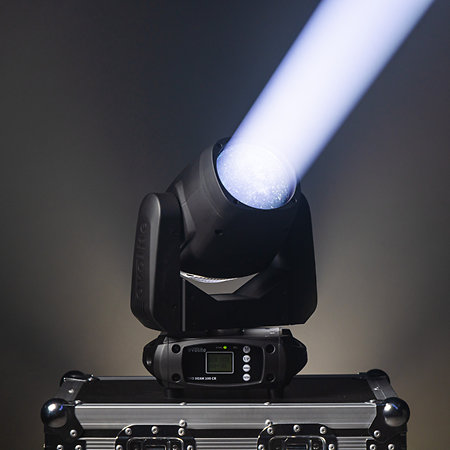

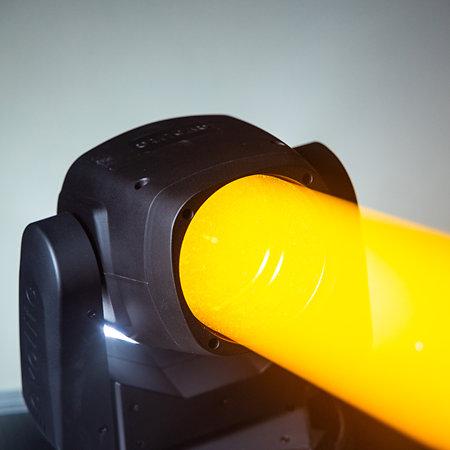

Its 100 W, 7,500 K white LED generates a luminous flux of 190,500 lux at 2.5 m with a narrow beam angle of 3°, ideal for drawing lines of light or highlighting a scenic element.

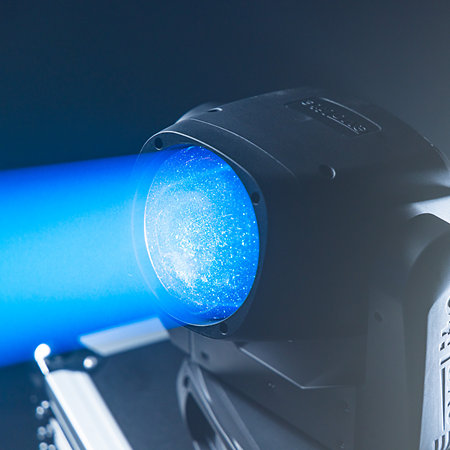

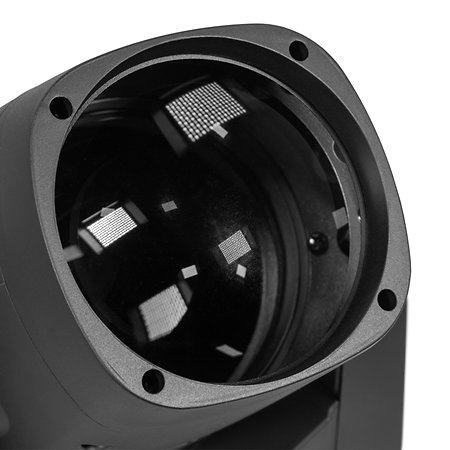

Motorised focus and high-transparency optics ensure a sharp projection, while 16-bit PAN (360° / 540° / 630°) and TILT (90° / 180° / 270°) rotation easily covers the stage, catwalks or dance floors.

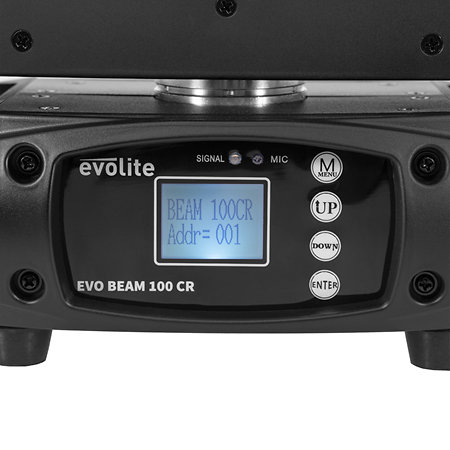

Two DMX modes (12 or 14 channels) enable rapid integration into an existing control room, while dynamic automatic programmes make it easy to set up temporary installations such as exhibition stands.

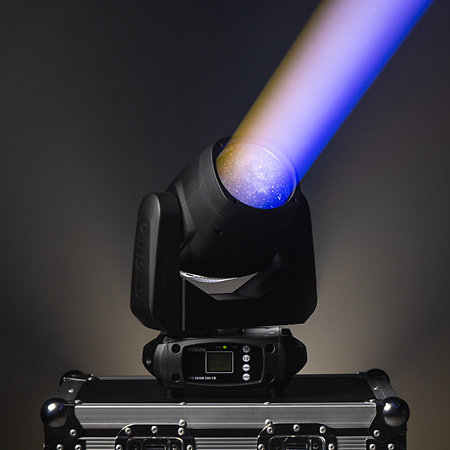

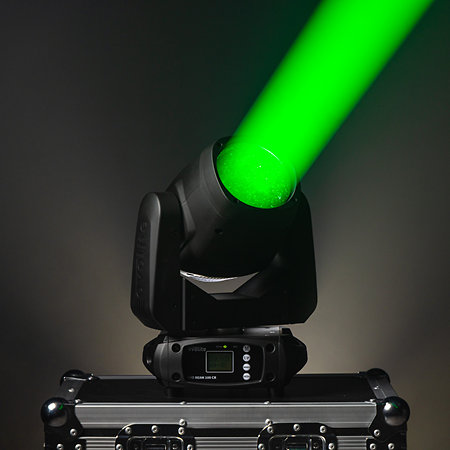

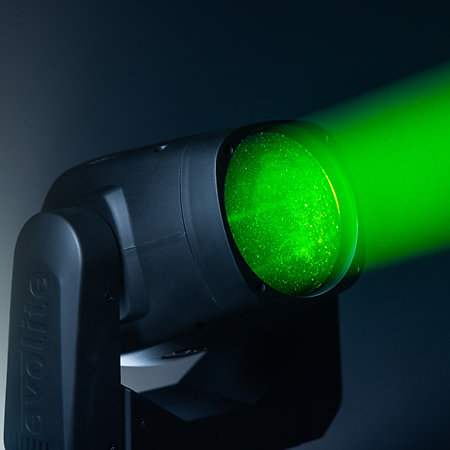

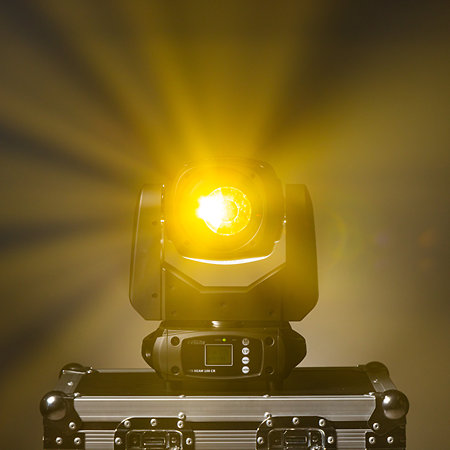

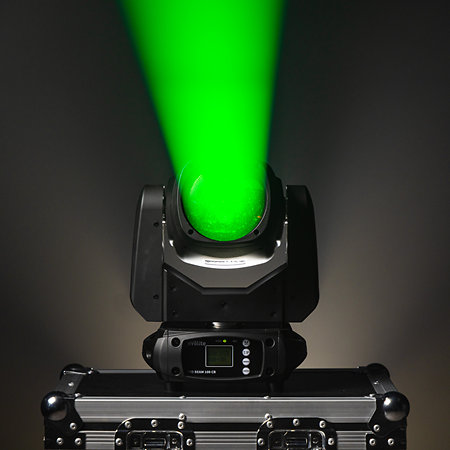

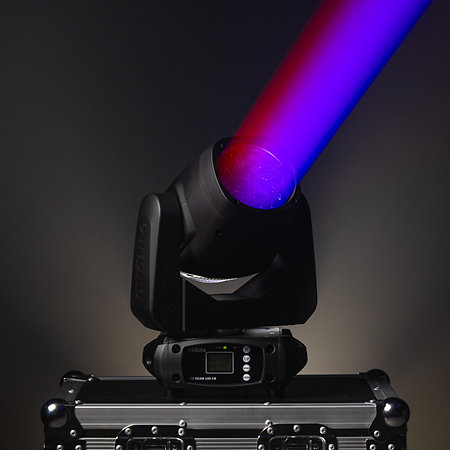

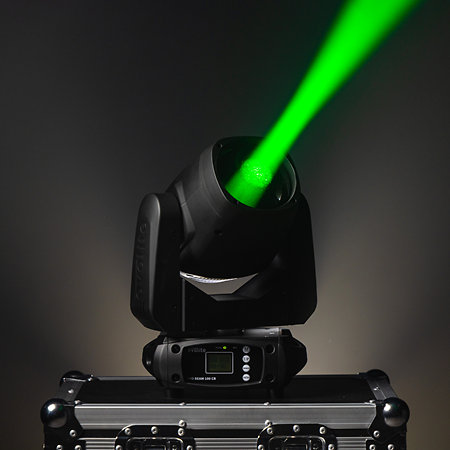

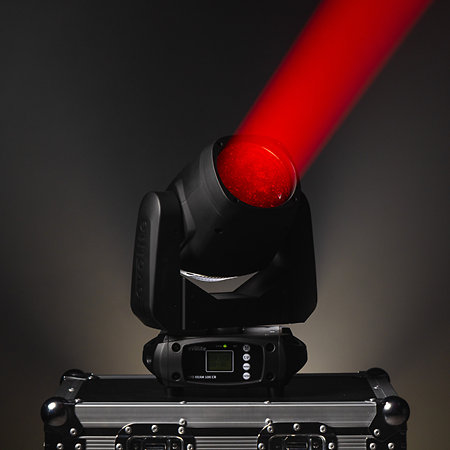

A wheel of 12 colours plus white ensures clean transitions or rainbow gradations, complemented by 14 fixed gobos to create aerial textures.

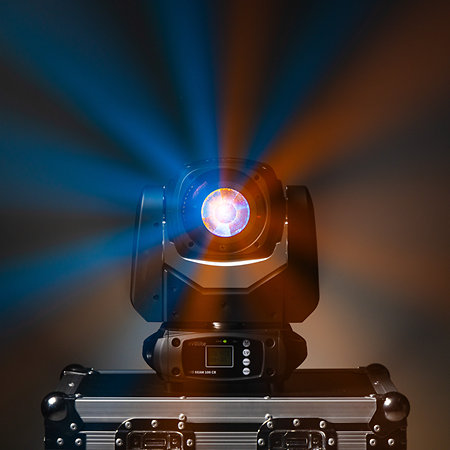

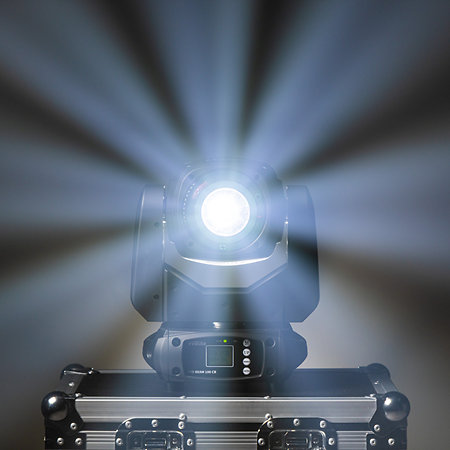

An 8-facet, bi-directional rotating prism multiplies the beams and increases visual coverage for DJ shows or corporate events.

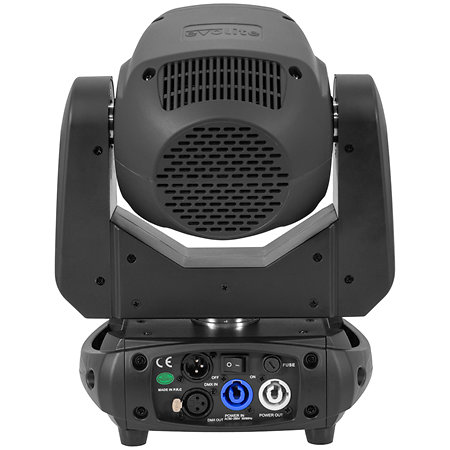

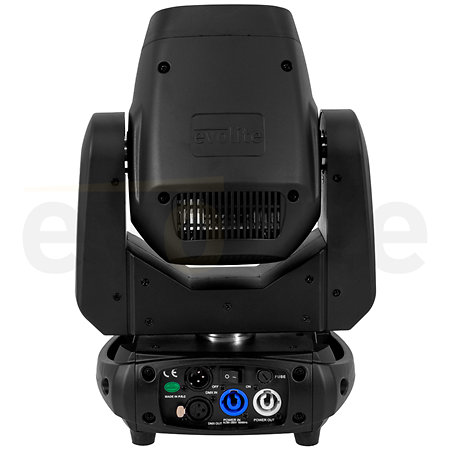

Forced-air cooling maintains a sound level of just 55dB, making it ideal for sound stages or intimate event spaces.

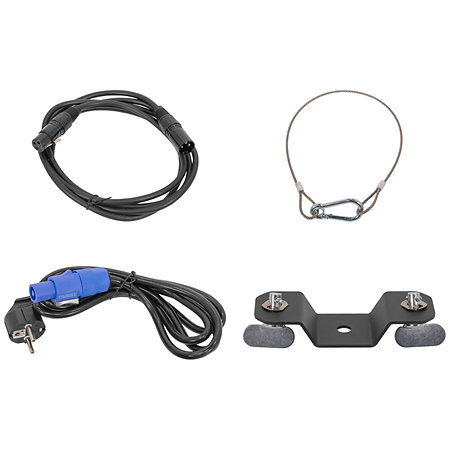

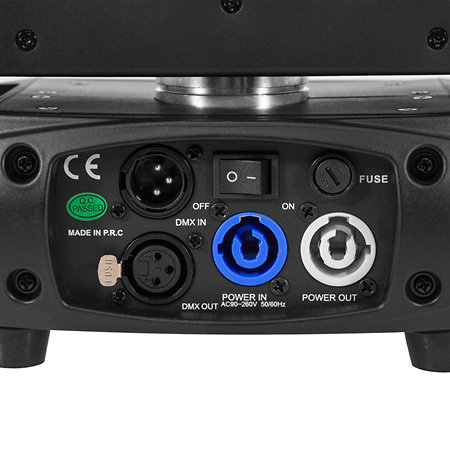

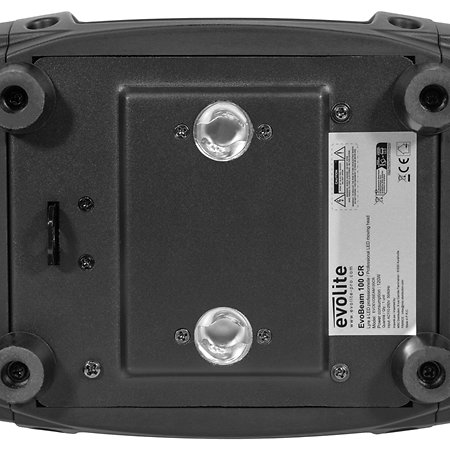

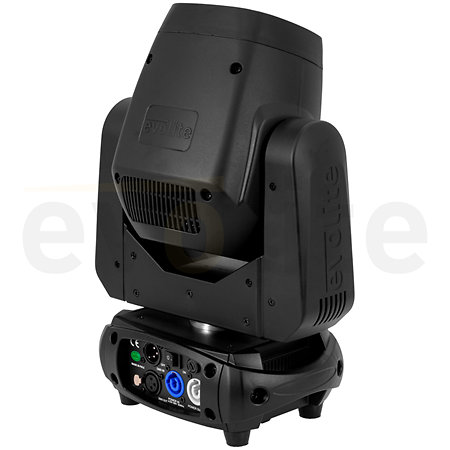

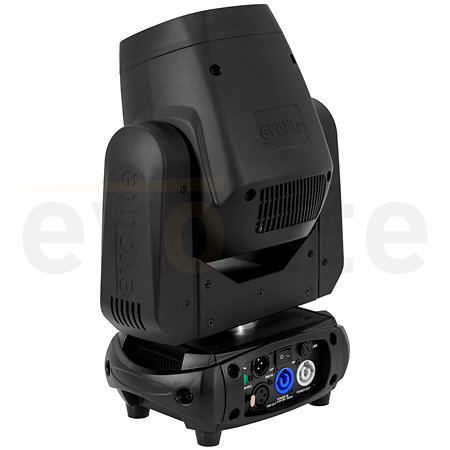

The powerCON input/output power supply simplifies daisy-chaining, and the omega clamps supplied speed up structure mounting.

Versatile and precise, the Evo Beam 100-CR is equally at home in a mobile kit or a fixed installation where a powerful beam effect is required without taking up too much space.
