The Nedis AAMP2411BK allows you to adapt the output level of a turntable to a standard line input. It has a simple RCA connection and works with the supplied power supply.
ARTICLE N° 119411
Presentation
The Nedis AAMP2411BK preamplifier allows a turntable to be integrated into an audio system, a light sound system or a home listening system. It provides RIAA correction and amplification of the phono signal to make it compatible with the conventional line input of an amplifier, mixer or active loudspeakers.
This type of device becomes necessary when the turntable does not have built-in preamplification. The AAMP2411BK raises the signal level while respecting the RIAA curve over a bandwidth of 20 Hz to 20 kHz with a tolerance of ±0.5 dB. The rate of harmonic distortion remains below 0.005%, maintaining the integrity of the audio signal during conversion.

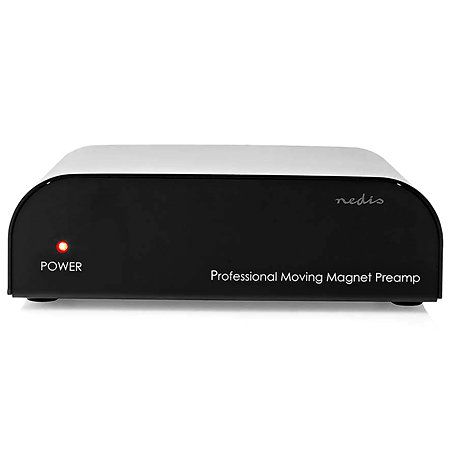

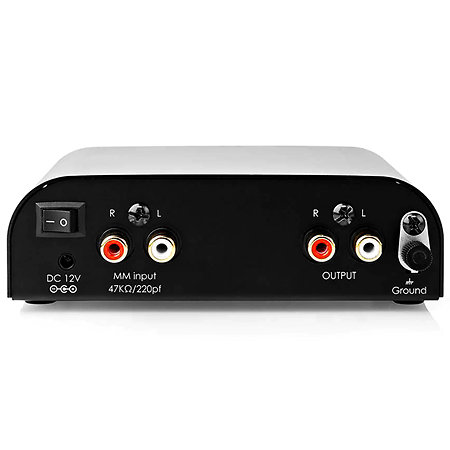

The input and output connections use gold-plated RCA sockets to maintain a clean link between the turntable and the audio system. The unit operates in two-channel stereo, and features a power button with indicator light for a quick check of its operating status.

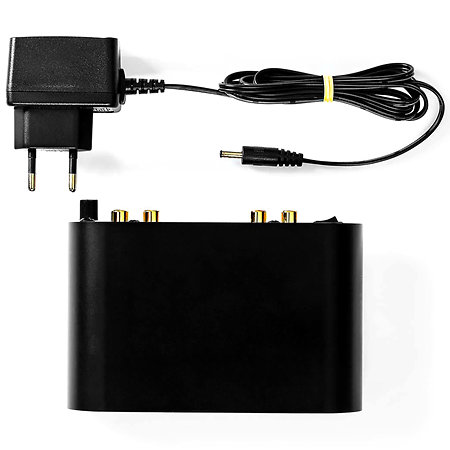

Powered by 12 V DC via the supplied mains adapter, the AAMP2411BK can be easily integrated into a DJ rack, hi-fi installation or sound reinforcement environment requiring the use of an external vinyl source.
This type of device becomes necessary when the turntable does not have built-in preamplification. The AAMP2411BK raises the signal level while respecting the RIAA curve over a bandwidth of 20 Hz to 20 kHz with a tolerance of ±0.5 dB. The rate of harmonic distortion remains below 0.005%, maintaining the integrity of the audio signal during conversion.
The input and output connections use gold-plated RCA sockets to maintain a clean link between the turntable and the audio system. The unit operates in two-channel stereo, and features a power button with indicator light for a quick check of its operating status.
Powered by 12 V DC via the supplied mains adapter, the AAMP2411BK can be easily integrated into a DJ rack, hi-fi installation or sound reinforcement environment requiring the use of an external vinyl source.
Features
Weight
370 g
Power supply
Power adapter (included)
Packaging
Single unit
Connectors
RCA female
Other features
-
Nedis AAMP2411BK
-
Stereo phono preamplifier
-
Number of channels: 2
-
Audio input: 1x RCA
-
Audio output: 1x RCA
-
Input control: phono, turntable
-
RIAA response: 20 Hz to 20 kHz (± 0.5 dB)
-
Total harmonic distortion (THD): < 0.005
-
Input impedance: 47 kOhm
-
Output impedance: 1 kOhm
-
Input overload margin: 20 dB
-
Rated power: 300 mV / 1 kOhm
-
Maximum output: 1.8 V / 1 kHz
-
Sound output: stereo
-
Function control: automatic
-
Power supply type: mains supply
-
Power connection: DC socket
-
Input voltage: 12 V DC
-
Input current: 0.5 A
-
Mains plug: Euro / Type-C (CEE 7/17)
-
Colour: Black
-
Dimensions: 130 x 38 x 81 mm
-
Weight: 369 g
