Rockboard - MOD 4 + U2 Transmitter
116,58 €
excl VAT
including eco-part : 0,14 €
In Stock
Usually ships within 24h
+infos
Guarantee 3
years
Fred
Eric
Do you need help?
Pedal Power
The RockBoard MOD 4 & Transmitter combines a 2.4 GHz wireless system with a centralised patchbay for pedalboards. Enjoy a stable connection with no noticeable latency and a range of up to 30 m. Organise all your audio and power links in one handy module.
ARTICLE N° 111929
Presentation
The RockBoard MOD 4 & Transmitter is designed to make life easier for guitarists and bassists by combining two essential functions in a single module: a high-performance wireless system and a handy patchbay for organising all your pedalboard connections.

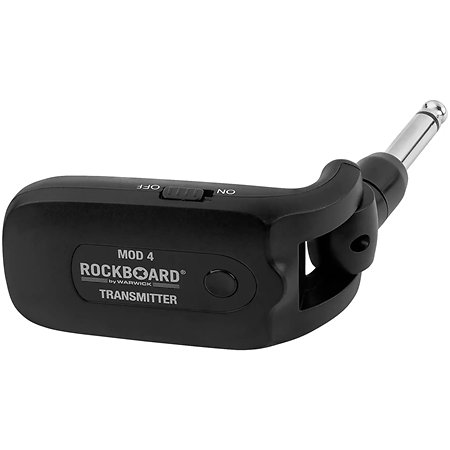

On the wireless side, it offers total freedom of movement thanks to 2.4 GHz digital technology, so it can be used anywhere in the world without constraint. With a full frequency response from 20 Hz to 20 kHz, uncompressed 24-bit / 48 kHz transmission and a latency of just 5 ms, playing is natural and precise. You can move up to 30 metres away from your pedalboard without loss of signal or interference. The included transmitter is easily recharged via USB-C, and the receiver fits directly into the module.

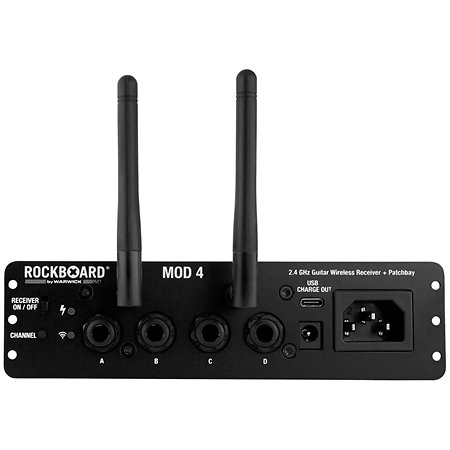

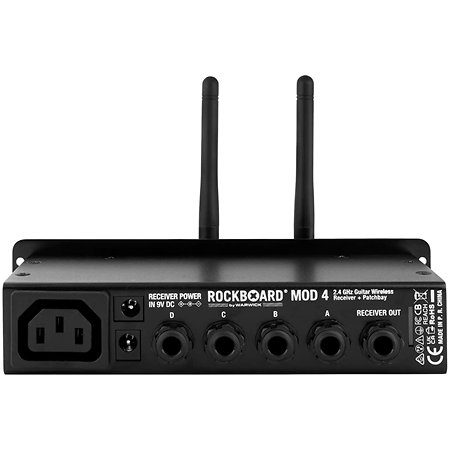

On the patchbay side, the MOD 4 centralises all your connections: four TRS jacks, an IEC mains output, a DC power feedthrough and even a USB-C output. The result: your cables stay neat and accessible, without having to rummage around under the pedalboard. What's more, its removable front plate means you can adapt it to almost any pedalboard, RockBoard or not.
A complete, simple and effective solution for playing connected and organised.
On the wireless side, it offers total freedom of movement thanks to 2.4 GHz digital technology, so it can be used anywhere in the world without constraint. With a full frequency response from 20 Hz to 20 kHz, uncompressed 24-bit / 48 kHz transmission and a latency of just 5 ms, playing is natural and precise. You can move up to 30 metres away from your pedalboard without loss of signal or interference. The included transmitter is easily recharged via USB-C, and the receiver fits directly into the module.
On the patchbay side, the MOD 4 centralises all your connections: four TRS jacks, an IEC mains output, a DC power feedthrough and even a USB-C output. The result: your cables stay neat and accessible, without having to rummage around under the pedalboard. What's more, its removable front plate means you can adapt it to almost any pedalboard, RockBoard or not.
A complete, simple and effective solution for playing connected and organised.
Features
Polarity
Negative in the center
Weight
30 g
Packaging
Single unit
Other features
-
RockBoard MOD 4 & Transmitter - TRS, DC, IEC & ISM Patchbay
-
Multifunction patchbay module
-
Integrated wireless receiver for pedalboard, supplied with transmitter
-
.
-
Wireless system :
-
Integrated receiver + transmitter included
-
Uncompressed 24-bit / 48 kHz digital transmission
-
2.4 GHz ISM band (usable without worldwide restrictions)
-
Range: approx. 30 m / 100 ft (unobstructed)
-
Frequency response: 20 Hz - 20 kHz
-
Latency: 5 ms
-
Dynamic range: > 103 dB
-
RF sensitivity: -85 dBm
-
Total harmonic distortion: 0.2
-
4 selectable channels
-
Audio output: 1x 6.3 mm jack (TS, mono)
-
Removable antennas included
-
Charging via USB Type C
-
.
-
Patchbay function:
-
Serves as a central access point for your effects chain
-
Compatible with MOD slots on RockBoard pedalboards and most other pedalboards
-
Detachable front plate for mounting above or below the pedalboard
-
4 x 6.3 mm stereo Thru (TRS) outputs
-
1 x 6.3 mm mono receiver audio output (TS)
-
1 x 2.1 x 5.5 mm DC Thru output
-
1 x IEC Thru mains output
-
1 x USB-C output for recharging
-
.
-
Power supply :
-
Operates via optional 9V DC mains adapter (2.1 x 5.5 mm plug, centre-negative polarity)
-
Current consumption: 500 mA
-
No battery operation
-
Passive operation possible in patchbay mode only (without wireless system)
-
.
-

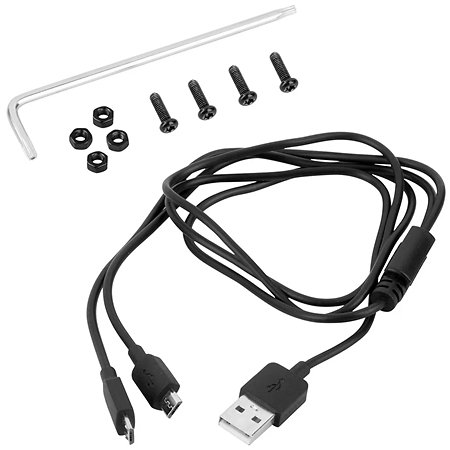

Included in the box :
-
1 wireless transmitter
-
2 antennas
-
1 USB charging cable
-
Fixing screws and locknuts
-
.
-
Dimensions & weight :
-
With front plate: 175 x 85 x 47 mm
-
Without front plate: 160 x 85 x 33 mm
-
Weight: 500 g
