Showgear - PowerCore 32.9p
820,83 €
excl VAT
including eco-part : 0,05 €
In Stock
Usually ships within 4 days
+infos
Guarantee 3
years
REFERENCE : SHOPOWERCORE329P
Anais
Louis
Do you need help?
Power Cable
The Showgear PowerCore 32.9p is a 32 A electrical distribution system designed to provide a secure power supply for stage installations, technical stages and event configurations. Each circuit has its own RCBO, enabling selective disconnection in the event of an overload or earth fault, while guaranteeing continuity throughout the rest of the system. LED indicators provide an immediate view of circuit status, while the 3.14" LCD screen gives access to essential information such as voltage, current and power consumption.
ARTICLE N° 115628
Presentation
The PowerCore 32.9p is a power distribution system designed to provide a stable, protected and easily supervised power supply in professional environments. Its architecture is based on individual RCBOs for each output, making it possible to isolate only the circuit concerned when an incident is detected. This design reduces overall interruptions and ensures essential continuity of service during shows, technical installations or live performances.

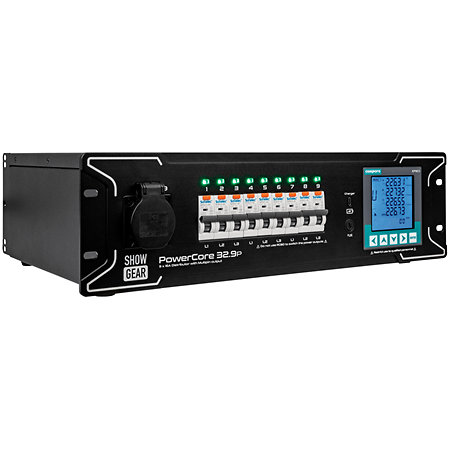

To facilitate visual inspection, each circuit is fitted with an LED indicator that gives an immediate indication of its status. A green LED means normal operation, while a red display indicates a problem that needs checking. The device also features a 3.14" LCD screen, which displays important electrical data such as voltage, current, total power and phase information in real time. This instant readability enables technicians to keep a clear view of the entire power supply.
The PowerCore 32.9p is compatible with the MdbuS protocol, enabling it to be linked to a PowerCore server. This integration facilitates remote supervision of several units at once, up to six spool valves simultaneously, via a simple XLR cable or an IP interface. For technical teams, this possibility represents a significant gain in responsiveness and management comfort.
To facilitate visual inspection, each circuit is fitted with an LED indicator that gives an immediate indication of its status. A green LED means normal operation, while a red display indicates a problem that needs checking. The device also features a 3.14" LCD screen, which displays important electrical data such as voltage, current, total power and phase information in real time. This instant readability enables technicians to keep a clear view of the entire power supply.
The PowerCore 32.9p is compatible with the MdbuS protocol, enabling it to be linked to a PowerCore server. This integration facilitates remote supervision of several units at once, up to six spool valves simultaneously, via a simple XLR cable or an IP interface. For technical teams, this possibility represents a significant gain in responsiveness and management comfort.
Features
Number of outputs
9
Weight
11,8 kg
Packaging
Single unit
Connectors
XLR female 3 pins, XLR male 3 pins, CEE 5P, True One
Color
Black
Water & Dust Protection (IP rating)
IP 20
Other features
-
Showgear PowerCore 32.9p
-
Electrical distribution
-
Communication protocol: MdbuS
-
Display: LCD
-
Screen size: 3.14
-
Nominal voltage: 400 V
-
Power consumption: 7.5 W
-
Power supply type: AC 3-Phase + N + PE
-
Nominal current: 32 A
-
Rated frequency: 50 Hz
-
Internal fuse: 1 A
-
Data IN connector: XLR 3P
-
Data OUT connector: XLR 3P
-
Power IN connector: CEE5P 32 A
-
Power connectors OUT: Power Pro True, Schuko Type F plug
-
Cable length: 1 m
-
RCBO current: 16 A
-
Number of RCBO poles: 2
-
RCBO sensitivity: 30 mA
-
LED indicator: power status per circuit
-
Ground contact position: 6H
-
Max. operating temperature : 40 °C
-
Min operating temperature: -5 °C
-
19" rack: 3U
-
Dimensions: 483 x 344 x 139 mm
-
Weight : 11,8 kg
