Bose Professional - ArenaMatch AM40/80 DeltaQ
4 400 €
excl VAT
including eco-part : 0,90 €
In Stock
Usually ships within 3 days
+infos
Guarantee 3
years
Jessie
Louis
Do you need help?
Line Array
Designed for outdoor environments, the Bose Professional ArenaMatch AM40/80 speaker combines robustness, sonic precision and adaptability. It uses DeltaQ technology to direct sound to where the ears are most likely to hear it. Thanks to its interchangeable waveguides and high-performance components, it provides optimum coverage, even in the most chaotic open spaces. Waterproof, powerful and designed for the field, this Line Array loudspeaker knows how to hold its own and make its voice heard, even when the wind and rain invite themselves to the party.
ARTICLE N° 105144
Presentation
If you're the kind of person who wants every corner of a stadium to sound as good as the VIP box, the Bose Professional ArenaMatch AM40/80 could be your best bet. Its DeltaQ technology, worthy of an acoustic GPS, lets you shape sound coverage with an almost maniacal attention to detail. The result: stunning intelligibility and a fidelity that has nothing to envy indoor installations, even in the middle of a storm. Yes, it's got power. No, it won't scream.

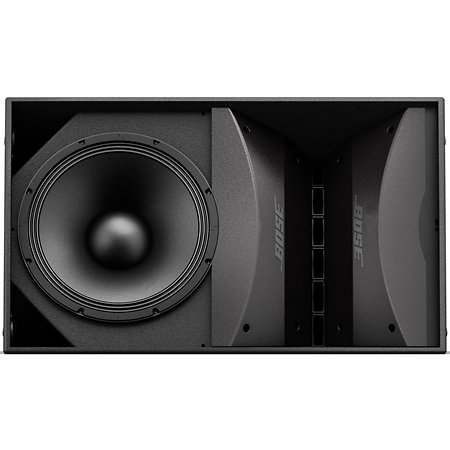

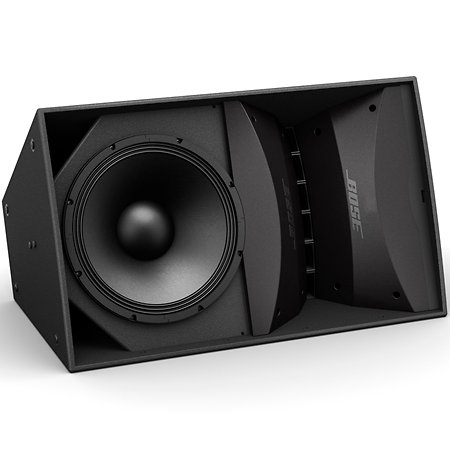

Its 356 mm woofer doesn't pretend: with a neodymium magnet and 102 mm voice coil, it delivers acoustic pressure that doesn't just hit you - it lets you know what's going on. Alongside it, six 51 mm tweeters with titanium diaphragms play with finesse, even at high volumes. This combination muscles the bass while caressing the treble, for balanced sound reproduction from any distance.
Installing the AM40/80 is not a headache. It accepts both in-house Bose Professional mounting accessories and custom frames via its M12 inserts. And because it's not prone to moisture or dust, its polyurethane coating and triple-layer grille provide IP55 protection. So you can strap it on, forget about it, then smile when you see it still faithful after the rain.
Its 356 mm woofer doesn't pretend: with a neodymium magnet and 102 mm voice coil, it delivers acoustic pressure that doesn't just hit you - it lets you know what's going on. Alongside it, six 51 mm tweeters with titanium diaphragms play with finesse, even at high volumes. This combination muscles the bass while caressing the treble, for balanced sound reproduction from any distance.
Installing the AM40/80 is not a headache. It accepts both in-house Bose Professional mounting accessories and custom frames via its M12 inserts. And because it's not prone to moisture or dust, its polyurethane coating and triple-layer grille provide IP55 protection. So you can strap it on, forget about it, then smile when you see it still faithful after the rain.
Other features
-
Bose Professional ArenaMatch AM40/80
-
Line Array Speaker
-
Series : ArenaMatch
-
Manufacturer reference: 794042-6680
-
Passive 2-way bi-amplifiable speaker system
-
Colour: black
-
Usage : Outdoor
-
Applications : Stadiums, arenas, outdoor entertainment centres
-
Certification: EN 54-24: 2008
-
Protection rating: IP55 / IP33C
-
Nominal impedance: 8 Ω
-
Peak power: 3000 W
-
Continuous power: 750 W
-
Peak power (LF / HF) : 2400 W / 600 W
-
Continuous power (LF / HF) : 600 W / 150 W
-
70V transformer: 100, 200, 400 W
-
100V transformer: 200, 400 W
-
Sensitivity: 97 dB
-
Max SPL: 126 dB
-
Driver: ∅356 mm (14"), neodymium magnet, coil ∅102 mm (4")
-
Tweeter: 6x ∅51 mm (2") neodymium magnet, EMB2S titanium cone
-
Crossover: 950 Hz internal passive or external dual-amp
-
Recommended signal processing : ControlSpace presets Designer software
-
Frequency response: 55 Hz ⭢ 18 kHz
-
Directionality: H80° × V40° nominal
-
DeltaQ technology: Interchangeable waveguides for H60°, H80°, H100° (sold separately)
-

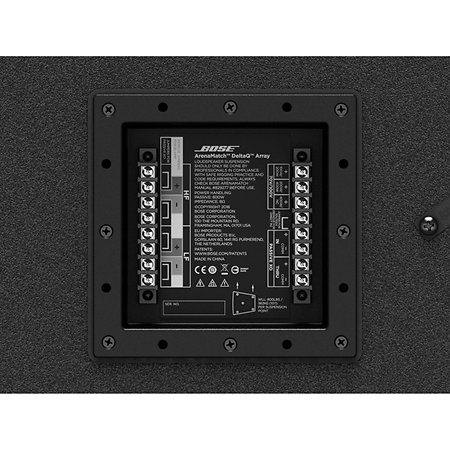

Connectors: Terminal blocks
-
Protective cover for connectors supplied
-
M12 threaded inserts, compatible with Bose Professional accessories
-
Enclosure material: Birch plywood
-
Grille: Stainless steel + acoustic foam + stainless steel mesh
-
Coating: Polyurethane Polyurethane
-
Dimensions: 783 x 489 x 400 mm
-
Net weight: 34.9 kg
To find out more...
In-house tip: combining the AM40/80 with ArenaMatch Utility speakers for peripheral zones often makes all the difference. Combined with PowerMatch amps and ControlSpace DSP, you can fine-tune every sonic nook and cranny, even if you're not an audio druid.
The DeltaQ technology used here is not named after an energy drink, but for its ability to adjust the directivity of the module. In other words, the speaker doesn't just throw sound at random: it targets, it aims, it shoots. Precise like a sniper, but in a musical version.
The DeltaQ technology used here is not named after an energy drink, but for its ability to adjust the directivity of the module. In other words, the speaker doesn't just throw sound at random: it targets, it aims, it shoots. Precise like a sniper, but in a musical version.
