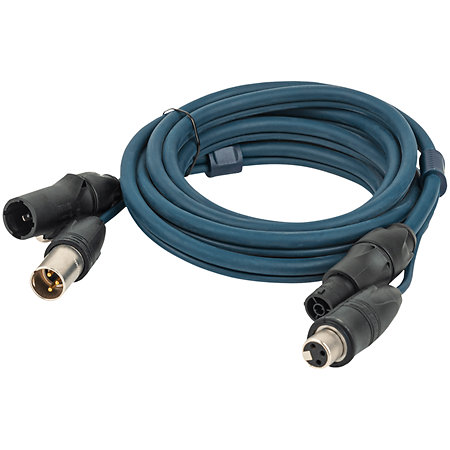

Dap - Câble hybride FP-15, 15 m
165,83 €
excl VAT
including eco-part : 0,05 €
In Stock
Usually ships within 4 days
+infos
Guarantee 3
years
REFERENCE : DAPFP1515M
Anais
Louis
Do you need help?
Dmx Cable
When the stage stretches out, the 15 m DAP FP-15 hybrid cable becomes the discreet but indispensable link between your ideas and your lights.
ARTICLE N° 111860
Presentation
The DAP FP-15 hybrid cable in 15 m is the answer to ambitious configurations where distances between equipment are intolerable.
There's no need for multiple power and control cables: this two-in-one model combines everything in a single sheath. Power and 3-pin DMX signal travel together in complete safety, carried by Neutrik TRUE1 TOP and XLR connectors of recognised reliability in the show business.
Despite its length, the FP-15 is still easy to handle and practical, thanks to a design that's ideal for touring and repeated installations.

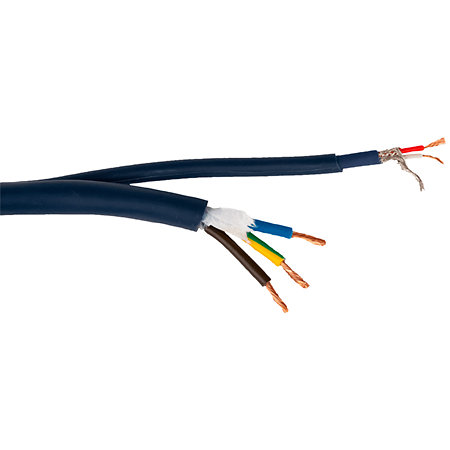

Its shielded copper construction, PVC insulation and IP65 certification make it a robust ally.
Weighing in at just 2.22 kg, it's ready to take on large stages, festivals or fixed installations.
There's no need for multiple power and control cables: this two-in-one model combines everything in a single sheath. Power and 3-pin DMX signal travel together in complete safety, carried by Neutrik TRUE1 TOP and XLR connectors of recognised reliability in the show business.
Despite its length, the FP-15 is still easy to handle and practical, thanks to a design that's ideal for touring and repeated installations.
Its shielded copper construction, PVC insulation and IP65 certification make it a robust ally.
Weighing in at just 2.22 kg, it's ready to take on large stages, festivals or fixed installations.
Features
Weight
2,2 kg
Length (m)
35
Connectors
XLR female 3 pins, XLR male 3 pins, PowerCON Femelle In, PowerCON male Out
Color
Blue
Water & Dust Protection (IP rating)
IP65
Other features
-
DAP FP-15 hybrid cable, 15 m
-
2-in-1 powerCON True1 and three-pin XLR IP cable
-
Carries both power and control data
-
Current rating: 16 A
-
Operating voltage: 30 V
-
Impedance: 110 Ω
-
Connector 1: powerCON TRUE1 TOP male
-
Connector 2: powerCON TRUE1 TOP female
-
Number of pins (power): 3
-
DMX connector: XLR 3-pin male
-
DMX connector: XLR 3-pin female
-
Number of pins (data): 3
-
Connector brand: Neutrik
-
Cable length: 15 m
-
External cable diameter: 11 mm
-
Outer insulation type: PVC
-
Conductor material: Copper
-
Covering: Cotton, paper
-
Colour: Blue
-
IP rating: IP65
-
Weight: 2.2 kg
