Tired of juggling two cables for every installation? The DAP FP12 IEC/XLR 6 m simplifies life for technicians by combining power and DMX data in a single robust cable.
ARTICLE N° 112492

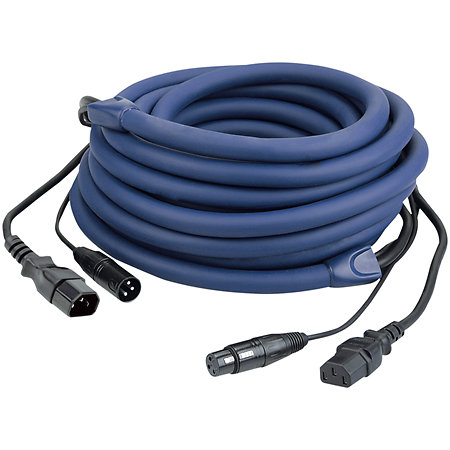

Dap - FP12 IEC / XLR 6 m
Dap - FP12 IEC / XLR 6 m
51,25 €
excl VAT
including eco-part : 0,05 €
In Stock
Usually ships within 4 days
+infos
Guarantee 3
years
REFERENCE : DAPFP12IECXLR6M
Anais
Louis
Do you need help?
Presentation
Designed for event professionals, this hybrid cable combines an IEC C14 male connector and an IEC C13 female connector for the power supply (3-pin), as well as a pair of 3-pin male/female DMX XLR connectors for transmitting lighting control data.
At 6 metres long, it offers ideal flexibility for connecting projectors, consoles or effects, while avoiding the need for multiple cables.
Its construction is based on high-quality copper conductors, resistant PVC insulation and twisted shielding to limit interference. The 110 Ω impedance and 60 pF/m capacitance guarantee stable DMX transmission without signal loss. Its 15 mm outer diameter makes it a sturdy cable, yet manoeuvrable enough to adapt to fast installations.
Beyond the technical aspects, the FP12 also saves time and space: fewer cables to pull means faster installation, easier storage and a cleaner stage.
At 6 metres long, it offers ideal flexibility for connecting projectors, consoles or effects, while avoiding the need for multiple cables.
Its construction is based on high-quality copper conductors, resistant PVC insulation and twisted shielding to limit interference. The 110 Ω impedance and 60 pF/m capacitance guarantee stable DMX transmission without signal loss. Its 15 mm outer diameter makes it a sturdy cable, yet manoeuvrable enough to adapt to fast installations.
Beyond the technical aspects, the FP12 also saves time and space: fewer cables to pull means faster installation, easier storage and a cleaner stage.
Features
Weight
1,40 kg
Length (m)
6
Color
Blue
Water & Dust Protection (IP rating)
IP 20
Connectors
IEC female, IEC male, null, null
Other features
-
DAP FP12 IEC / XLR 6 m
-
2 in 1 power and DMX three-pin XLR cable
-
Carries both power and control data
-
Operating voltage: 30 V
-
Impedance: 110 Ω
-
Connector 1: IEC C14 male
-
Connector 2: IEC C13 female
-
Number of pins (power): 3
-
DMX XLR 3-pin male connector
-
DMX XLR 3-pin female connector
-
Number of pins (audio): 3
-
Conductor resistance: 80 Ω/km
-
Conductor capacitance: 60 pF/m
-
Inner conductor / shield capacitance: 78 pF/m
-
Screen resistance: 30 Ω/km
-
Cable length: 6 m
-
External cable diameter: 15 mm
-
Outer insulation type: PVC
-
Conductor material: Copper
-
Protection 1: Twisted
-
Sheathing : Paper
-
Colour : Dark blue
-
Weight : 1,42 kg
