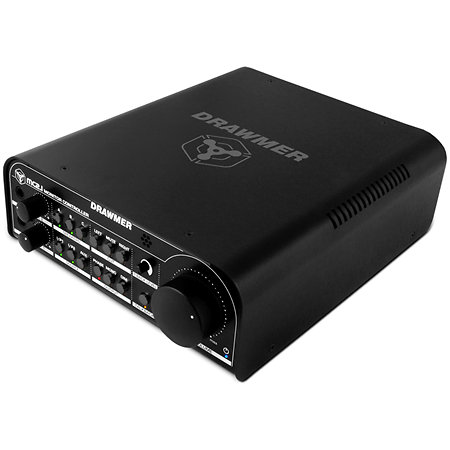

Drawmer - MC2.1 Monitor Controller
The Drawmer MC2.1 monitoring controller provides a central interface for organising studio monitoring with precision, elegance and consistency, connecting audio sources to various monitoring systems in a clear and organised manner that facilitates controlled sound engineering. Developed and manufactured in the UK, this unit features a design focused on fidelity, with an understated presence that reminds us that an audio control unit can also have character. It strikes a balance between technical precision, listening comfort and creativity, without turning the studio into a sterile laboratory.
Presentation

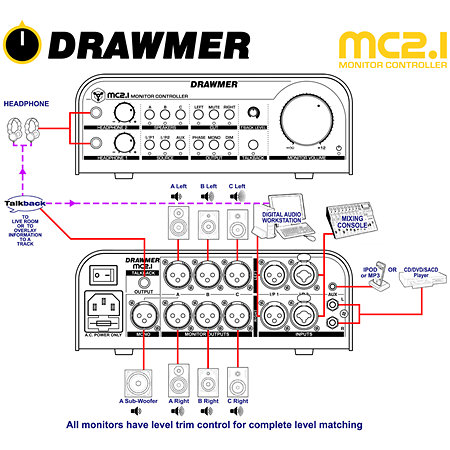

Its three stereo inputs and three stereo speaker outputs allow for the organisation of multiple listening set-ups, offering the flexibility required by studios seeking clear management of connected sources.
Drawmer provides a control tool designed to analyse audio signals systematically, thanks to mono, dim, mute, phase inversion and left/right cut functions. The two independent headphone amplifiers allow for separate management of personal monitoring, whilst the integrated talkback system facilitates communication between multiple users in a shared working environment.
The MC2.1’s active electronic design ensures a precise audio path, with a linear power supply featuring a low-noise toroidal transformer to minimise electrical interference. Each speaker output has dedicated controls, allowing for fine-tuning of levels between multiple monitoring systems used to compare different sound reproductions in the studio.
Features
Other features
-
Drawmer MC2.1
-
Studio device
-
3I3 preamp / monitor controller
-
Country of manufacture: United Kingdom
-
Design: ultra-low-noise & transparent circuitry
-
Headphone amplifiers with independent volume controls
-
Built-in talkback microphone with level control, mono jack output & headphone routing
-
Delayed relays to prevent power-on/off noise
-
Low-noise toroidal transformer with voltage selector
-

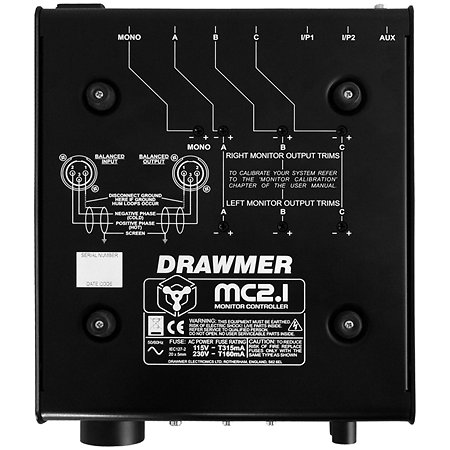

Controls: independent left/right trims on speaker outputs
-
Monitoring controls: mono, dim, mute, phase reversal, left/right mute
-
Potentiometers: quad-matched for precise stereo balance
-
Maximum output level before clipping: 26 dBu
-
THD + noise: 0.0014% @ 0 dBu, unity gain
-
Dynamic range: 118 dB @ unity gain
-
Frequency response: 20 Hz ⭢ 20 kHz
-
Adjacent-channel crosstalk: >95 dB
-
L/R crosstalk at 1 kHz: >85 dB
-
Maximum input level: 21 dBu
-
.
-

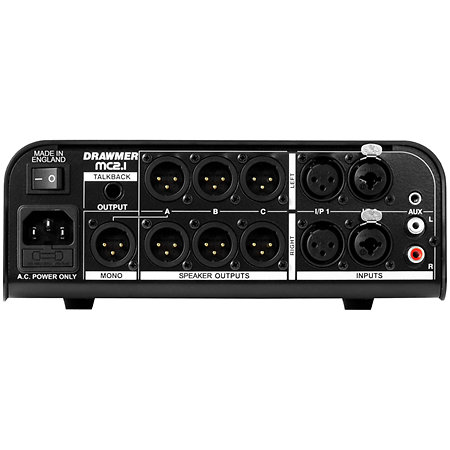

Connectors:
-
Inputs: 2x XLR/6.35 mm jack combo sockets + 2x XLR + 2x RCA + 3.5 mm TRS mini-jack
-
Speaker outputs: 3x 2 XLR
-
Sub output: XLR
-
Talkback output: ∅6.35 mm jack
-
Headphone outputs: 2x ∅3.5 mm TRS mini-jack
-
Power supply: 230 V ∿, 50 Hz, 20 VA
-
230 V fuse: T160 mA
-
Chassis: aluminium
-
Rack-mount kit sold separately
-
Dimensions: 272 x 215 x 81 mm
-
Weight: 2.5 kg
