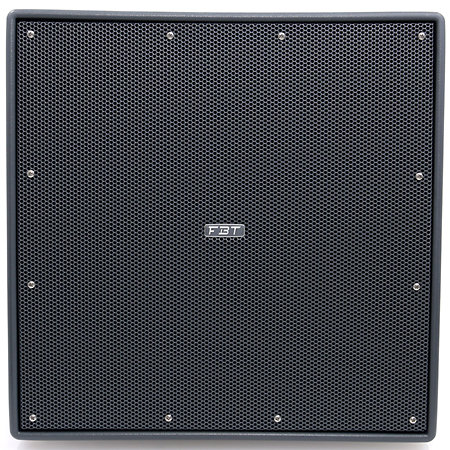

100V Public Address Speaker

Designed for demanding outdoor installations, the FBT Shadow 112CT/EN passive loudspeaker delivers wide, structured sound, even when the weather decides to test your patience insistently. Its 12-inch coaxial loudspeaker powers open spaces with energy and precision, whether in a park, a sports area or a lively public venue. With its robust design and controlled diffusion, it fits seamlessly into 100 V systems where regular sound is a constant priority.

ARTICLE N° 89419
With its 12" coaxial driver accompanied by a 1" tweeter, the FBT Shadow 112CT/EN ensures even reproduction across the entire frequency range without the need for complex adjustments all the time. You benefit from stable diffusion thanks to a 100° x 100° dispersion, which makes it easy to cover large areas without multiplying the diffusion points or complicating your overall installation.

The integrated 100 V line management allows you to easily adapt the power between 200 W and 100 W depending on the configuration chosen, giving you real freedom in the design of your audio network. The Shadow 112CT/EN is ideal for distributed installations where consistency of sound must be maintained, even when several loudspeakers are working together over long distances.

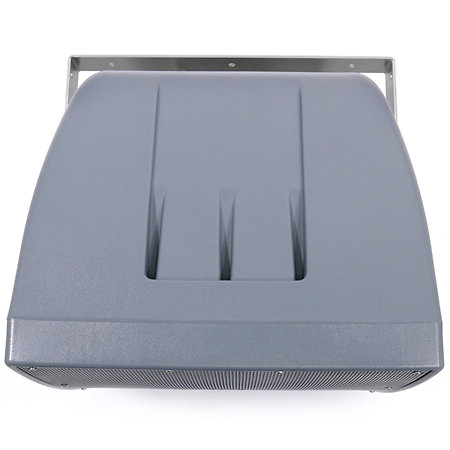

Thanks to a moulded polyethylene design treated against UV rays and classified as self-extinguishing 5VB, this FBT loudspeaker withstands outdoor stresses without weakening over the seasons. IP55 certification guarantees protection against humidity and splashes, which is reassuring when the installation is exposed continuously without close supervision or special shelter.

With a maximum level of 120 dB, the Shadow 112CT/EN delivers a solid sound pressure level that effectively covers open spaces, with no perceptible saturation under normal conditions of use. It's a natural in busy environments where clarity is essential, even when ambient noise is clearly trying to steal the show.

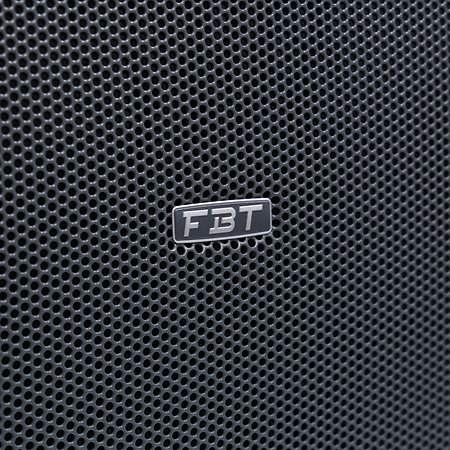

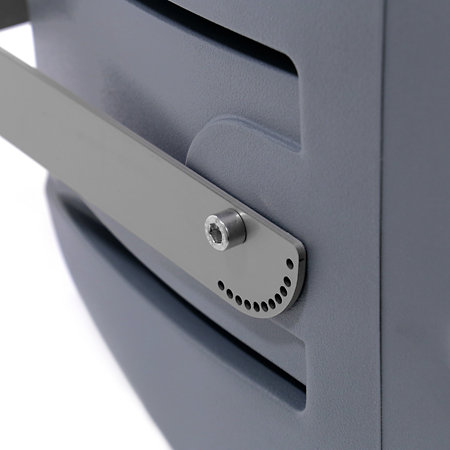

The stainless steel mounting system simplifies wall installation while guaranteeing a reliable hold over time, even in exposed conditions. The multi-layer grille provides effective protection for the internal components, so there are no nasty surprises when the weather or the environment decide to take part in the show uninvited.
  • FBT Install Shadow 112CT/EN
  • Passive speaker
  • Series : Shadow
  • Manufacturer reference : 41809
  • Use : outdoor installation
  • Certification : EN54-24
  • Protection rating : IP55
  • Configuration : 2 channels
  • Nominal impedance: 8 Ω
  • RMS power: 200 W
  • Peak power : 800 W
  • Transformer : 100 V / 200 W & 100 W
  • Recommended amplifier : 400 W RMS
  • Maximum SPL: 120 dB
  • Coaxial loudspeaker :
  • woofer: ∅304.8 mm (12") - 63.5 mm (2.5") coil
  • Tweeter: ∅25.4 mm (1") - 43.18 mm (1.7") voice coil
  • Frequency response: 68 Hz ⭢ 20 kHz
  • Dispersion: 100° x 100
  • Crossover frequency: 1.6 kHz
  • Sensitivity: 97.5 dB

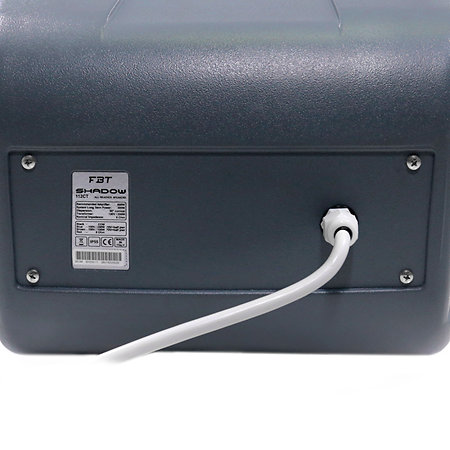

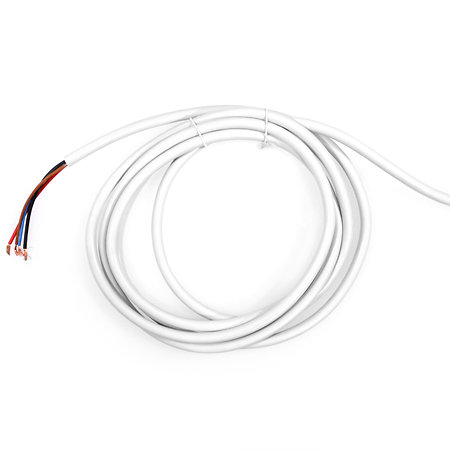

  • Input connector: 4-wire cable
  • Materials :
  • Moulded polyethylene UV-resistant self-extinguishing 5VB
  • 3-layer stainless steel grille
  • Colour: Black

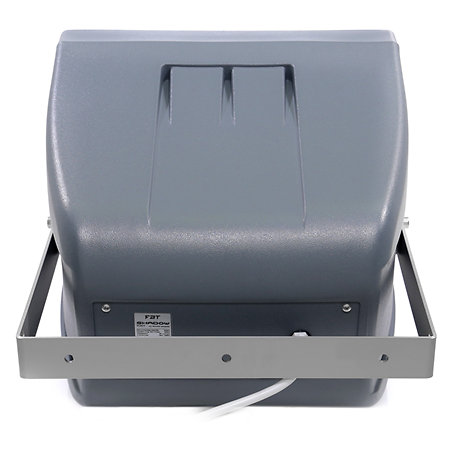

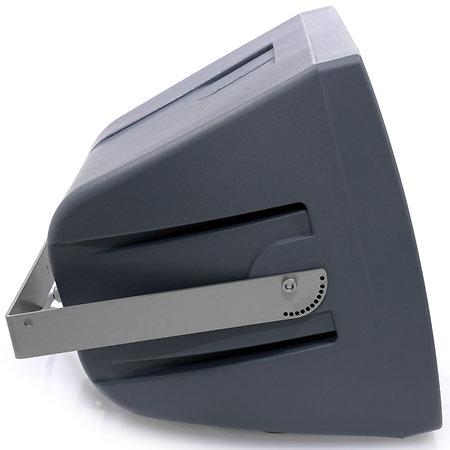

  • Stainless steel U-bracket included
  • Dimensions: 430 x 430 x 419 mm
  • Weight: 19.3 kg
You might consider using a suitable 100 V amplifier delivering around 400 W RMS in order to make full use of the broadcasting capabilities, while maintaining a comfortable margin for managing sound level variations.

You should also consider using a quality 4-conductor cable to make it easier to select the power levels available and to secure the connection over time, especially in environments where the installation is exposed to frequent climatic variations.
FBT Install - Shadow 112CT/EN
FBT Install - Shadow 112CT/EN
New
1 082,50 € excl VAT
including eco-part : 0,90 €
Out of stock
Contact us for delivery times
Guarantee 5  years
