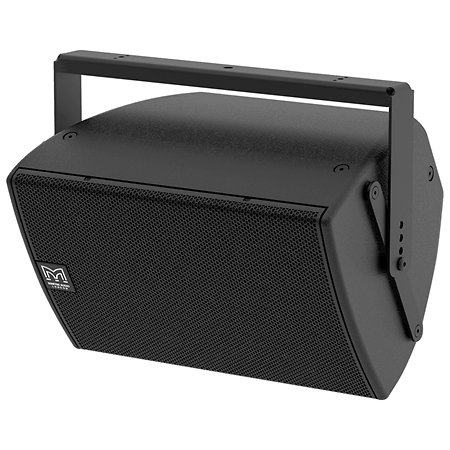

Martin Audio - CDD10TX Black (l'unité)
1 452,50 €
excl VAT
including eco-part : 0,90 €
Out of stock
Contact us for delivery times
Guarantee 3
years
100V Public Address Speaker
The Martin Audio CDD10TX Black loudspeaker delivers uniform and powerful sound coverage thanks to its coaxial differential dispersion technology. Its compact and robust design and mounting accessories allow for flexible installation, meeting the needs of public venues such as clubs, restaurants and cultural spaces.
ARTICLE N° 99543
Presentation
The Martin Audio CDD10TX Black is a compact two-way passive loudspeaker designed for fixed installations, which integrates a 70 V/100 V line transformer, offering multiple connection options for large-scale installations.
Thanks to its coaxial differential dispersion technology, the CDD10BTX guarantees uniform sound coverage, limiting frequency losses and allowing clear and precise reproduction, whatever the diffusion angle.
Equipped with a 10-inch mid-bass driver and a 1-inch fabric dome tweeter, the Martin Audio CDD10TX Black stands out for its ability to reproduce powerful bass and detailed treble, without distortion. Its ABS structure and black perforated steel grille with internal protection ensure great robustness in clubs, bars or cultural spaces.
Finally, the CDD10TX Black’s mounting flexibility, combined with discreet accessories and transducer rotation options, makes it a relevant choice for applications where acoustic quality must harmonize with design.
With its vertical or horizontal installation possibilities, it meets the needs of spaces with complex configurations. This speaker integrates perfectly with the Martin Audio iK41 and iK81 amplifiers for advanced acoustic optimization and total control of diffusion parameters, making it a choice for professionals.
Thanks to its coaxial differential dispersion technology, the CDD10BTX guarantees uniform sound coverage, limiting frequency losses and allowing clear and precise reproduction, whatever the diffusion angle.
Equipped with a 10-inch mid-bass driver and a 1-inch fabric dome tweeter, the Martin Audio CDD10TX Black stands out for its ability to reproduce powerful bass and detailed treble, without distortion. Its ABS structure and black perforated steel grille with internal protection ensure great robustness in clubs, bars or cultural spaces.
Finally, the CDD10TX Black’s mounting flexibility, combined with discreet accessories and transducer rotation options, makes it a relevant choice for applications where acoustic quality must harmonize with design.
With its vertical or horizontal installation possibilities, it meets the needs of spaces with complex configurations. This speaker integrates perfectly with the Martin Audio iK41 and iK81 amplifiers for advanced acoustic optimization and total control of diffusion parameters, making it a choice for professionals.
Other features
-
Martin Audio CDD10TX Black (each)
-
Compact 2-way passive 100V line array speaker
-
Coaxial differential dispersion technology
-
Frequency response: 65Hz - 20kHz
-
Mid-bass drivers: 10” with 2.5” voice coil, long excursion, ferrite driver
-
1” fabric dome tweeter and neodymium driver
-
Power rating: 250W RMS / 1000W peak
-
Recommended amplifiers: iK41, iK81
-
Sensitivity: 96dB
-
Max SPL: 117dB continuous, 123dB peak
-
Nominal impedance: 8 ohms
-
100V switch: 30W, 60W, 120W
-
70V switch: 15W, 30 W, 60 W, 120 W
-
Dispersion: 110°/75° horizontal, 60° vertical (user rotatable)
-
Crossover: 2 kHz passive
-
Enclosure: ABS, 28 litre volume
-
Protective grille: Black perforated steel with internal protective fabric
-
Connectors: Low profile, push-lock terminal block
-
Fixings: 6 x M8 inserts for wall/ceiling brackets, 10 x M8 inserts for suspension
-
Colour: Black
-
Dimensions: 513 x 323 x 310 mm
-
Weight: 16.90 kg
-
Accessories: CDDWB10/12B wall bracket (black), CDDY10B ceiling bracket (black)
