Flight ABS vide DIY

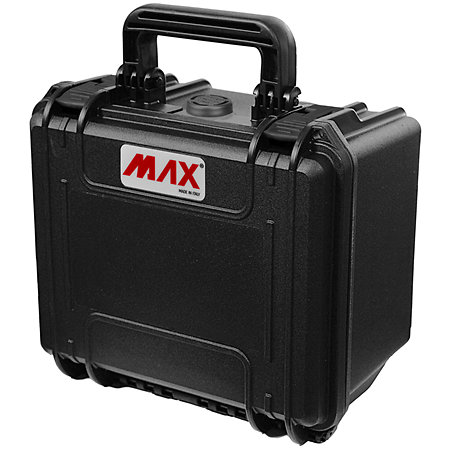

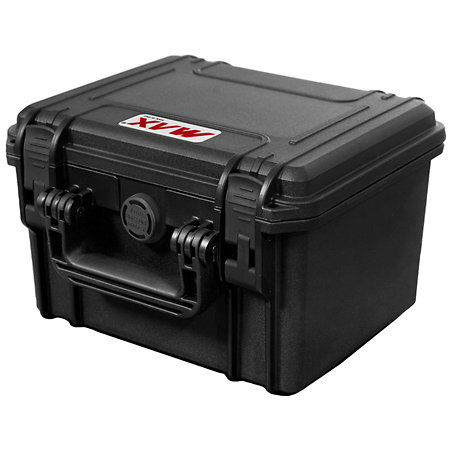

The Panaro MAX235H155 offers greater depth for transporting equipment requiring greater vertical volume. Its empty interior can be fitted with a layout adapted to the equipment used. Its IP67-certified waterproof construction effectively protects the contents against water, dust and the stresses of transport.

ARTICLE N° 119831
In the MAX series, the MAX235H155 stands out for its greater internal height, which means it can accommodate equipment requiring a little more space. This format retains a reasonable footprint while providing useful extra volume for certain technical equipment. Supplied without foam, the case allows you to organise the interior according to the real needs of the equipment being transported.

This modular approach means it can be fitted with custom foam, dividers or various accessories compatible with the MAX range. The MAX235H155 can be configured to carry several microphones, HF accessories, a compact controller, electronic equipment or technical tools. The space available also makes it possible to protect equipment that is slightly taller than that which can fit in more compact formats.

The body of the case is made from copolymer polypropylene, a material renowned for its strength and resistance to the mechanical stresses of frequent handling and movement. The IP67 waterproof rating protects the contents from dust and water splashes. STANAG 4280, DEF STAN 81-41 and MIL-STD 810 certifications confirm the design's suitability for exposed environments.

The MAX235H155 incorporates an automatic depressurisation valve on the front panel to equalise internal pressure in the event of variations in altitude or temperature. This makes it easy to open after transport, while preserving the effectiveness of the perimeter seal. Double-lever clasps ensure reliable closure, and the soft ergonomic handle improves grip.

The full-length hinge and corrosion-resistant nylon pins provide added durability. Padlock slots, a shoulder strap and an integrated stacking system complete a design that's perfect for regular technical travel.
Tipo de formato
 Small
Handles
 Yes
Length (mm)
 260
Width (mm)
 245 mm
Height (mm)
 167 mm
Weight
 1,0 kg
Interior length (mm)
 235 mm
Inner width
 180 mm
Interior depth (mm)
 156 mm
Material
 polypropylene
Packaging
 Single unit
Outer coating
 Polypropylene
Color
 Black
Water & Dust Protection (IP rating)
 IP67
  • PANARO MAX235H155
  • Waterproof shock-proof carrying case
  • Interior configuration: Empty, DIY modular
  • Body material: Copolymer polypropylene
  • Latch material: Nylon
  • Seal: Polymer O-ring
  • Automatic depressurisation valve
  • Double lever clasps
  • Soft ergonomic handle
  • Prepared for double padlock
  • Provision for shoulder strap
  • Integrated stacking system
  • Full-length hinge
  • Corrosion-resistant pins: Nylon
  • Capacity: 6.60 litres
  • Height bottom + lid: 25 + 131 mm
  • External dimensions: 258 x 243 x 167 mm
  • Inside dimensions: 235 x 180 x 156 mm
  • Weight: 1 kg
  • Waterproof certification: IP67
  • Compliance standards: STANAG 4280, DEF STAN 81-41, MIL-STD 810, ATA300 Cat. 1
Panaro - MAX235H155
Panaro - MAX235H155
35,83 € excl VAT
In Stock
Usually ships within 10 days
