Flight ABS with foam

The Panaro MAX380H160S is an ABS flight case with a foam interior that allows you to quickly prepare secure accommodation for the equipment you're transporting. Pre-cut cubes make it easy to adapt storage to the shape of the equipment. Its IP67-certified waterproof design provides effective protection against water, dust and impact.

ARTICLE N° 119837

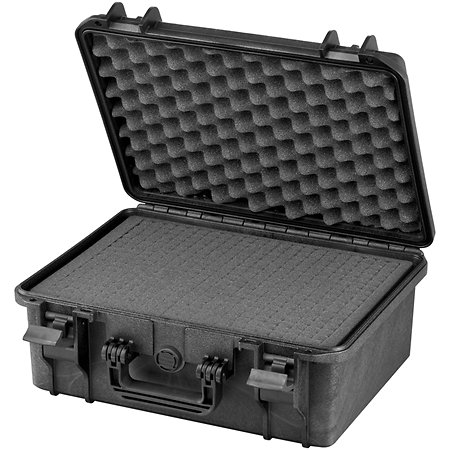

The MAX380H160S has the same dimensions as the MAX380H160, but the interior is already equipped to protect the equipment. This version comes with a set of foams that can be used to quickly create a layout adapted to the equipment being transported. The cube-shaped foam in the base can be easily removed to form compartments to suit the dimensions of the equipment, while the honeycomb foam in the lid provides additional support once the case is closed.

This configuration makes it possible to prepare functional storage without having to cut to size. The foam limits internal movement and helps to keep the equipment firmly in place during transport. The case can hold various items used in a technical or performance context, such as microphones, HF accessories, a compact controller, an audio interface, a laptop computer or various control room accessories.

The body of the case is made from copolymer polypropylene, a material renowned for its resistance to the mechanical stresses of repeated handling. The IP67 waterproof rating provides effective protection against dust and water splashes. STANAG 4280, DEF STAN 81-41, MIL-STD 810, ATA300 and UN4H2 certifications attest to the case's suitability for a wide range of operating environments.

The MAX380H160S also incorporates an automatic depressurisation valve on the front panel to equalise internal pressure in the event of variations in altitude or temperature. This feature makes it easy to open after transport, while preserving the effectiveness of the perimeter seal. The double-lever clasps ensure reliable closure, and the soft ergonomic handle enhances handling comfort.

The full-length hinge and corrosion-resistant nylon pins ensure durability. Padlock slots, a shoulder strap and an integrated stacking system complete a design suited to regular technical travel.
Tipo de formato
 Small
Handles
 Yes
Length (mm)
 415
Width (mm)
 345
Height (mm)
 175 mm
Weight
 2,4 kg
Interior length (mm)
 380 mm
Inner width
 270 mm
Interior depth (mm)
 160 mm
Material
 polypropylene
Padding material
 Pre-cut foam (Pick N Pluck)
Packaging
 Single unit
Outer coating
 Polypropylene
Color
 Black
Water & Dust Protection (IP rating)
 IP67
  • PANARO MAX380H160S
  • Shock-proof waterproof carrying case
  • Interior configuration: Cubic foam in base, honeycomb foam in lid
  • Body material: Polypropylene copolymer
  • Latch material: Nylon
  • Seal: Polymer O-ring
  • Automatic pressure relief valve
  • Double lever clasps
  • Soft ergonomic handle
  • Prepared for double padlock
  • Provision for shoulder strap
  • Integrated stacking system
  • Full-length hinge
  • Corrosion-resistant pins: Nylon
  • Capacity: 16.4 litres
  • Height base + lid: 36 + 124 mm
  • Exterior dimensions: 414 x 345 x 174 mm
  • Inside dimensions: 380 x 270 x 160 mm
  • Weight: 2.20 kg
  • Waterproof certification: IP67
  • Compliance standards: STANAG 4280, DEF STAN 81-41, MIL-STD 810, ATA300 Cat. 1, UN4H2
Panaro - MAX380H160S
Panaro - MAX380H160S
76,67 € excl VAT
In Stock
Usually ships within 10 days
