Flight ABS with foam

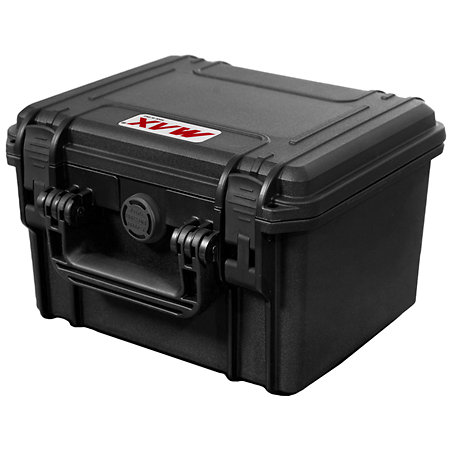

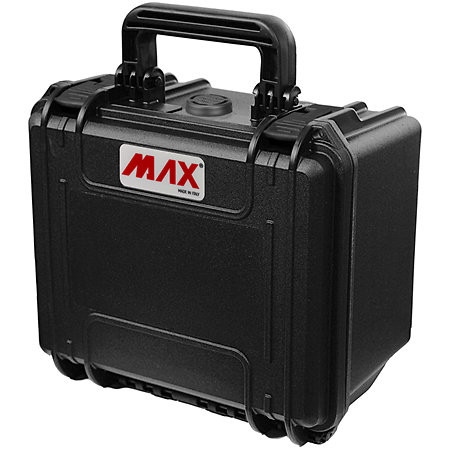

The Panaro MAX235H155S combines a compact format with an internal depth to accommodate equipment that requires more height. Its pre-cut foam interior makes it easy to create compartments to suit the equipment being transported. IP67 certification effectively protects the contents against humidity, dust and shocks associated with travel.

ARTICLE N° 119832

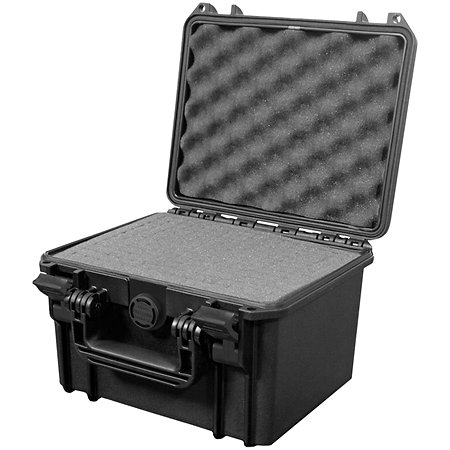

The MAX235H155S takes the dimensions of the MAX235H155 and adds a ready-to-use internal layout. This configuration includes foam cubes in the base and honeycomb foam in the lid, allowing the interior space to be quickly adjusted to suit the equipment to be transported. The foam cubes can be easily removed to create compartments adapted to the shape of the equipment.

This type of arrangement simplifies the preparation of equipment before it is transported. The foam provides effective support and limits internal movement during transport. The case can hold microphones, HF accessories, small electronic equipment, a compact controller or various tools used during a service or technical intervention.

The MAX235H155S is built around a body made of copolymer polypropylene, a material renowned for its strength and resistance to the mechanical stresses of repeated handling. Its IP67-certified waterproofing provides effective protection against dust and water splashes. STANAG 4280, DEF STAN 81-41 and MIL-STD 810 certifications attest to the design's suitability for exposed environments.

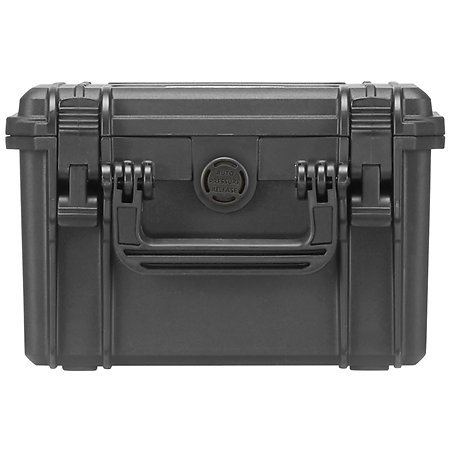

The case also features an automatic depressurisation valve on the front. This device balances the internal pressure when there are variations in altitude or temperature, and makes it easy to open after transport. The all-round seal ensures a continuous watertight seal, while the double-lever clasps guarantee reliable closure.

A full-length hinge and corrosion-resistant nylon pins add to the overall durability. Padlock slots, a predisposition for a shoulder strap and an integrated stacking system complete a design suited to regular technical travel.
Tipo de formato
 Small
Handles
 Yes
Length (mm)
 260
Width (mm)
 245 mm
Height (mm)
 167 mm
Weight
 1,1 kg
Interior length (mm)
 325 mm
Inner width
 180 mm
Interior depth (mm)
 156 mm
Material
 polypropylene
Padding material
 Pre-cut foam (Pick N Pluck)
Packaging
 Single unit
Outer coating
 Polypropylene
Color
 Black
Water & Dust Protection (IP rating)
 IP67
  • PANARO MAX235H155S
  • Shock-proof waterproof carrying case
  • Interior configuration: Cubic foam in base, honeycomb foam in lid
  • Body material: Polypropylene copolymer
  • Latch material: Nylon
  • Seal: Polymer O-ring
  • Automatic pressure relief valve
  • Double lever clasps
  • Soft ergonomic handle
  • Prepared for double padlock
  • Provision for shoulder strap
  • Integrated stacking system
  • Full-length hinge
  • Corrosion-resistant pins: Nylon
  • Capacity: 6.60 litres
  • Height bottom + lid: 25 + 131 mm
  • External dimensions: 258 x 243 x 167 mm
  • Inside dimensions: 235 x 180 x 156 mm
  • Weight: 1 kg
  • Waterproof certification: IP67
  • Compliance standards: STANAG 4280, DEF STAN 81-41, MIL-STD 810, ATA300 Cat. 1
Panaro - MAX235H155S
Panaro - MAX235H155S
45 € excl VAT
In Stock
Usually ships within 10 days
