Showgear - PowerCore 63.4c
1 075 €
excl VAT
including eco-part : 0,05 €
Resupply
Arrival expected on Sep 10, 2026
Guarantee 3
years
REFERENCE : SHOPOWERCORE634C
Anais
Louis
Do you need help?
Power Cable
The Showgear PowerCore 63.4c is a professional power distribution system designed for stage installations that require reliable selective protection and clear circuit management. Each output has its own 32 A RCBO, ensuring individual disconnection in the event of a fault while keeping the rest of the system operational. The 3.14" LCD display provides accurate readings of voltage, current and power, while MdbuS compatibility enables remote monitoring.
ARTICLE N° 115561
Presentation
The Showgear PowerCore 63.4c is designed to meet the needs of professional electrical installations that require security, stability and visibility over the entire network. Its structure is based on a simple but essential principle: each output has its own 32 A RCBO to guarantee selective protection. This means that if a fault is detected on one circuit, it is automatically disconnected without affecting the other lines, thereby limiting the risk of overall interruption during a service or event.
For rapid diagnosis, each circuit is fitted with an LED for instant identification of its status. A green LED indicates normal operation, while a red LED signals a problem requiring attention. The integrated 3.14" LCD screen displays a range of electrical information such as voltage, current, power and phase status, providing clear and rapid monitoring even in mobile control situations.
The PowerCore 63.4c can also be integrated into more advanced monitoring systems thanks to its MdbuS compatibility. This protocol enables effective remote control, useful for complex stage installations or environments requiring centralised supervision.

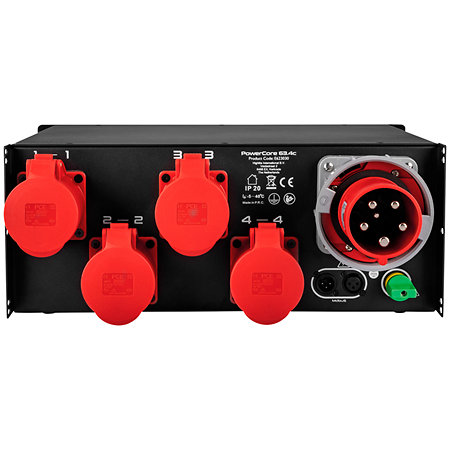

Built with a CNC-machined aluminium front panel and robust PCE connectors, it offers high mechanical strength and proven reliability. With its 19" 4U rack format, 63 A CEE5P input and 32 A CEE5P outputs, it is a durable solution for powering and protecting a range of professional equipment.
For rapid diagnosis, each circuit is fitted with an LED for instant identification of its status. A green LED indicates normal operation, while a red LED signals a problem requiring attention. The integrated 3.14" LCD screen displays a range of electrical information such as voltage, current, power and phase status, providing clear and rapid monitoring even in mobile control situations.
The PowerCore 63.4c can also be integrated into more advanced monitoring systems thanks to its MdbuS compatibility. This protocol enables effective remote control, useful for complex stage installations or environments requiring centralised supervision.
Built with a CNC-machined aluminium front panel and robust PCE connectors, it offers high mechanical strength and proven reliability. With its 19" 4U rack format, 63 A CEE5P input and 32 A CEE5P outputs, it is a durable solution for powering and protecting a range of professional equipment.
Features
Number of outputs
4
Weight
13,8 kg
Packaging
Single unit
Connectors
XLR female 3 pins, XLR male 3 pins, CEE 5P
Color
Black
Water & Dust Protection (IP rating)
IP 20
Other features
-
Showgear PowerCore 63.4c
-
Electrical distribution
-
Communication protocol: MdbuS
-
Display: LCD
-
Screen size: 3.14
-
Nominal voltage: 400 V
-
Power consumption: 7.5 W
-
Power supply type: AC 3-Phase + N + PE
-
Rated current: 63 A
-
Rated frequency: 50 Hz
-
Internal fuse: 1 A
-
Data IN connector: XLR 3P
-
Data OUT connector: XLR 3P
-
Power connector IN: CEE5P 63 A
-
Power connectors OUT: CEE5P 32 A
-
RCBO current: 32 A
-
Number of RCBO poles: 4
-
RCBO sensitivity: 30 mA
-
LED indicator: power status per circuit
-
Ground contact position: 6H
-
Max. operating temperature : 40 °C
-
Min operating temperature: -5 °C
-
19" rack: 4U
-
Dimensions: 483 x 411 x 183 mm
-
Weight : 13,8 kg
