HF Instruments System

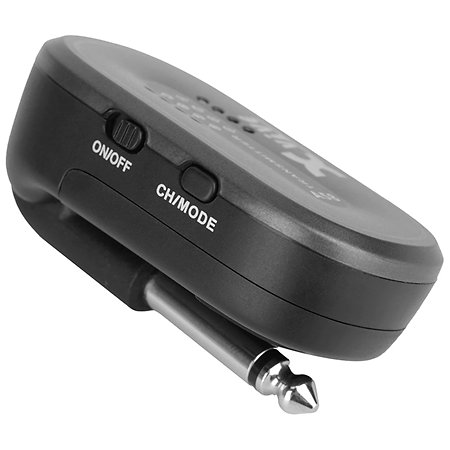

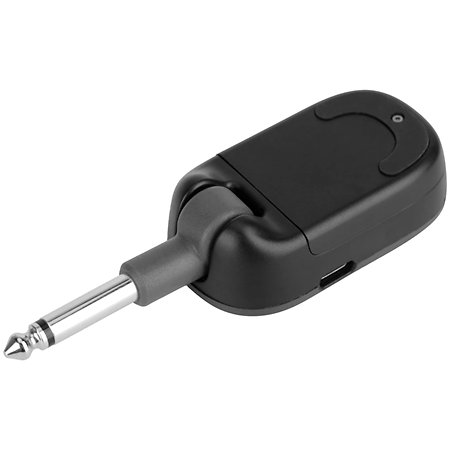

The Xvive A58T is a 5.8 GHz wireless transmitter for guitars, basses and instruments with 1/4" jack outputs. Compatible with the A58 and P58 systems, it offers 24-bit / 48 kHz audio transmission, minimum latency of 5 ms, up to 5 hours' battery life and a range of 30 metres.

ARTICLE N° 113122
The Xvive A58T is the dedicated transmitter for the A58 and P58 wireless systems, designed to give guitarists and bassists total freedom without compromising on sound quality. Using the 5.8 GHz band, it guarantees a stable, clear connection, even in environments where 2.4 GHz frequencies are saturated by other wireless devices.

Its audio design is based on high-resolution 24-bit / 48 kHz digital transmission, offering accurate reproduction of the instrument signal without coloration or loss of dynamic range. A signal-to-noise ratio of 110 dB and harmonic distortion of less than 0.1% ensure transparent reproduction, faithful to the nuances of playing and the personality of each instrument.

The A58T offers two operating modes, active and passive, to adapt to all types of microphones and instruments. In passive mode, it delivers a maximum level of 2.84 Vp-p, while the active mode, designed for instruments with powered pickups or high output levels, can handle up to 7.5 Vp-p, with an automatic -10 dB attenuation. This flexibility makes it an ideal companion for electric guitars, basses, keyboards or any other instrument using a standard 6.35 mm jack output.

The 5.8 GHz band, which is less congested than the 2.4 GHz band, allows simultaneous use of six channels without interference and a range of 30 metres (100 feet) in open field. Thanks to an ultra-low latency of 5 ms, you can play immediately, with no feeling of a time lag between gesture and sound.

The transmitter incorporates a rechargeable 780 mA lithium-ion battery providing up to 5 hours of autonomy. Recharging is simple via USB-C (5 V / 2 A) using the dual cable supplied. The open battery compartment design makes it easy to maintain and replace by a qualified technician, ensuring a long system life.
Transmission technology
 Digital
Diversity
 Yes
Selectable frequency
 Yes
Carrier frequencies
 5,8 GHz
Accessories included
 USB Cable
Connectors
 Jack male Mono
Power supply
 Rechargeable battery
Charging system
 Yes (provided)
Packaging
 Single unit
Components
 Transmitter
  • Xvive A58T
  • Wireless transmitter for guitars, basses and instruments with 6.35 mm jack output
  • Transmission type: 5.8 GHz ISM
  • Audio resolution: 24 bit / 48 kHz
  • Range: 30 m (100 ft) in open field
  • Available channels: 6 simultaneous
  • Frequency response: 20 Hz - 20 kHz (-3 dB)
  • Dynamic range: 110 dB
  • Signal-to-noise ratio : 110 dB
  • Total harmonic distortion: 0.1
  • Latency: 5 ms
  • Modes: Active / Passive
  • Maximum level: Passive 2.84 Vp-p / Active 7.5 Vp-p (-10 dB)
  • Input impedance: 1 MΩ
  • Output impedance: 470 Ω
  • RF power : 25 mW E.I.R.P. max
  • RF sensitivity: -90 dBm
  • Operating temperature: 0°C to 45°C
  • Built-in battery: Li-ion 3.8 V / 780 mA
  • Operating time: up to 5 hours
  • Charging time: 2.5 hours
  • Charging voltage/current: 5 V / 2 A
  • Connector: 6.35 mm (1/4") TS jack
  • Compatible with Xvive A58 and P58 systems
  • Supplied accessories: dual USB-C cable, carrying case
  • Dimensions: 65 × 37 × 28 mm
  • Weight: 88 g
