Xvive - U45 Black - Système Complet
New
265,83 €
excl VAT
In Stock
Usually ships within 5 days
+infos
Guarantee 2
years
Ear Monitor System
The Xvive U45 Black Complete System is a 5.8 GHz True Diversity wireless ear monitor system offering a stable connection up to 30 metres, 24-bit / 48 kHz sound, less than 5 ms latency and automatic selection of the best channel for reliable monitoring both live and in the studio.
ARTICLE N° 121086
Presentation
The Xvive U45 Black Complete System is designed to meet the needs of wireless monitoring in live, studio or rehearsal environments. By exploiting the 5.8 GHz frequency band, this system limits the risks of interference often encountered with 2.4 GHz equipment, enabling stable transmission to be maintained even in busy RF environments.

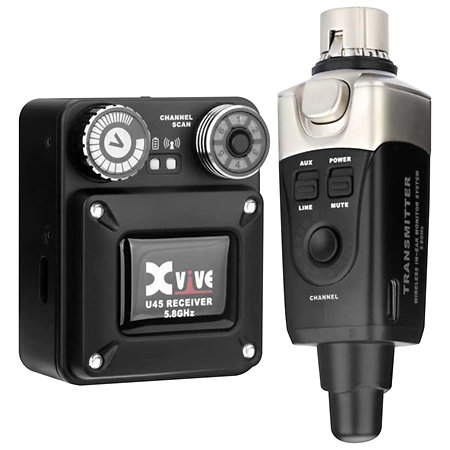

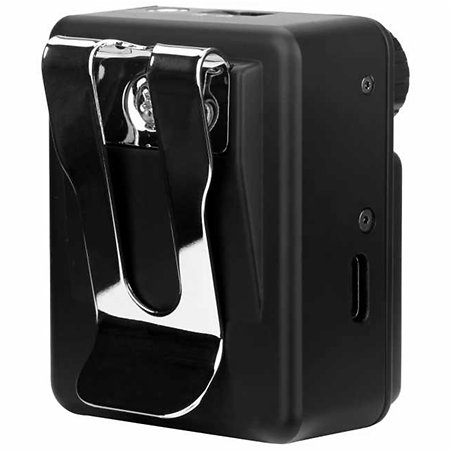

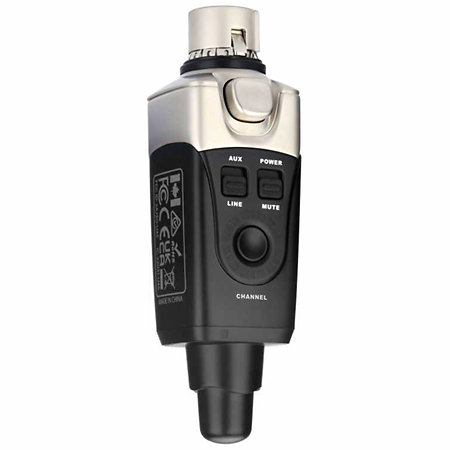

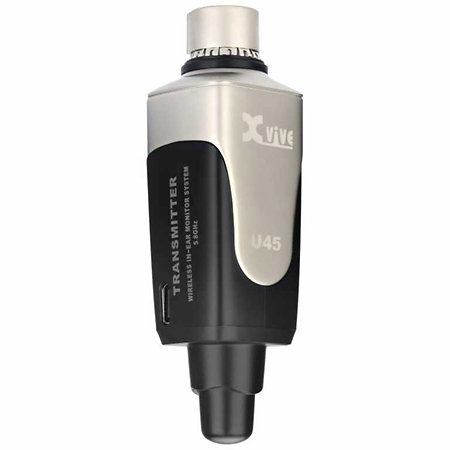

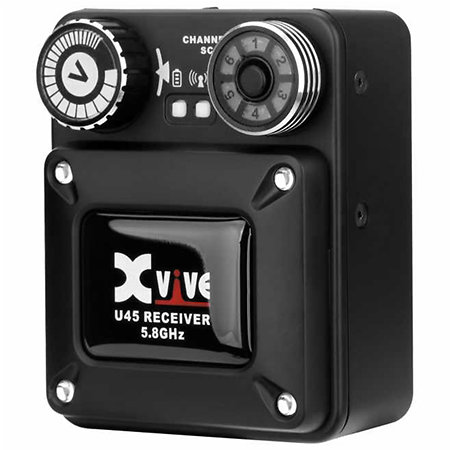

The system is based on a beltpack transmitter and receiver. The transmitter connects directly to an audio source, such as a mixing console or interface, while the receiver allows headphones or in-ear monitors to be powered via a mini-jack output. This simple configuration makes it easy to set up quickly, without the need for complex set-up.
Audio quality is guaranteed by 24-bit / 48 kHz processing, with a frequency response extended from 20 Hz to 20 kHz. Latency remains below 5 ms, allowing comfortable use for monitoring without any feeling of time lag. Noise levels are kept under control, with a dynamic range suited to professional applications.
The system offers 6 selectable channels, with an automatic scan function to quickly identify the most stable channel available. Up to 6 systems can be used simultaneously in the same environment, making it suitable for multi-user configurations.
An integrated lithium-ion battery provides up to 5 hours' autonomy. The system is recharged via USB, and can be used while charging. The compact, lightweight format makes it easy to transport and integrate into existing set-ups.
The U45 can also be used in a variety of contexts, such as broadcasting audio to several receivers, group communication or monitoring in mobile sound recording situations.
The system is based on a beltpack transmitter and receiver. The transmitter connects directly to an audio source, such as a mixing console or interface, while the receiver allows headphones or in-ear monitors to be powered via a mini-jack output. This simple configuration makes it easy to set up quickly, without the need for complex set-up.
Audio quality is guaranteed by 24-bit / 48 kHz processing, with a frequency response extended from 20 Hz to 20 kHz. Latency remains below 5 ms, allowing comfortable use for monitoring without any feeling of time lag. Noise levels are kept under control, with a dynamic range suited to professional applications.
The system offers 6 selectable channels, with an automatic scan function to quickly identify the most stable channel available. Up to 6 systems can be used simultaneously in the same environment, making it suitable for multi-user configurations.
An integrated lithium-ion battery provides up to 5 hours' autonomy. The system is recharged via USB, and can be used while charging. The compact, lightweight format makes it easy to transport and integrate into existing set-ups.
The U45 can also be used in a variety of contexts, such as broadcasting audio to several receivers, group communication or monitoring in mobile sound recording situations.
Features
Carrier frequencies
5,8 GHz
Mono / stereo
Mono and stereo
Type of transmission
Uhf
Selectable frequency
Yes
Number of ways
2
Frequency response, low limit
20 Hz
Frequency response, upper limit
20 kHz
Connectors
Mini Jack female stereo, XLR female 3 pins
Case or cover included
Gigbag
Other features
-
Xvive U45 Complete System Black
-
Digital HF In-Ear Monitoring System
-
Frequency: 5.8 GHz (worldwide ISM band)
-
Number of channels: 6 switchable, 6 simultaneous systems possible
-
Audio quality: 24-bit / 48 kHz
-
Frequency response: 20 Hz - 20 kHz (-3 dB)
-
Dynamic range: 110 dB
-
Signal-to-noise ratio : 110 dB
-
Total harmonic distortion: 0.2
-
Latency: < 5 ms
-
Operating range: 30 m / 100 ft (open field)
-
Transmission: True Diversity, 5.8 GHz less subject to interference
-
Mode: Mono
-
Power supply: internal rechargeable lithium-ion battery
-
Operating time: 5 hours
-
Charging time: 2.5 hours (usable while charging)
-
Power supply: 5 V DC via USB
-
Accessories included: USB charging cable, jack/XLR adapter, mounting brackets
-
Transmitter connector: XLR or 6.35 mm jack (adapter included)
-
Transmitter dimensions: 100 x 30 x 28 mm
-
Transmitter weight: 90 g
-
Receiver connector: 3.5 mm (1/8") headphone output
-
Finish: Black
-
Receiver dimensions: 60 x 47 x 41 mm
-
Receiver weight: 118 g
