Ear Monitor System

The Xvive U45R2 doubles the freedom: a single transmitter, two 5.8 GHz HF receivers, clear, stable and synchronised listening for musicians and technicians.

ARTICLE N° 112989
The Xvive U45R2 builds on the foundations of the U45 system, but takes them one step further with a dual receiver pack that allows two users to share the same audio source without any loss of quality or stability. Designed for musicians, sound engineers and content creators, this 5.8 GHz wireless ear-monitoring system combines performance and practicality in a compact, robust format.

One of the main advantages of the U45R2 is its 5.8 GHz True Diversity transmission, which is far less congested than the 2.4 GHz band often used by consumer systems. This means a stable connection for up to 30 metres, with no interference or drop-outs. This frequency band also ensures cleaner, clearer sound that is better isolated from Wi-Fi and Bluetooth interference.

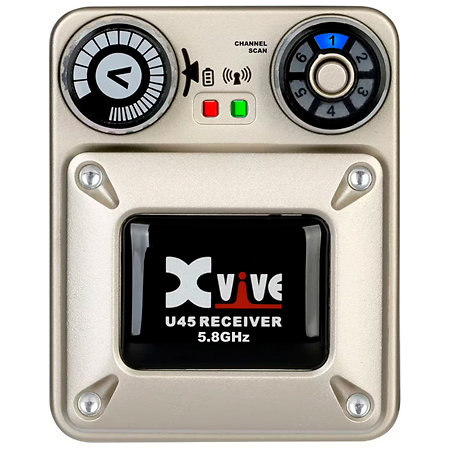

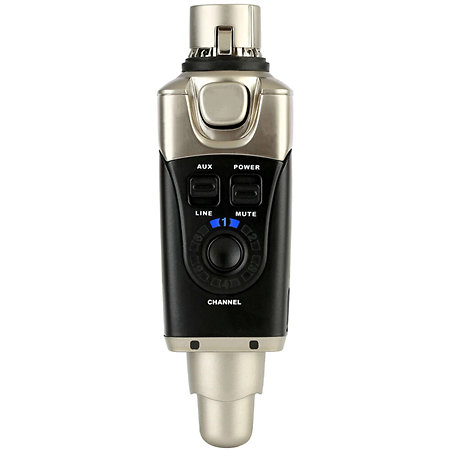

The system consists of a U45T transmitter and two U45R beltpack receivers. Each of the receivers can receive the same audio stream, allowing two musicians to share the same monitoring source, or an engineer and a performer to monitor the same mix simultaneously. It's a cost-effective and elegant solution for stage set-ups, duo recordings or video shoots requiring shared monitoring.

In terms of sound, the U45R2 delivers 24-bit / 48 kHz audio quality, with a latency of less than 5 ms and an extended frequency response from 20 Hz to 20 kHz. The result is a natural, dynamic listening experience, faithful to the original source, perfectly suited to both professional in-ear monitors and conventional headphones. Its 110 dB signal-to-noise ratio ensures clear reproduction, even in high-volume environments.

The receivers and transmitter are powered by an integrated lithium-ion battery providing around 5 hours of autonomy. They are easily recharged via USB using the dual cable supplied, enabling several units to be powered simultaneously. Compact, silent and easy to use, the U45R2 fits in easily with any stage or studio setup.
Carrier frequencies
 5,8 GHz
Mono / stereo
 Mono and stereo
Type of transmission
 Uhf
Selectable frequency
 Yes
Number of ways
 2
Frequency response, low limit
 20 Hz
Frequency response, upper limit
 20 kHz
Connectors
 Mini Jack female stereo, XLR female 3 pins
Case or cover included
 Gigbag
  • Xvive U45R2 Dual Receiver System
  • Digital HF In-Ear Monitoring System
  • Frequency: 5.8 GHz (worldwide ISM band)
  • Number of channels: 6 switchable, 6 simultaneous systems possible
  • Audio quality: 24-bit / 48 kHz
  • Frequency response: 20 Hz - 20 kHz (-3 dB)
  • Dynamic range: 110 dB
  • Signal-to-noise ratio : 110 dB
  • Total harmonic distortion: 0.2
  • Latency: < 5 ms
  • Operating range: 30 m / 100 ft (open field)
  • Transmission: True Diversity, 5.8 GHz less subject to interference
  • Mode: Mono
  • Power supply: internal rechargeable lithium-ion battery
  • Operating time: 5 hours
  • Charging time: 2.5 hours (usable while charging)
  • Power supply: 5 V DC via USB
  • Accessories included: USB charging cable, jack/XLR adapter, mounting brackets
  • Transmitter connector: XLR or 6.35 mm jack (adapter included)
  • Transmitter dimensions: 100 x 30 x 28 mm
  • Transmitter weight: 90 g
  • Receiver connector: 3.5 mm (1/8") headphone output
  • Receiver dimensions: 60 x 47 x 41 mm
  • Receiver weight: 118 g
Xvive - U45R2 - Système Double Récepteur
Xvive - U45R2 - Système Double Récepteur
324,17 € excl VAT
including eco-part : 0,07 €
In Stock
Usually ships within 5 days
+infos
Guarantee 3  years
