Bose Professional - ArenaMatch AM40/100 DeltaQ
4 400 €
excl VAT
including eco-part : 0,90 €
In Stock
Usually ships within 3 days
+infos
Guarantee 3
years
Jessie
Louis
Do you need help?
Line Array

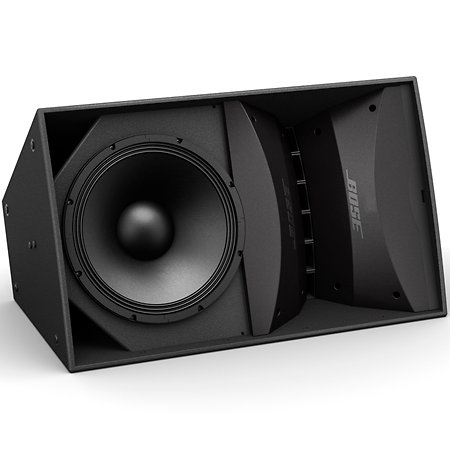

The Bose Professional ArenaMatch AM40/100 is a passive line array speaker designed for exposed outdoor environments. Designed to withstand the elements, this bi-amplifiable loudspeaker provides sound coverage for large, complex areas, while delivering accurate, long-range reproduction. Thanks to DeltaQ technology and interchangeable waveguides, the ArenaMatch AM40/100 is extremely flexible and adaptable to any venue. Robust, powerful and optimised for vocal clarity, it can be used in stadiums and arenas without the need for a rain jacket.
ARTICLE N° 105139
Presentation
The ArenaMatch AM40/100 from Bose Professional stands out for its DeltaQ technology, which doesn't pretend to be clever. Here, each interchangeable waveguide adjusts the horizontal coverage to suit you (or the venue), reducing the number of speakers you need to hang without sacrificing clarity. Are you setting up a system for a stadium? An outdoor sports centre? This enclosure will get by with fewer modules, and therefore less gymnastics on the scaffolding. It's a bit like having a technical team that never grumbles.
The charm of the ArenaMatch AM40/100 also lies in its not-so-lovely size, with a 356 mm driver and six neodymium tweeters to deliver a robust and perfectly intelligible sound, even when the crowd is screaming as if they've just spotted a star.
Do you like your installations to go off without a hitch? Then the ArenaMatch AM40/100 has your back in mind too. It can be fitted with Bose Professional accessories or integrated into a custom network using M12 threaded inserts.
The power of the ArenaMatch AM40/100 is finely calibrated with 70/100V transformer capability, ControlSpace presets, and a maximum SPL of 125dB - meaning you're free to rock the stands without losing your speech in the echo. Designed to last, this loudspeaker is a reliable ally for venues that don't experience seasonal lulls. Once installed, it is forgotten (but not its impact). Your listeners may not be able to see where the sound is coming from, but they'll have no trouble understanding what they're hearing.
The charm of the ArenaMatch AM40/100 also lies in its not-so-lovely size, with a 356 mm driver and six neodymium tweeters to deliver a robust and perfectly intelligible sound, even when the crowd is screaming as if they've just spotted a star.
Do you like your installations to go off without a hitch? Then the ArenaMatch AM40/100 has your back in mind too. It can be fitted with Bose Professional accessories or integrated into a custom network using M12 threaded inserts.
The power of the ArenaMatch AM40/100 is finely calibrated with 70/100V transformer capability, ControlSpace presets, and a maximum SPL of 125dB - meaning you're free to rock the stands without losing your speech in the echo. Designed to last, this loudspeaker is a reliable ally for venues that don't experience seasonal lulls. Once installed, it is forgotten (but not its impact). Your listeners may not be able to see where the sound is coming from, but they'll have no trouble understanding what they're hearing.
Other features
-
Bose Professional ArenaMatch AM40/100
-
Line Array Speaker
-
Series: ArenaMatch
-
Manufacturer reference: 794042-8880
-
Passive 2-way bi-amplifiable speaker system
-
Colour: black
-
Usage : Outdoor
-
Applications : Stadiums, arenas, outdoor entertainment centres
-
Certification: EN 54-24: 2008
-
Protection rating: IP55 / IP33C
-
Nominal impedance: 8 Ω
-
Peak power: 3000 W
-
Continuous power: 750 W
-
Peak power (LF / HF) : 2400 W / 600 W
-
Continuous power (LF / HF) : 600 W / 150 W
-
70V transformer: 100, 200, 400 W
-
100V transformer: 200, 400 W
-
Sensitivity: 96 dB
-
Max SPL: 125 dB
-

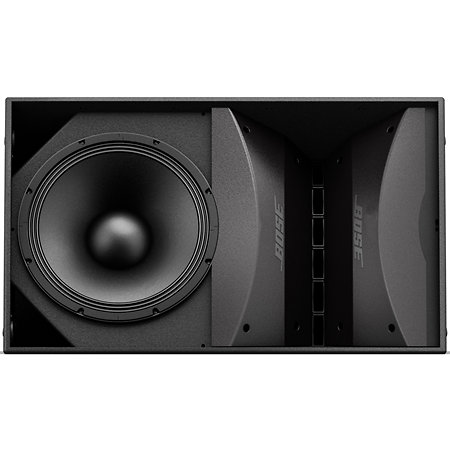

Driver: ∅356 mm (14"), neodymium magnet, coil ∅102 mm (4")
-
Tweeter: 6x ∅51 mm (2") neodymium magnet, EMB2S titanium cone
-
Crossover: 950 Hz internal passive or external dual-amp
-
Recommended signal processing : ControlSpace presets Designer software
-
Frequency response: 55 Hz ⭢ 18 kHz
-
Directivity: H100° × V40° nominal
-
DeltaQ technology: Interchangeable waveguides for H60°, H80°, H100° (sold separately)
-

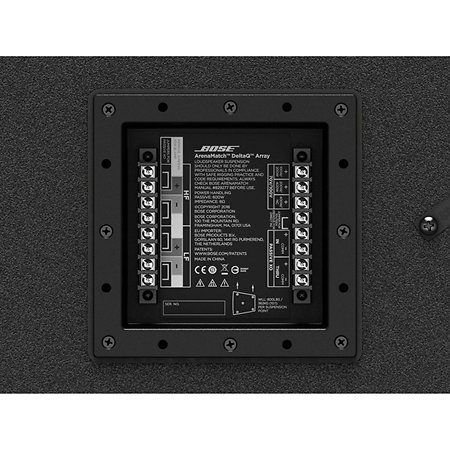

Connectors: Terminal blocks
-
Protective cover for connectors supplied
-
M12 threaded inserts, compatible with Bose Professional accessories
-
Enclosure material: Birch plywood
-
Grille: Stainless steel + acoustic foam + stainless steel mesh
-
Coating: Polyurethane Polyurethane
-
Dimensions: 783 x 489 x 400 mm
-
Net weight: 34.9 kg
To find out more...

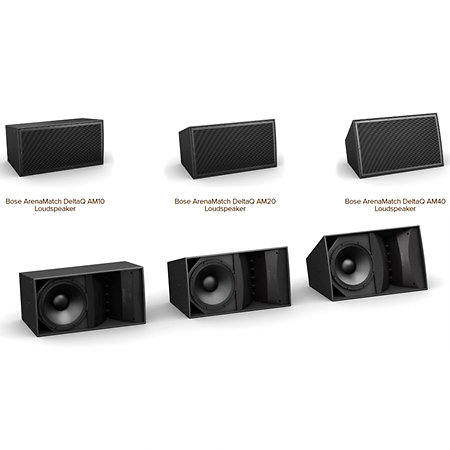

The ArenaMatch AM40/100 works hand in hand with ArenaMatch Utility loudspeakers to cover the shadows, PowerMatch amps to keep pace, and ControlSpace DSP processors to keep frequencies under control. A winning combo, even when the weather's playing diva.
