Bose Professional - DesignMax DM6C Black (la paire)
This product is no longer available for sale
These models in stock may be of interest to you:
100V Public Address Speaker

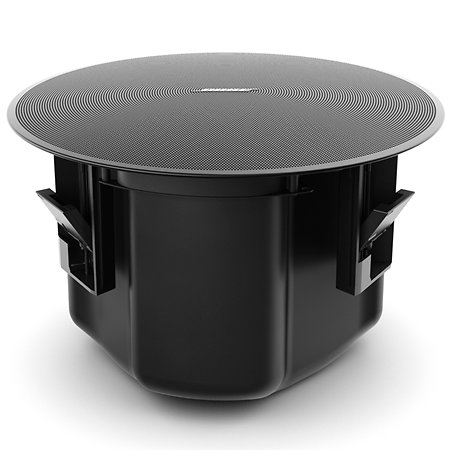

The pair of Bose Professional DesignMax DM6C Black in-ceiling speakers transform your ceiling into a serious sound source. Designed for fixed installations, these 2-way coaxial speakers combine a 165 mm driver with a 32 mm tweeter in a sober, robust shell. With their 125W RMS power and unobtrusive design, they are discreet yet imposing.
ARTICLE N° 96344
Presentation

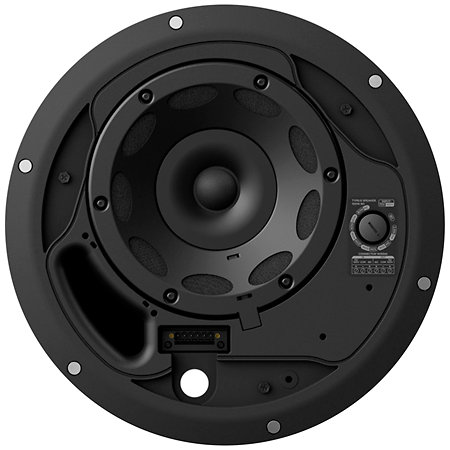

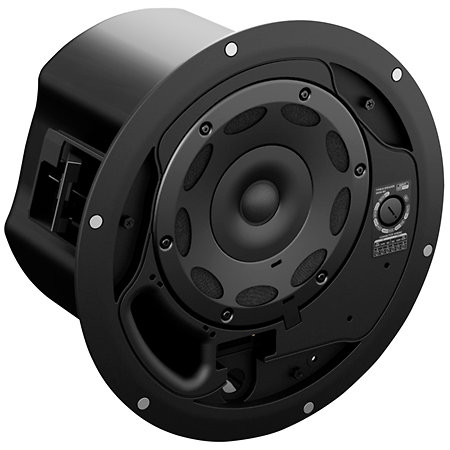

Are you looking for even, clear sound in every corner of a room? The DesignMax DM6C from Bose Professional plays this card with conviction, thanks in particular to its dispersion alignment system. Listening to it, the balance is clear: deep bass, clear treble, even without correction. The ∅165 mm woofer and ∅32 mm tweeter work as a duo, set to a passive crossover at 1.7 kHz. The whole thing sits discreetly in the ceiling, but never goes unnoticed by the ear.
Let's talk about installation. There's no cold sweat on the ceiling and no swearing in the false ceiling: the QuickHold system eliminates the need for building site acrobatics. It's just a screwdriver away. The DesignMax DM6C also comes with a bracket and cutting guide - handy when you don't want to turn your ceiling into a Swiss cheese. And to top it all off, the audio connection is made from the front: simple, quick and neat.
This Bose Professional DesignMax DM6C isn't a solitary star: it's part of a family of 12 models of varying sizes. This makes it possible to adapt sound diffusion to very different spaces, from a small café to a conference centre. Whether at home or in a chic hotel, the DM6C's sober aesthetic in matt black RAL 9005 always makes a good impression, without clashing with the decor.
Let's talk about installation. There's no cold sweat on the ceiling and no swearing in the false ceiling: the QuickHold system eliminates the need for building site acrobatics. It's just a screwdriver away. The DesignMax DM6C also comes with a bracket and cutting guide - handy when you don't want to turn your ceiling into a Swiss cheese. And to top it all off, the audio connection is made from the front: simple, quick and neat.
This Bose Professional DesignMax DM6C isn't a solitary star: it's part of a family of 12 models of varying sizes. This makes it possible to adapt sound diffusion to very different spaces, from a small café to a conference centre. Whether at home or in a chic hotel, the DM6C's sober aesthetic in matt black RAL 9005 always makes a good impression, without clashing with the decor.
Other features
-
Bose Professional DesignMax DM6C Black
-
In-ceiling speaker
-
Sold in pairs
-
Manufacturer Part Number: 829679-0120
-
Public Adress / 70/100 V line
-

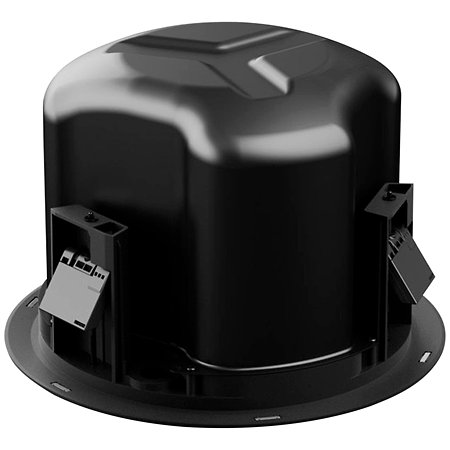

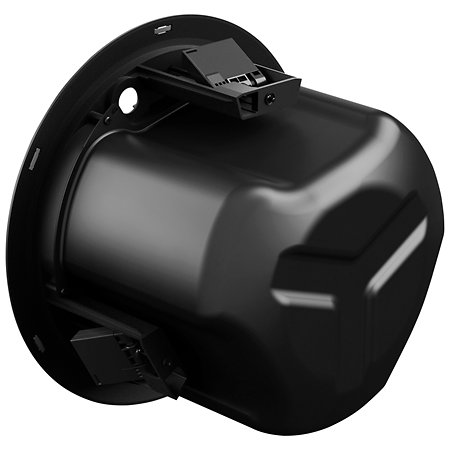

Easy installation with QuickHold mounting arms
-
2-way coaxial design
-
Woofer: ∅6.5" (165 mm)
-
Tweeter: ∅1.25" (32 mm)
-
Impedance: 8 Ohm
-
RMS power: 125 W
-
Peak power : 500 W
-
Line power 100V : 5, 10, 20, 40, 80 W, Bypass
-
Line power 70V: 2.5, 5, 10, 20, 40, 80 W, Bypass
-
Frequency response: 59 Hz to 20 kHz
-
Cross Over: 1.7 kHz (passive 2-way)
-
Dispersion: 125° cone
-
Max SPL: 109 dB
-
SPL Peak: 115 dB
-
Sensitivity: 88 dB
-
Connections: EuroBlock terminal block
-
Materials : Technical resin, UV resistant
-
Recommended high-pass protection: 60 Hz with 24 dB/octave crossover
-
Suitable for restaurants, hotels, bars or shops
-

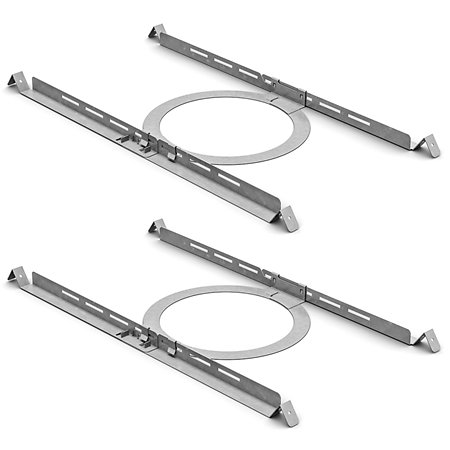

Supplied with: Installation bracket, cutting guide
-
Maximum ceiling thickness: 57 mm
-
Cut-out: ∅292 mm
-
Dimensions/piece: ∅287 × 239 mm
-
Colour : black (RAL 9005)
-
Weight/piece : 6.5 kg
To find out more...
If you want to take precision a step further, you can pair these speakers with a Bose amplifier equipped with a DSP: this activates the manufacturer's EQ and SmartBass processing for even greater coherence, even at low volume.
