Martin Audio - SXC118 Black
4 500 €
excl VAT
Out of stock
Contact us for delivery times
Guarantee 3
years
Jessie
Louis
Do you need help?
Subwoofer
Martin Audio's SXC118 Black is a compact cardioid subwoofer with an 18" front driver and a 14" rear driver. Its design provides rear rejection of up to 28 dB at 75 Hz, reducing unwanted bass behind the stage. With its high power handling and accurate response, it provides controlled bass for both touring and fixed installations.
ARTICLE N° 120803
Presentation

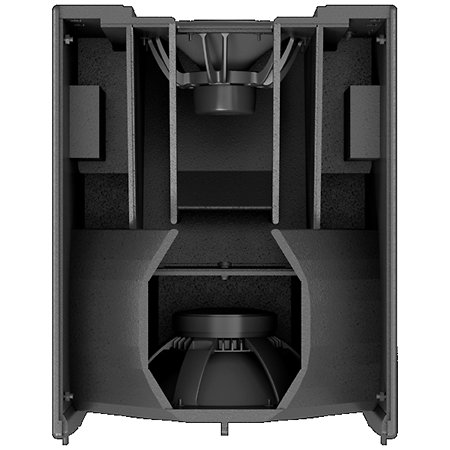

The Martin Audio SXC118 Black is a compact cardioid subwoofer designed to offer precise control of low frequencies in the most demanding environments. Its design incorporates two independent drivers: a front-firing 18" and a rear-firing 14", each fed by a separate amplifier channel. This architecture generates a cardioid dispersion pattern, maximising forward energy while significantly reducing unwanted bass behind the cabinet.
With rear rejection of up to 28dB at 75Hz, the SXC118 effectively limits vibrations on stage, around turntables or against walls, improving the clarity and impact of the overall system. Its frequency response of 43 Hz to 150 Hz and maximum SPL of 140 dB ensure powerful, controlled bass, suitable for both concerts and fixed installations.
Constructed from robust plywood with a textured black finish, it combines durability with professional aesthetics. Nesting skids make stacking easy, while the M20 insert allows pole mounting with WPM or WPS speakers. Integrated handles and castor options make transport convenient, and accessories such as the protective cover and waterproofing kit extend its range of uses.
The SXC118 Black is therefore an ideal solution for contractors and installers looking for a compact, powerful subwoofer capable of effectively controlling low-frequency dispersion.
With rear rejection of up to 28dB at 75Hz, the SXC118 effectively limits vibrations on stage, around turntables or against walls, improving the clarity and impact of the overall system. Its frequency response of 43 Hz to 150 Hz and maximum SPL of 140 dB ensure powerful, controlled bass, suitable for both concerts and fixed installations.
Constructed from robust plywood with a textured black finish, it combines durability with professional aesthetics. Nesting skids make stacking easy, while the M20 insert allows pole mounting with WPM or WPS speakers. Integrated handles and castor options make transport convenient, and accessories such as the protective cover and waterproofing kit extend its range of uses.
The SXC118 Black is therefore an ideal solution for contractors and installers looking for a compact, powerful subwoofer capable of effectively controlling low-frequency dispersion.
Other features
-
Martin Audio SXC118 Black
-
Passive cardioid subwoofer
-
Speakers :
-
1 x 18" (460 mm) front, 4" coil, ferrite
-
1 x 14" (356 mm) rear, 3.5" neodymium coil
-
Long excursion, sealed diaphragms
-
Audio performance :
-
Frequency response: 43 Hz - 150 Hz (±3 dB), 34 Hz (-10 dB)
-
Max SPL: 140 dB peak
-
Sensitivity: 104 dB
-
Directionality: cardioid
-
Rear Rejection: up to 28 dB at 75 Hz
-
Power handling :
-
18": 1000 W AES / 4000 W peak
-
14": 800 W AES / 3200 W peak
-
Amplifier: iKON iK42 (optimised dedicated DSP)
-
Connections :
-
2 x NL4
-
Assignment :
-
18" : +1 / -1
-
14" : +2 / -2
-
Applications / Recommended uses :
-
Live sound (concerts, tours)
-
Fixed installations: concert halls, clubs, event venues
-
Theatre and stage productions
-
Corporate and audiovisual events
-
Acoustically complex spaces (high reverberation)
-
Outdoor bars, restaurants and hotels
-
Public spaces: lobbies, theme parks, high-traffic areas
-
Construction :
-
Material: birch and poplar plywood
-
Finish: textured black paint
-
Grille: black HEX perforated steel
-
Ergonomics and assembly :
-
4 carrying handles
-
16 M10 attachment points
-
M8 inserts for castors (optional)
-
M20 base for mast
-
Stackable glides
-

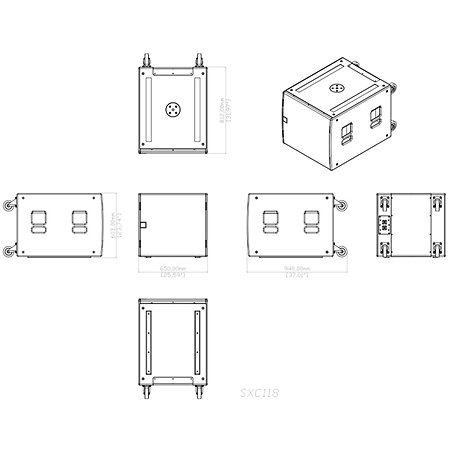

Dimensions: 650 x 603 x 812 mm (940 mm with castors)
-
Weight: 69 kg
To find out more...
Always combine the SXC118 with the iKON iK42 amplifier to take full advantage of its cardioid capabilities.
For optimum performance, position it in a stack or flown configuration depending on the acoustics of the room and the desired bass direction.
For optimum performance, position it in a stack or flown configuration depending on the acoustics of the room and the desired bass direction.
