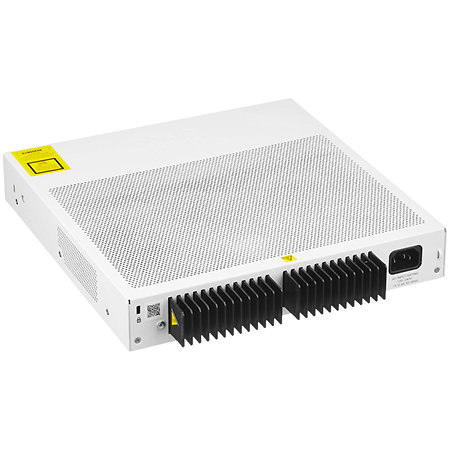

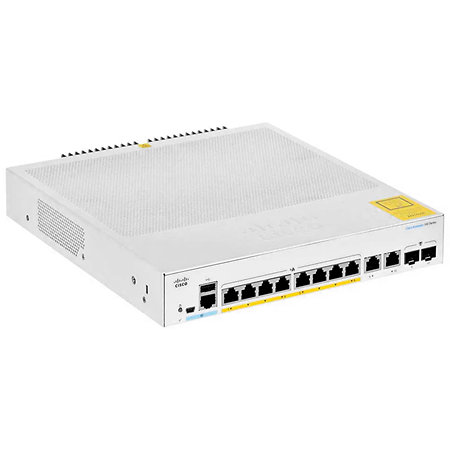

MuxLab - 500995 - Switch 8 ports Gigabit POE préconfiguré (CBS350-8P-E-2G)
1 155 €
excl VAT
Out of stock
Contact us for delivery times
Guarantee 3
years
Anais
Tristan
Do you need help?
Computer and accessories
The MuxLab 500995 is a Cisco CBS350-8P-E-2G switch preconfigured for MuxLab Video over IP systems. It makes it easy to network AV over IP transmitters, receivers and controllers with PoE power.
ARTICLE N° 122367
Presentation
The MuxLab 500995 is based on a Cisco CBS350-8P-E-2G switch already prepared for the brand's Video over IP solutions. The advantage is simple: you don't start with a generic network switch that has to be manually adjusted before it can be used in an audiovisual installation.
Its 8 Gigabit PoE ports enable compatible equipment to be connected, carrying both network data and power. For an AV over IP system, this reduces the number of separate power supplies and simplifies the organisation of a rack or technical point.
The switch also has 2 Gigabit copper/SFP combo ports. These connectors offer greater flexibility for connecting to the main network, adding a fibre link or integrating the switch into a larger architecture.
The Cisco Business 350 Series provides advanced management functions that are useful in an AV environment: VLAN, QoS, IGMP, network security, supervision and administration via a web interface. These functions are important for the correct management of video streams, especially when several transmitters and receivers coexist on the same network.
The 500995 is designed for MuxLab Video over IP installations that require a stable network base, already configured for audiovisual use. It may be suitable for a meeting room, a display system, a small multi-screen distribution system or a structured AV installation.
Its 8 Gigabit PoE ports enable compatible equipment to be connected, carrying both network data and power. For an AV over IP system, this reduces the number of separate power supplies and simplifies the organisation of a rack or technical point.
The switch also has 2 Gigabit copper/SFP combo ports. These connectors offer greater flexibility for connecting to the main network, adding a fibre link or integrating the switch into a larger architecture.
The Cisco Business 350 Series provides advanced management functions that are useful in an AV environment: VLAN, QoS, IGMP, network security, supervision and administration via a web interface. These functions are important for the correct management of video streams, especially when several transmitters and receivers coexist on the same network.
The 500995 is designed for MuxLab Video over IP installations that require a stable network base, already configured for audiovisual use. It may be suitable for a meeting room, a display system, a small multi-screen distribution system or a structured AV installation.
Other features
-
MuxLab 500995
-
Cisco CBS350-8P-E-2G preconfigured switch for MuxLab Video over IP solutions
-
Product type: Gigabit PoE manageable switch
-
Cisco model: CBS350-8P-E-2G
-
Total number of system ports: 10 Gigabit Ethernet ports
-
RJ45 ports: 8 Gigabit Ethernet 10/100/1000 ports
-
Combo ports: 2 Gigabit copper/SFP combo ports
-
PoE power: 8 PoE/PoE+ compatible ports
-
Total PoE budget: 60 W
-
Switching capacity: 20 Gbps
-
Transfer rate: 14.88 Mpps
-
Network management: web interface, Cisco Business Dashboard, Cisco Business mobile application, SNMP, CLI
-
Network functions: VLAN, QoS, IGMP Snooping, IPv4 routing, IPv6 routing, ACL, port mirroring, DHCP, RADIUS, advanced security
-
Compatibility: MuxLab Video over IP solutions
-
Pre-configuration: settings adapted to MuxLab AV over IP systems
-
Power supply: external power supply 100-240 V, 50/60 Hz
-
System power consumption: 13.84 W at 110 V, 14.31 W at 220 V
-
Power consumption with PoE: 80.79 W at 110 V, 80.86 W at 220 V
-
Heat dissipation: 275.91 BTU/h
-
Flash memory: 256 MB
-
DRAM memory: 512 MB
-
Processor: ARM 800 MHz
-
Packet buffer: 1.5 MB
-
Format: rackable
-
Cooling: fanless
-
Operating temperature : -5 to 50°C
-
Storage temperature: -25 to 70°C
-
Operating humidity: 10% to 90%, non-condensing
-
Certifications : UL, CSA, CE, FCC Class A
-
Scope of delivery: Cisco Business 350 switch, power supply, mounting kit, quick start guide
-
Dimensions: 268 x 185 x 44 mm
-
Weight: 1.530 kg
