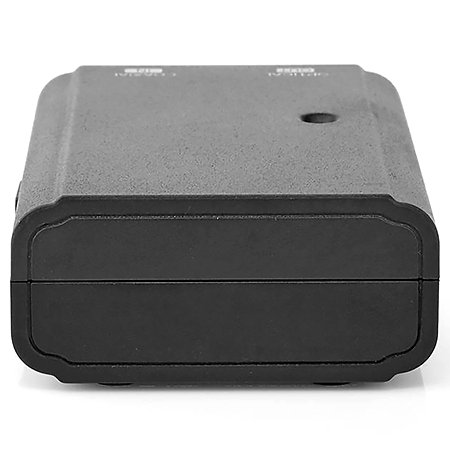

Nedis - ACON2505BK - Convertisseur S/PDIF vers Toslink
13,08 €
excl VAT
Out of stock
Contact us for delivery times
Guarantee 3
years
Anais
Tristan
Do you need help?
A / D D / A
Nedis ACON2505BK digital audio converter for converting an RCA coaxial S/PDIF signal to an optical TosLink output, ideal for connecting digital sources to optical audio equipment.
ARTICLE N° 118331
Presentation
The Nedis ACON2505BK is a digital audio converter designed to meet specific compatibility requirements between equipment using different digital connections. It transforms an RCA coaxial S/PDIF digital audio signal into an optical TosLink signal, offering a simple and effective solution for connecting a Blu-ray player, games console or other digital device to an amplifier or receiver equipped exclusively with optical inputs.
This model works in one-way conversion, guaranteeing clear, stable signal transmission without superfluous processing. The audio remains in the digital domain all the way to the destination device, limiting losses and preserving the quality of the original stream. The converter supports a wide range of digital audio formats, including PCM, Dolby Digital and DTS up to 5.1, with sampling frequencies of up to 192 kHz at 24 bits.

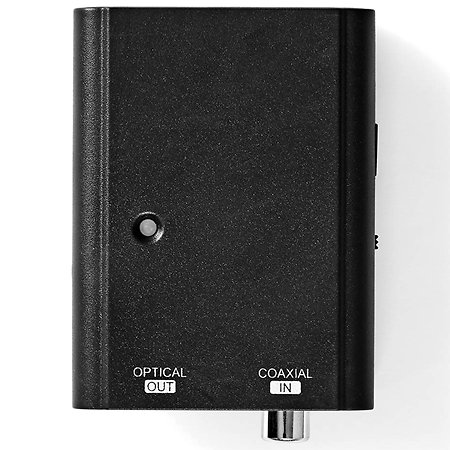

Its compact ABS casing makes it easy to integrate into existing AV installations, including tight spaces behind TV cabinets or media racks. Power supply via USB 5 V ensures great flexibility of use, while the manual switch makes it easy to control operation. An LED indicator on the front panel provides an immediate visual indication of power status.
This makes the ACON2505BK a reliable solution for adapting coaxial digital sources to optical systems, without complexity or advanced tuning.
This model works in one-way conversion, guaranteeing clear, stable signal transmission without superfluous processing. The audio remains in the digital domain all the way to the destination device, limiting losses and preserving the quality of the original stream. The converter supports a wide range of digital audio formats, including PCM, Dolby Digital and DTS up to 5.1, with sampling frequencies of up to 192 kHz at 24 bits.
Its compact ABS casing makes it easy to integrate into existing AV installations, including tight spaces behind TV cabinets or media racks. Power supply via USB 5 V ensures great flexibility of use, while the manual switch makes it easy to control operation. An LED indicator on the front panel provides an immediate visual indication of power status.
This makes the ACON2505BK a reliable solution for adapting coaxial digital sources to optical systems, without complexity or advanced tuning.
Features
Maximum resolution
24 bit
Number of channels
2
Weight
80 g
Power supply
Power adapter (sold separately)
Packaging
Single unit
Connectors
TosLink, null
Other features
-
Nedis ACON2505BK
-
Digital audio converter
-
Conversion type: S/PDIF coaxial RCA to TosLink optical
-
Audio formats supported : PCM, Dolby Digital, Dolby Digital 5.1, DTS, DTS 5.1, AAC, MPEG-2
-
Supported sampling frequencies: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
-
Maximum audio resolution: 24 bits
-

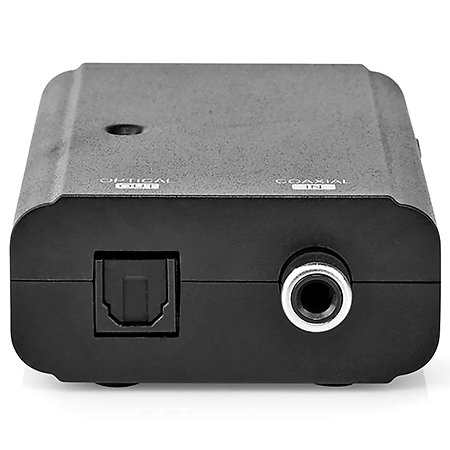

Audio input: 1 x S/PDIF coaxial RCA
-
Audio output: 1 x TosLink optical female
-
Data transfer direction: Unidirectional digital conversion
-
Digital signal amplification: Yes
-

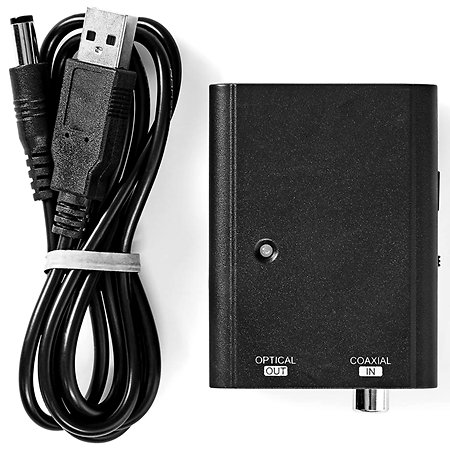

Power supply: USB 5 V DC
-
Input current: 0.6 A
-
Operating power consumption: 1.0 W
-
Standby power consumption: 0.5 W
-
Operating indicator : LED
-

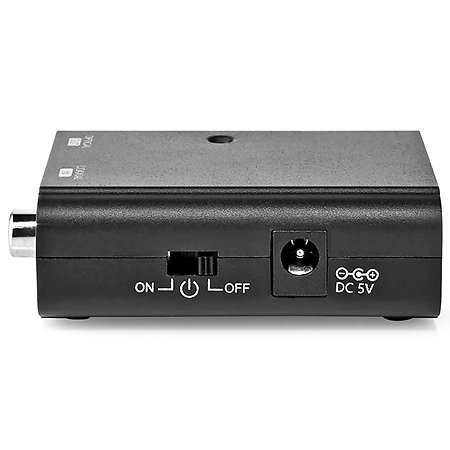

Control: Manual switch
-
Housing material: ABS
-
Colour: Black
-
Length of power cable: 1.80 m
-
Number of pieces in packaging: 1
-
Dimensions: 22 x 72 x 50 mm
-
Weight: 72 g
