Flight ABS with foam

The Panaro MAX820S has a foam interior for easy organisation of the equipment carried. The pre-cut cubes can be removed to adapt the compartments to the shape of the equipment. This large-capacity format makes it easy to transport a complete set of equipment in a single case.

ARTICLE N° 119986
The MAX820S takes the generous dimensions of the MAX820 model and adds a foam interior designed to effectively protect the equipment being transported. This configuration makes it possible to quickly prepare a storage solution adapted to different types of technical equipment without having to resort to custom manufacturing.

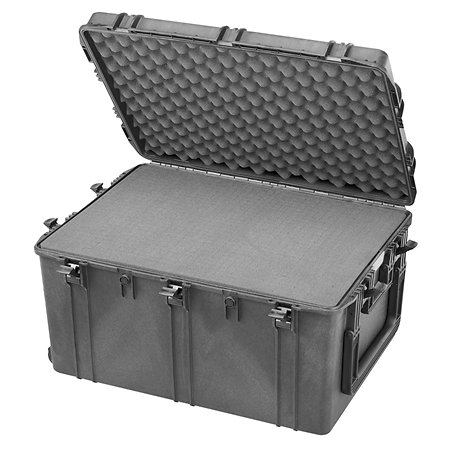

The cube-shaped foam in the base can be adjusted simply by removing the necessary blocks to create slots that match the dimensions of the equipment. This approach makes it easier to organise the contents and keeps each item in its own dedicated compartment. Honeycomb foam is also integrated into the lid to stabilise the unit when the case is closed.

With an internal capacity of over 220 litres, the MAX820S can accommodate particularly bulky equipment or several technical items in a single transport space. This format is often used to move lighting projectors, audiovisual systems, control consoles, IT equipment, filming equipment and accessories used in technical installations.

The structure of the case is based on a copolymer polypropylene shell. This material is widely used in professional cases for its resistance to impact and the mechanical stresses of repeated handling. IP67 certification ensures effective protection against dust infiltration and exposure to water.

The MAX820S is also equipped with an automatic pressure relief valve to equalise internal pressure in the event of changes in altitude or temperature. Double-lever clasps keep the lid reliably closed, while the ergonomic, soft-coated handle improves grip.
Tipo de formato
 Large
Wheels
 Yes
Handles
 Yes
Trolley handle
 Retractable
Length (mm)
 880 mm
Width (mm)
 660 mm
Height (mm)
 485 mm
Weight
 18,4 kg
Interior length (mm)
 820 mm
Inner width
 600 mm
Interior depth (mm)
 450 mm
Material
 polypropylene
Padding material
 Pre-cut foam (Pick N Pluck)
Packaging
 Single unit
Outer coating
 Polypropylene
Color
 Black
Water & Dust Protection (IP rating)
 IP67
  • PANARO MAX820S
  • Shock-proof waterproof carrying case
  • Interior configuration: Cubic foam in bottom, honeycomb foam in lid
  • Body material: Polypropylene copolymer
  • Latch material: Nylon
  • Seal: Polymer O-ring
  • Automatic pressure relief valve
  • Double lever clasps
  • Soft ergonomic handle
  • Prepared for double padlock
  • Provision for shoulder strap
  • Integrated stacking system
  • Full-length hinge
  • Corrosion-resistant axles: Nylon
  • Wheels with stainless steel axles
  • Capacity: 221.4 litres
  • Height base + lid: 70 + 380 mm
  • External dimensions: 880 x 660 x 483 mm
  • Inside dimensions : 820 x 600 x 450 mm
  • Weight: 14.78 kg
  • Waterproof certification: IP67
  • Compliance standards: STANAG 4280, DEF STAN 81-41, MIL-STD 810, ATA300 Cat. 1
Panaro - MAX820S
Panaro - MAX820S
New
700 € excl VAT
In Stock
Usually ships within 10 days
