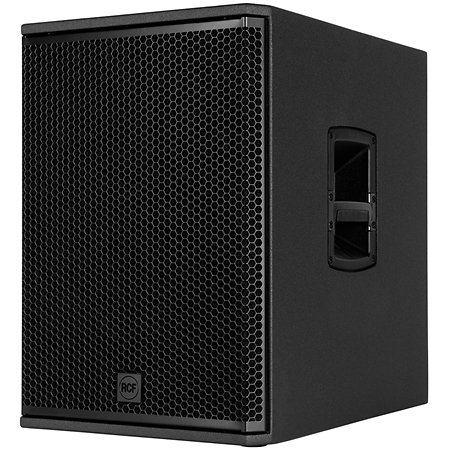

RCF - SUB 15-AS
The RCF SUB 15-AS active subwoofer, properly installed at the heart of a complete system, will deliver a deep, full and controlled sound, designed to support every groove without ever weighing it down. The bass sinks with authority, remains legible, and retains a clear articulation even when the volume rises sharply. The bass breathes and hits with a precision that gives depth to kicks, density to synth lines and a solid foundation to live performances. The SUB 15-AS transforms listening into a coherent, almost physical foundation of sound that will make you smile when the floor starts to vibrate just right.
Presentation

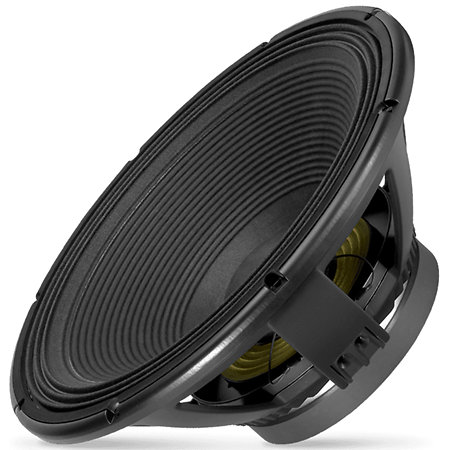

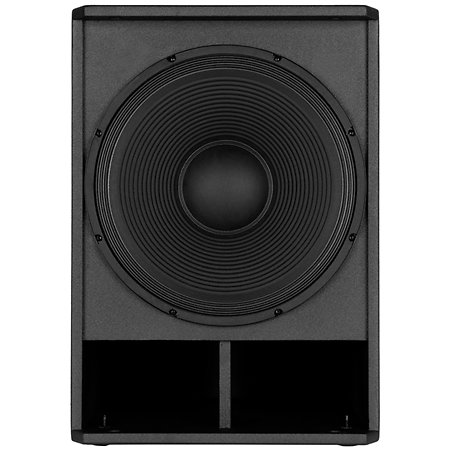

Thanks to its 15-inch driver with 3-inch voice coil, this RCF subwoofer develops a balanced low-frequency response, capable of accompanying 8, 10 or 12-inch speakers without unbalancing the whole system.
The 2200 W Class D amplification built into the SUB 15-AS ensures a rapid attack and a comfortable dynamic reserve, while limiting overheating during prolonged use, a real plus when performances go on for several hours.
The Bass Motion Control treatment developed by the RCF teams acts directly on the excursion of the loudspeaker, enabling the subwoofer to reproduce the lowest bass frequencies with great stability, without distorting the phase or crushing the signal, even at sustained levels.

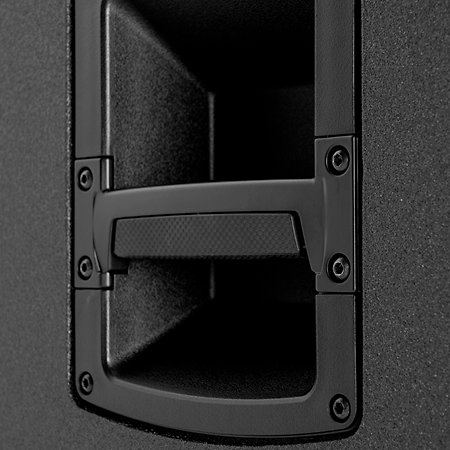

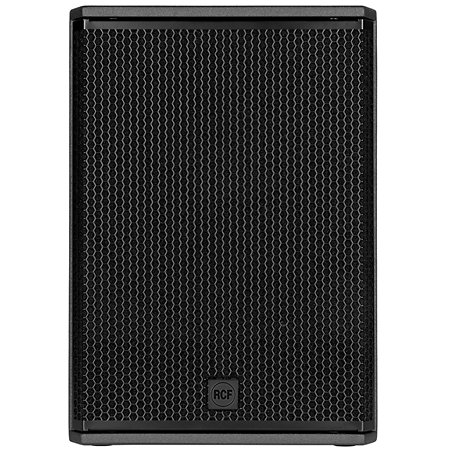

The reinforced wooden cabinet, covered in resistant polyurethane, gives the SUB 15-AS real endurance for touring, while maintaining consistent acoustic behaviour. Ergonomic handles, multiple speaker mast sockets and a protective front grille make it easy to set up in a variety of ways - front-facing, stacked or in more creative configurations - without turning set-up into an impromptu workout.
Other features
-
RCF SUB 15-AS
-
Active PA subwoofer
-
Series : RCF Portable
-
Amplification : Class D
-
Power : 2200 W Peak
-
Max SPL : 133 dB
-
Driver: 15" (390 mm), 3.0" (76 mm) voice coil
-
Frequency response: 35 Hz ⭢ 400 Hz
-
Audio signal processed via DSP, with Bass Motion Control (BMC)
-
Limiter: Soft Limiter
-

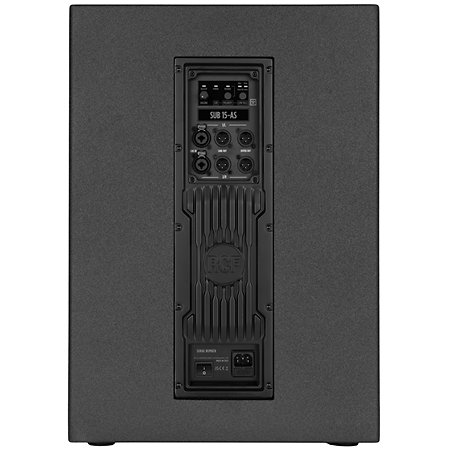

Controls: Volume, Polarity, low-pass filter frequency
-
Connections:
-
Inputs: 2x Combo XLR / jack ∅6,35 mm
-
Link outputs: 2x XLR
-
Material: Baltic birch plywood
-
Grille: Steel
-

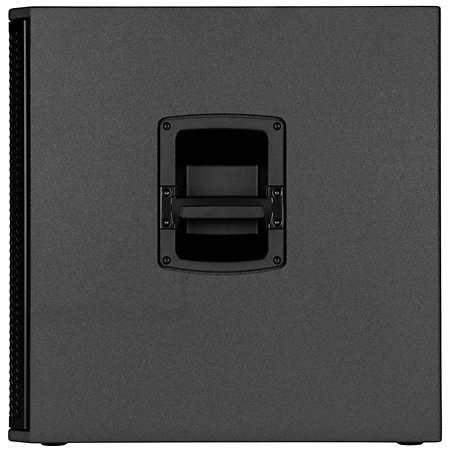

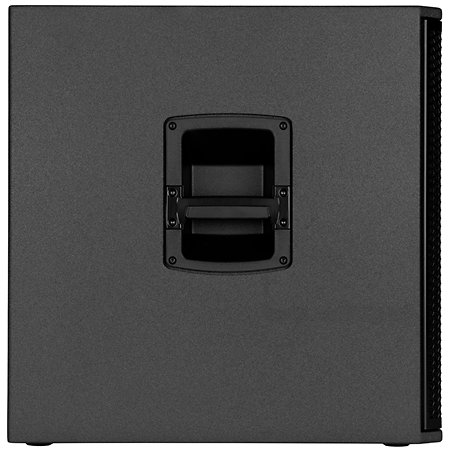

Side handles
-

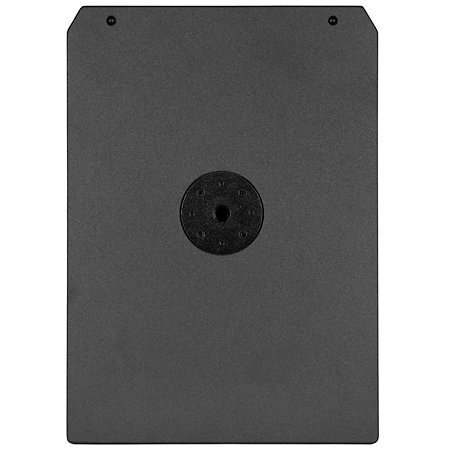

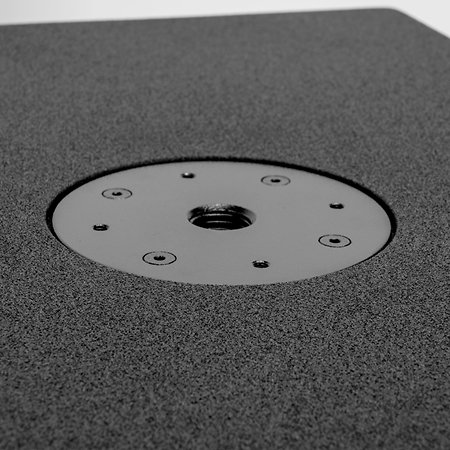

Coupling bar base: M20 thread
-
Colour: Black
-
Coating: Polyurethane
-
Protection: Thermal
-
Cooling : Convection
-
Power supply : 230 V∿ 50 Hz
-
Dimensions : 590 x 590 x 420 mm
-
Weight : 30 kg
