Sennheiser - EW-D ME3 SET (R4-9)
The Sennheiser EW-D ME3 SET (R4-9) digital wireless microphone system is designed for public speaking and vocal performances, featuring an ME 3 cardioid headband microphone designed to stay securely in place during use. Transmission operates in the UHF band from 552 to 607.8 MHz, with a dynamic range of 134 dB.
Presentation
The ME 3 microphone has a cardioid polar pattern. The system uses digital transmission in the UHF band, and this version operates in the frequency range from 552 to 607.8 MHz. Its stated audio dynamic range is 134 dB, whilst the latency is 1.9 ms.
The EW-D Smart Assist app connects via Bluetooth Low Energy to simplify setup and remote management. The metal casing of the pocket transmitter is mentioned in the official presentation.
Before purchasing, please check that the R4-9 band is compatible with the frequencies authorised and in use in your region. This kit provides a wireless solution comprising the main components required for its use, as specified by the manufacturer.
Other features
-
Sennheiser EW-D ME3 SET (R4-9)
-
Digital wireless microphone system with headband microphone
-

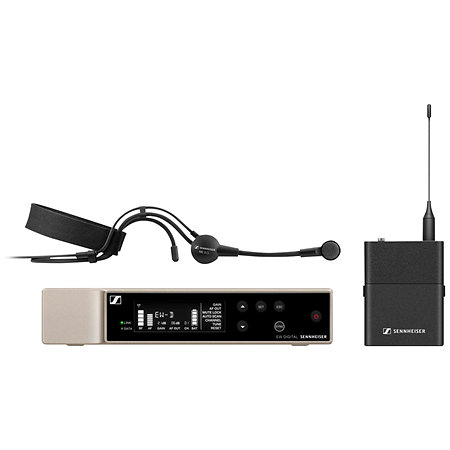

System components
-

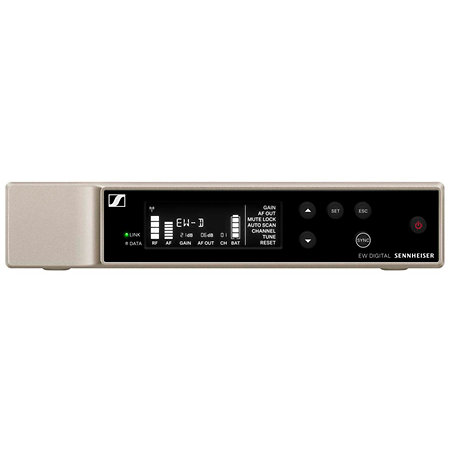

Receiver: EW-D EM
-

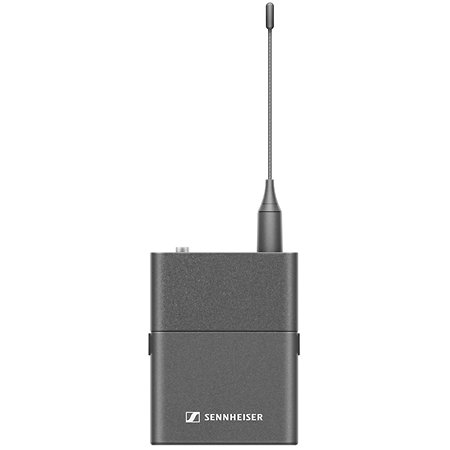

Pocket transmitter: EW-D SK
-
Headset microphone: ME 3
-
.
-
Wireless transmission
-
Transmission technology: digital
-
Frequency band: UHF
-
Frequency range: 552 to 607.8 MHz
-
Latency: 1.9 ms
-
Audio transmission power: 10 mW ERP
-
.
-
Microphone and signal specifications
-
Transducer type: pre-polarised condenser
-
Polar pattern: cardioid
-
Audio frequency response: 20 Hz to 20 kHz (-3 dB)
-
Dynamic range: 134 dB
-
Maximum audio output level: 18 dBu
-
Maximum sound pressure level: 150 dB SPL
-
Total harmonic distortion: ≤ -60 dB at 1 kHz with an input level of -3 dBFS
-
.
-
Connectivity and power supply
-
System connection: wireless
-
Specified connector: 3.5 mm
-
Specified number of batteries: 2
-
Batteries included: yes
-
Battery voltage: 1.5 V
-
Specified capacity: 2.3 Ah
-
Dimensions: 212 x 189 x 44 mm
-
Weight: 2.8 kg
To find out more...
The EW-D Smart Assist app uses Bluetooth Low Energy to make it easier to set up and manage the system remotely.
