Led Architectural Projector

The Cameleon Spot Q4 combines a tight beam, DMX/RDM control and IP65 construction, making it an easy-to-deploy RGBW source for decorative or technical lighting.

ARTICLE N° 114741

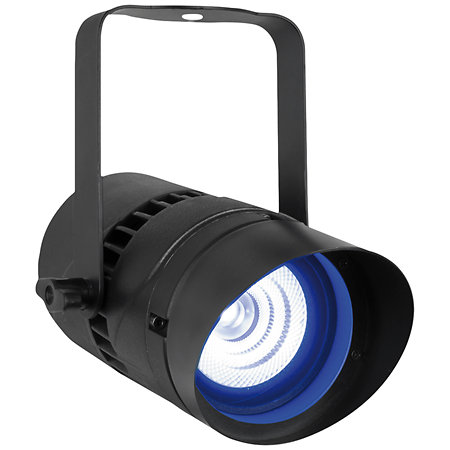

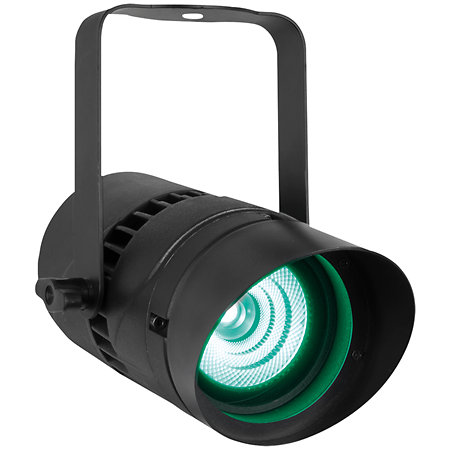

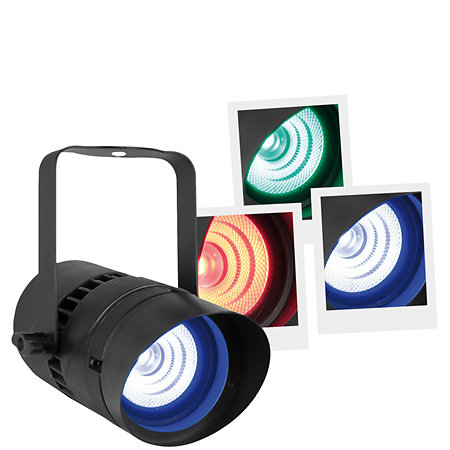

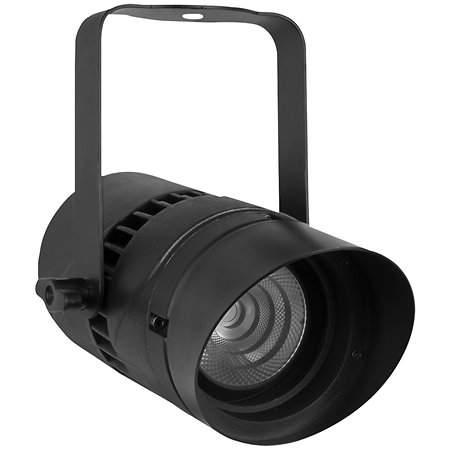

The Showtec Cameleon Spot Q4 is aimed at installations requiring a compact LED spotlight that can withstand outdoor conditions without compromising on light quality. Its 15-watt RGBW source provides precise colour mixing, with a fixed 16° beam that works well for accenting, highlighting specific objects or areas, as well as for decorative lighting in facades or scenography.

With its IP65 rating, the Spot Q4 ensures reliable operation in rain, dust or damp conditions, making it easy to integrate into outdoor event environments. It can be controlled in several ways: in DMX with three modes available, in master/slave mode, or via stand-alone settings. An optional infrared remote control also offers a practical solution for quick installations or one-off adjustments.

Dimming from 0 to 100% is seamless, complemented by a strobe effect of up to 20 Hz. The unit operates without a mechanical fan, using convection cooling to ensure quiet operation, which is particularly useful in areas where noise levels need to be reduced, such as terraces, restaurants and small video sets. The aluminium casing provides good mechanical strength and contributes to heat dissipation.

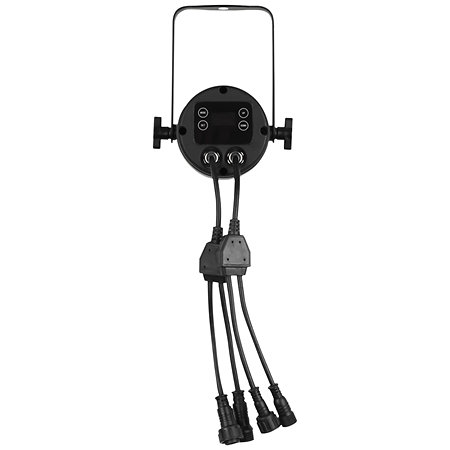

The projector is supplied with dedicated IP65 power and DMX connectors, as well as a robust mounting bracket. This allows it to be quickly integrated into a fixed or mobile setup while maintaining a secure connection against the elements.
Number of LEDs
 1
Power of each LED (W)
 15 W
Mix of colors
 RGBW
Dimmer
 Yes
Master-slave
 Yes
Outdoor use
 Yes
Electrical Chain
 Yes
Weight
 2 kg
Power supply
 Power adapter (included)
Packaging
 Single unit
DMX control
 Wired
Water & Dust Protection (IP rating)
 IP65
  • Showtec Cameleon Spot Q4
  • RGBW 15 W IP65 LED spotlight
  • Source type: LED
  • Number of LEDs: 1
  • LED power: 15 W
  • LED type: RGBW
  • Refresh frequency: 12 kHz
  • Total luminous flux: 570 lm
  • Beam angle: 16
  • Control modes: Auto, DMX, master/slave
  • DMX channels: 4, 6, 10
  • Protocols: DMX, RDM
  • Display: OLED
  • Dimmer: 0-100
  • Strobe: 0-20 Hz
  • Power supply: 100-240 V AC 50/60 Hz
  • Power consumption: 20 W
  • Input power connector: IP65 dedicated
  • Power output connector: IP65 dedicated
  • DMX input connector: IP65 3-pin
  • DMX output connector: IP65 3-pin
  • Cable length: 1.5 m
  • Protection rating: IP65
  • Cooling: convection
  • Housing material: aluminium
  • Colour: black
  • Mounting options: clamp
  • Maximum ambient temperature: 40 °C
  • Minimum operating temperature : -5 °C
  • Dimensions: 155 x 235 x 195 mm
  • Weight : 2 kg
