ADJ - 40 Hex IP Panel
1 249,17 €
excl VAT
including eco-part : 0,90 €
In Stock
Usually ships within 5 days
+infos
Guarantee 3
years
Anais
Jessie
Do you need help?
Led Architectural Projector
Versatile IP65 LED spotlight with 40 HEX LEDs, pixel mapping, integrated Aria X2 and robust design, perfect for stage, filming or outdoor events.
ARTICLE N° 108485
Presentation
The 40 HEX Panel IP is designed for lighting technicians who need a robust and flexible solution for both indoor and outdoor applications. Its IP65-certified all-metal construction ensures reliable protection against rain, dust or sand, even in the most demanding environments. Whether you're on stage, at a festival or filming on location, it's got what it takes.
With its 40 x 20W HEX LEDs (6-in-1 RGBAL+UV), it offers an extremely rich palette of colours, from warm white to intense violet. The ten independent pixel zones enable highly advanced dynamic effects, useful for creating complex pixel mapping looks or powerful strobe effects.
This panel is designed to adapt to any situation. Thanks to its DMX and RDM compatibility, its multiple control modes with up to 132 channels and its adjustable LED refresh rate, it can be easily integrated into any setup, from theatre to events. All without flicker, perfect for broadcast applications.
The integration of Aria X2 technology is a real plus: it enables remote software updates and simplified management of the equipment, even on a major tour. The IP65 DMX and power supply connectors further enhance the reliability of the system.

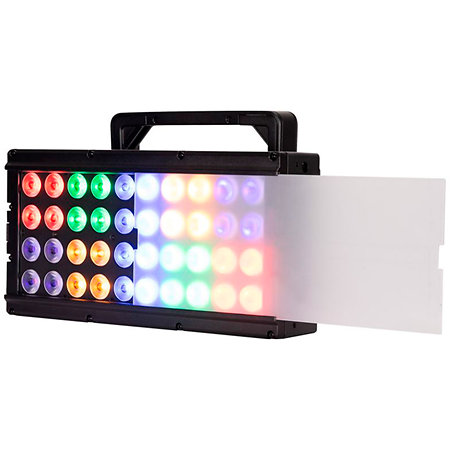

The 40 HEX Panel IP is supplied with an IP65 mains cable, a frost filter and a safety cable. Optional accessories such as linear filters and the Omega stand complete an already comprehensive product. An obvious choice for contractors looking for a versatile projector that's ready for anything.
With its 40 x 20W HEX LEDs (6-in-1 RGBAL+UV), it offers an extremely rich palette of colours, from warm white to intense violet. The ten independent pixel zones enable highly advanced dynamic effects, useful for creating complex pixel mapping looks or powerful strobe effects.
This panel is designed to adapt to any situation. Thanks to its DMX and RDM compatibility, its multiple control modes with up to 132 channels and its adjustable LED refresh rate, it can be easily integrated into any setup, from theatre to events. All without flicker, perfect for broadcast applications.
The integration of Aria X2 technology is a real plus: it enables remote software updates and simplified management of the equipment, even on a major tour. The IP65 DMX and power supply connectors further enhance the reliability of the system.
The 40 HEX Panel IP is supplied with an IP65 mains cable, a frost filter and a safety cable. Optional accessories such as linear filters and the Omega stand complete an already comprehensive product. An obvious choice for contractors looking for a versatile projector that's ready for anything.
Features
Number of LEDs
40
Power of each LED (W)
20 W
Mix of colors
RGBAW-UV
Dimmer
Yes
Auto programs
Yes
Master-slave
Yes
Outdoor use
Yes
Electrical Chain
Yes
Weight
11,2 kg
Installation
On truss, On floor
Power supply
Power adapter (included)
Packaging
Single unit
Color
Black
DMX control
Wired
Water & Dust Protection (IP rating)
IP65
Other features
-
ADJ 40 HEX Panel IP
-
Versatile outdoor LED spotlight
-
Light source consisting of 40 x 20W HEX RGBAL+UV LEDs
-
Average LED life estimated at 50,000 hours
-
Total luminous flux of 19,590 lumens for powerful coverage
-
Horizontal beam angle of 28.61° and vertical beam angle of 23.72
-
Maximum horizontal angle of view of 50.82° and vertical angle of view of 44.95
-
IP65 protection against dust, humidity and rain
-
100% metal design with robust, hard-wearing black casing
-
Works as a washlight, blinder or strobe
-
Integrated wireless management via Aria X2 for OTA updates
-
10 individually controllable pixel zones for dynamic effects
-

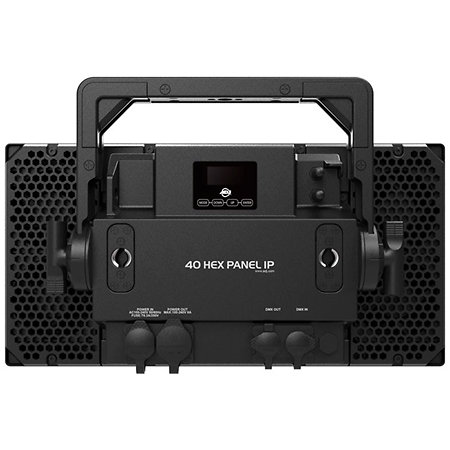

OLED with touch-sensitive buttons for intuitive navigation
-
24 DMX modes available (from 6 to 132 channels depending on pixel grouping)
-
DMX512 and RDM compatibility with IP65 5-pin connectors
-
Smooth dimming from 0 to 100% with 16 bits and 5 dimmer curves
-
Adjustable LED refresh rate for flicker-free rendering
-
Automatic power supply 100-240 V AC, 50/60 Hz
-
Maximum power consumption of 513 W at 120 V or 492 W at 220 V
-
Series connection of up to 4 units at 230 V
-
IP65 mains connection lockable for electrical daisy-chaining
-
Integrated T4A/250V glass fuse (5×20 mm) for safety
-
Dimensions: 417 × 296.8 × 212 mm
-
Weight: 11.15 kg
