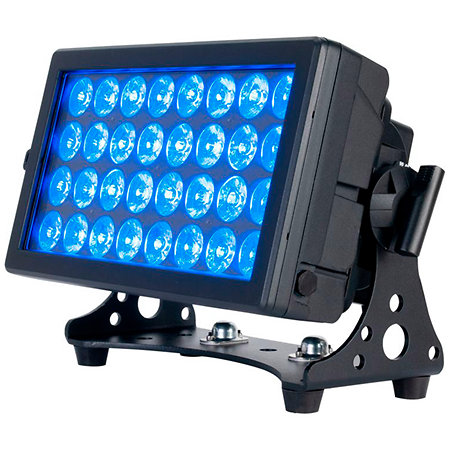

Led Architectural Projector

IP65 wash spotlight with 32 RGBL LEDs, zone control, variable diffusion, wireless DMX, high power and precise rendering, for professional indoor/outdoor use.

ARTICLE N° 108368

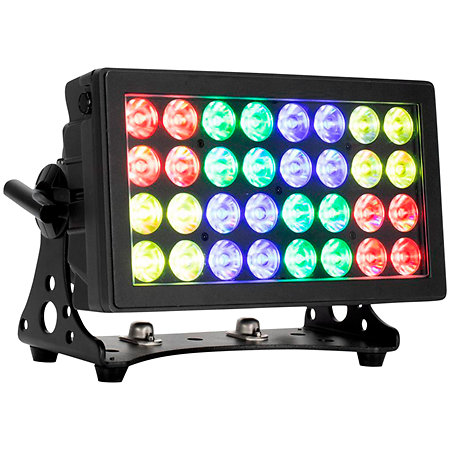

With its 32 x 20 W RGBL LEDs spread over 8 zones, the Encore LP32IP offers precise and creative control of light output. Each zone becomes a field of expression, whether for dynamic effects, subdued atmospheres or pixelated animations. All with true colour consistency, thanks to the addition of the Lime LED, which enhances perceived brightness and fills in gaps in the visual spectrum.

Designed for demanding conditions, this wash projector has a robust IP65 chassis. It is highly resistant to humidity, dust and water splashes. A real guarantee for outdoor events, TV sets or fixed installations in harsh environments. The included bracket allows quick floor or hook mounting, with precise angle locking every 10° for easy alignment on stage.

The adjustable colour temperature range from 2,700 to 7,000 K ensures great flexibility, from subdued warm white to a more incisive cool white. This precision is just as useful for concerts as it is for broadcast or immersive sets. And to widen the native 11° beam, a 25° diffusion filter is supplied with magnetic frame, to switch from a tight beam to more enveloping lighting.

On the control side, there's a wide range of compatibility: classic wired DMX, long-range wireless WiFLY EXR, Aria X2, RDM, and even digital wired communication. The internal effects are numerous and customisable, with dimming curves, a fluid electronic strobe, pixel zone mode and fine control of dimmer speed. The OLED screen and navigation buttons make it easy to get to grips with on site.

The quality of the manufacture is there for all to see, with an all-metal casing, a hard-wearing black finish, IP65 connectors and integrated protections. This serious construction meets the expectations of service providers, touring lighting designers or public venues looking for reliable professional lighting. The LED refresh rate of up to 25 kHz also guarantees flicker-free video capture.

Finally, the included and optional accessories further extend the possibilities: additional filters (20°, 60°, 100°), barn doors and compatible brackets. The Encore LP32IP is a top-of-the-range, modular wash solution, built to last, and designed for those who want to combine aesthetic appeal with real technical constraints.
Number of LEDs
 32
Power of each LED (W)
 20 W
Mix of colors
 RGB
Dimmer
 Yes
Auto programs
 Yes
Master-slave
 Yes
Outdoor use
 Yes
Electrical Chain
 Yes
Weight
 11 kg
Installation
 On truss, On floor
Power supply
 Power adapter (included)
Packaging
 Single unit
Color
 Black
DMX control
 Wired
Water & Dust Protection (IP rating)
 IP65
  • ADJ - Encore LP32IP
  • Professional IP65 multi-zone LED wash spotlight
  • Light source: 32 x 20 W RGBL LEDs with individual control over 8 zones
  • Colour temperature: variable white from 2700 K to 7000 K
  • Beam angle: 11° native, 25° with diffusing filter
  • Angle of coverage: 23.7° native, 47° with diffusion filter
  • Average LED life: 50,000 hours
  • Zoom function: No
  • Individual pixel control: Yes, 8 controllable sections
  • Internal programs: Colour macros, pixel effects, progressive dimmer, strobe
  • Dimming modes: 6 user-selectable modes
  • Dimming curves: 4 dimming curves available
  • LED refresh: adjustable frequency from 900 Hz to 25 kHz, flicker-free for cameras
  • DMX modes: Several modes available depending on the complexity required
  • Control protocols: Wired DMX, RDM, WiFLY EXR, Aria X2, wired digital network

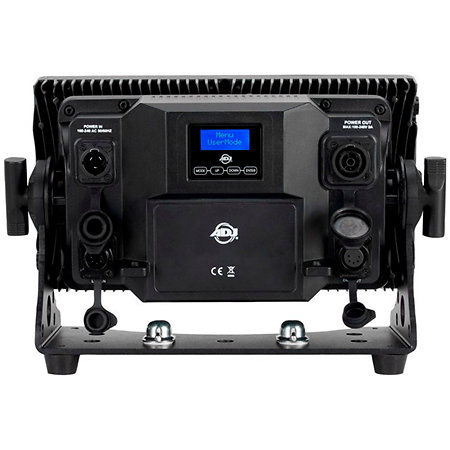

  • Display: OLED display with navigation buttons

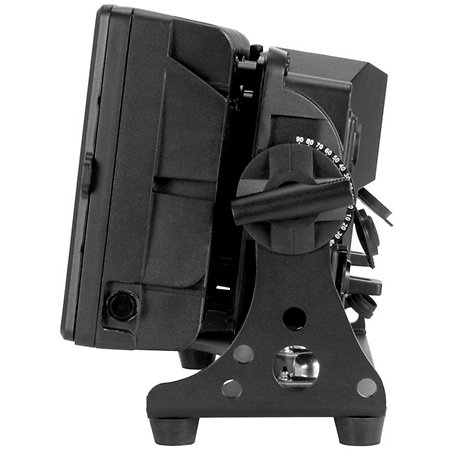

  • Construction: IP65 metal enclosure with black coating, floor stand or hook with 10° locking system
  • Mounting: Integrated Omega bracket, magnetic frame filter mounting, shutter door compatible
  • DMX connections: IP65 5-pin XLR input/output with protective caps
  • Power connections: IP65 lockable mains connectors with protective caps
  • Mains supply: AC 100-240 V, 47-63 Hz
  • Power consumption : 334 W max
  • Mains daisy-chaining: Up to 2 units at 120 V, 6 units at 230 V
  • Operating temperature: -20°C to +45°C
  • Storage temperature: -20°C to +45°C
  • Certifications: CE, ETL (pending), IP65
  • Accessories included: 1 x 25° diffusing filter with magnetic frame, 1 x IP65 mains cable
  • Optional accessories: 20°, 60°, 100° filters with frame, BAR032 shutters
  • Dimensions: 353.4 x 246 x 165.5 mm
  • Weight: 11 kg
ADJ - Encore LP32 IP
ADJ - Encore LP32 IP
1 123,33 € excl VAT
including eco-part : 0,90 €
In Stock
Usually ships within 5 days
+infos
Guarantee 3  years
