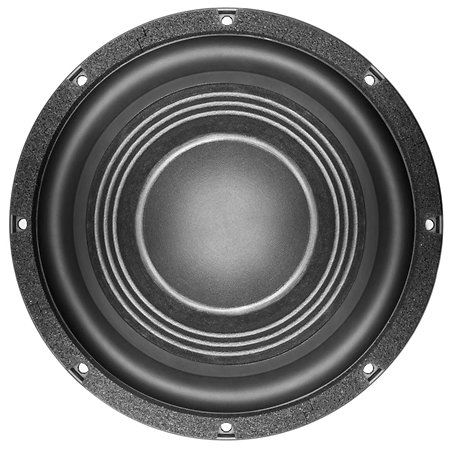

B&C Speakers - 12FG100 4 Ohm Push Buttons

The B&C Speakers 12FG100 4 Ohm Push Buttons is a professional loudspeaker designed for low-frequency reinforcement applications in demanding PA systems.

With its 12-inch diameter and nominal 4 Ohm impedance, it delivers up to 2000 watts of programme power, while maintaining a clean, controlled response over a range from 34 Hz to 1000 Hz. This model is based on a 100 mm copper voice coil mounted on a fibreglass support, offering excellent power handling and heat dissipation.

The cone is waterproof on both sides (TWP technology), enabling it to be used in a wide range of conditions, while the whole unit rests on a solid aluminium bowl and ferrite magnet.

The coil suspension is coupled to a double silicone spider, ensuring a high linear excursion (Xmax 10.3 mm), ideal for deep bass. The presence of an aluminium demodulation ring limits distortion at high dynamic speeds.

With its 91dB efficiency, carefully selected components and construction optimised for mechanical strength and thermal stability, the 12FG100 is a reliable solution for any high-performance bass system, whether for fixed installation or mobile sound reinforcement.

Its size and footprint make it easy to fit into bass reflex enclosures of around 50 litres, with a recommended tuning of 34 Hz. A balanced, muscular model for service providers and custom system designers.
