Speaker driver

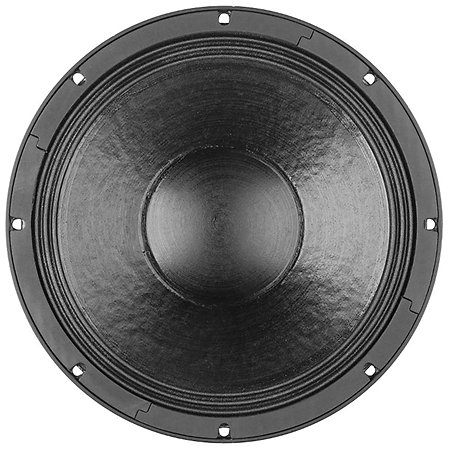

B&C Speakers 12PLB100 12-inch speaker with 8 Ohm impedance and Push Buttons connectors, featuring a 4-inch aluminium voice coil, ferrite magnet and extended response up to 2500 Hz.

ARTICLE N° 106205
The 12PLB100 8 Ohm from B&C Speakers is a solid reference for professionals who need a 12-inch loudspeaker that's efficient in the bass and low-midrange registers, without compromising on power handling. With its 100 mm aluminium voice coil and ferrite motor, this model combines efficiency, thermal resistance and linearity throughout its operating range.

Capable of handling up to 600 W continuously (1200 W in programme), the B&C 12 PLB 100 is designed to withstand heavy loads while remaining stable. Its bandwidth covers 50 Hz to 2,500 Hz, making it an appropriate choice for two-way systems, particularly compact front speakers or stage monitors.

The waterproof cone on the front, combined with triple-roller suspension and a well-ventilated mechanical structure, contribute to clean, accurate reproduction even at high levels. The addition of an aluminium demodulation ring improves distortion at critical frequencies, enhancing signal clarity.

Its 97dB sensitivity, 18.4T-m BL factor and optimised motorisation provide a good balance between acoustic pressure, responsiveness and fidelity. When installed, the standard 319 mm outer diameter, 122 mm depth and 3.5 dm³ occupied air volume make it easy to fit into a 40 to 50 litre load.

The 12-PLB100 Push Buttons remain a safe bet for any application where reliability, power handling and precision are priorities.
  • B&C Speakers 12PLB100 8 Ohm
  • 12-inch cone loudspeaker
  • Nominal impedance: 8 Ohm
  • Rated power: 600 W
  • Program power: 1200 W
  • Sensitivity: 97 dB
  • Frequency range: 50 Hz - 2500 Hz
  • Coil diameter: 100 mm (aluminium)
  • Coil support: Fibreglass
  • Coil height: 23 mm
  • Air gap depth: 10 mm
  • Xmax: 9 mm
  • Xvar: 7 mm
  • Radiant surface area (Sd): 531 cm2
  • Moving mass (Mms): 77 g
  • Inductance (Le): 1.6 mH
  • DC resistance (Re): 5.1 Ohm
  • BL factor: 18.4 T-m
  • Resonance frequency (Fs): 50 Hz
  • Qts: 0.37 / Qes: 0.38 / Qms: 9.2
  • Vas: 47 dm³
  • Efficiency: 1.7
  • Magnetic system: Ferrite
  • Aluminium demodulation ring
  • Case: Aluminium
  • Cone: Waterproof treated paper (front)
  • Suspension: Triple roller
  • Cone shape: Radial
  • Faceplate shape: Cylindrical
  • Outside diameter: 319 mm
  • Flush-mounted diameter: 282 mm
  • Centre diameter: 299 mm
  • Depth: 122 mm
  • Occupied air volume: 3.5 dm³
  • Net weight: 8.4 kg
B&C Speakers - 12PLB100 8 Ohm Push Buttons
B&C Speakers - 12PLB100 8 Ohm Push Buttons
236,67 € excl VAT
Out of stock
Contact us for delivery times
Guarantee 3  years
