Speaker driver
The B&C Speakers 8NSM64 16 Ohm loudspeaker is designed for midrange applications in direct or horn-loaded applications, with a power handling of 500 W and a sensitivity of 100 dB. Its 64 mm aluminum voice coil and neodymium motor optimize the response between 245 Hz and 2 kHz while minimizing distortion.
ARTICLE N° 92118
Presentation

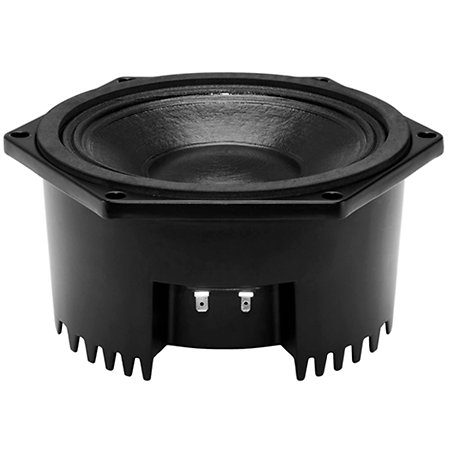

The B&C Speakers 8NSM64 16 Ohms is a midrange driver specifically designed to deliver precise and controlled midrange reproduction, with a peak power capacity of 500W.
Its sealed design with a cast aluminum chassis facilitates integration into various speaker configurations while optimizing heat dissipation. This design ensures increased performance stability, even under heavy loads, and allows for better low-frequency handling within its bandwidth.
Featuring a 64mm aluminum voice coil and a neodymium ring magnet motor, this driver combines power with lightness. The magnetic structure provides fast response and precise cone displacement control, significantly reducing distortion, even at high sound pressure levels. Its 100dB sensitivity guarantees optimal efficiency, enabling detailed sound reproduction with minimal amplification.
With a frequency response ranging from 245 Hz to 2 kHz, it is suitable for configurations requiring an articulate and defined midrange, particularly in horn-loaded or direct-radiating systems. The waterproof coating applied to the front of the cone protects it from humidity and harsh environmental conditions, thus extending its durability.

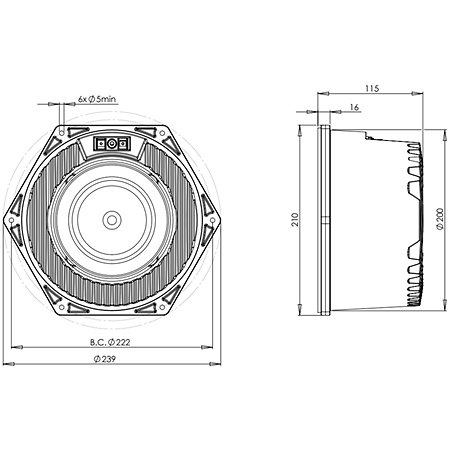

The 8NSM64 16 Ohms has an overall diameter of 239 mm and a depth of 115 mm, with a net weight of 4.55 kg. Its mounting is secured thanks to a 222 mm diameter mounting ring, ensuring optimal stability within the speakers. These features make it a high-performance solution for professional sound systems seeking a responsive and reliable midrange driver.
Its sealed design with a cast aluminum chassis facilitates integration into various speaker configurations while optimizing heat dissipation. This design ensures increased performance stability, even under heavy loads, and allows for better low-frequency handling within its bandwidth.
Featuring a 64mm aluminum voice coil and a neodymium ring magnet motor, this driver combines power with lightness. The magnetic structure provides fast response and precise cone displacement control, significantly reducing distortion, even at high sound pressure levels. Its 100dB sensitivity guarantees optimal efficiency, enabling detailed sound reproduction with minimal amplification.
With a frequency response ranging from 245 Hz to 2 kHz, it is suitable for configurations requiring an articulate and defined midrange, particularly in horn-loaded or direct-radiating systems. The waterproof coating applied to the front of the cone protects it from humidity and harsh environmental conditions, thus extending its durability.
The 8NSM64 16 Ohms has an overall diameter of 239 mm and a depth of 115 mm, with a net weight of 4.55 kg. Its mounting is secured thanks to a 222 mm diameter mounting ring, ensuring optimal stability within the speakers. These features make it a high-performance solution for professional sound systems seeking a responsive and reliable midrange driver.
Other features
-
B&C Speakers 8NSM64 16 Ohms
-
8" (20 cm) speaker
-
Continuous power: 250 W
-
Peak power handling: 500 W
-
Nominal impedance: 16 Ω
-
Minimum impedance: 8.2 Ω
-
Sensitivity: 100 dB
-
Frequency response: 245 Hz - 2 kHz
-
Voice coil: 64 mm (2.5") aluminum
-
Inductance: 0.6 mH
-
Flux density: 1.55 T
-
Voice coil depth: 13 mm
-
Air gap depth: 10 mm
-
Resonant frequency (Fs): 245 Hz
-
Total quality factor (Qts): 0.34
-
Electrical quality factor (Qes): 0.35
-
Emitting surface (Sd): 220 cm²
-
Maximum linear displacement (Xmax): 2 mm
-
Permissible displacement (Xvar): 1.7 mm
-
Vas: 1.5 dm³
-
Bl: 22 Tm
-
EBP: 700 Hz
-
Cone shape: Radial
-
Spider material: Single
-
Cone treatment: Waterproof (front face)
-
Magnet type: Neodymium ring
-
Pole design: T-Pole
-
Suspension shape: Double roller
-
Mounting: 8 mounting holes on a diameter of 222 mm
-
Total diameter: 239 mm
-
Cutout diameter: 200 mm
-
Flange and gasket thickness: 16 mm
-
Speaker volume: 3.5 dm³
-
Depth: 115 mm
-
Package dimensions: 295 x 314 x 175 mm
-
Net weight: 4.55 kg
-
Shipping weight: 5.15 kg
-
Packaging: 1 piece
