Column PA System

The elokance Tower 15 Max provides ample power headroom for DJs, bands and event sound engineers who need to provide sound for ambitious events without having to stack speakers. Its 3-way sound dispersion, 1,700 W RMS and 48 kHz / 56-bit DSP allow the system to be tailored to live performances, vocals, DJ sets or a customised setup. Its 100° x 40° coverage and RS485 network make it ideal for professional installations where power and control need to work in tandem.

ARTICLE N° 120084
The elokance Tower 15 Max comes into its own when your sound system needs to do more than just play background music. With a maximum power output of 3,400 W, 1,700 W RMS and up to 136 dB SPL, this 3-way active system has the power in reserve for DJ sets, live bands, corporate events, temporary stages and venues where the audience doesn’t stay quietly within a three-metre radius. The Class D amplification powers the system’s three sections separately, with a stated RMS power distribution of 1,000 + 600 + 100 W. Each frequency range therefore receives its own amplification capacity, which helps maintain a structured mix as the volume rises.

In the bass department, the Tower 15 Max features a 15-inch driver with a 4-inch voice coil. This configuration delivers the expected punch on kick drums, electronic bass, toms and low-end instruments. The response extends down to 40 Hz – a range well-suited to modern music that demands impact without turning every performance into a four-subwoofer spectacle. For the midrange, elokance has chosen four 6.5-inch drivers with 2-inch voice coils. This section handles a crucial part of the sound: vocals, guitars, keyboards, percussion and the overall presence of the mix.

The treble has its own 4.7-inch driver with a 1.75-inch voice coil. This design extends the frequency response up to 20 kHz and enables the system to cover the entire spectrum across three distinct acoustic zones. At a concert, this means you can achieve clear vocals without sacrificing the rhythmic foundation. During a DJ set, the bass retains its impact whilst the attack and detail in the upper frequencies remain present. And at a conference, the system has the necessary headroom to ensure speech is intelligible across a larger space.

The coverage of 100° horizontally and 40° vertically also plays a major role in practical use. You can cover an extended listening area without concentrating all the energy along the central axis. At a wedding, a corporate event or a public function, listeners move about, chat and dance – and always seem to find that one table positioned exactly where you wanted to run your cable. Wide horizontal dispersion therefore helps to maintain a more consistent listening experience across the entire listening area.

The digital brain of the Tower 15 Max is based on a 48 kHz / 56-bit DSP. Five presets are available: Original, Live, Vocal, DJ and User. You can quickly start with a setting tailored to the application, then use User mode when a setup requires a more personalised approach. The RS485 network, via two RJ45 ports, adds a dimension of control that is particularly useful in a professional environment. The dedicated software allows you to integrate the system into a more advanced setup workflow, rather than managing everything by ear between the soundcheck and the doors opening.

The connectivity gets straight to the point: an XLR/6.35 mm jack combo line input, an XLR line output, and satellite input and output via speakON. The unit is housed in a 15 mm birch plywood enclosure, a choice consistent with a system designed to withstand regular set-ups, dismantling and use. The Tower 15 Max is therefore clearly aimed at users who want a powerful, controllable sound system capable of adapting to a range of audio applications, from high-energy DJ sets to live performances and professional events.
Tweeter
 4,7"
Acoustic pressure (dB)
 From 130 to 140
Effects
 Audio signal processed by DSP
Peak power (W)
 3400
RMS power (W)
 1700
Weight
 66,5 kg
Amplification type
 Class D
Vertical dispersion °
 40°
Horizontal dispersion °
 100°
Speaker
 15"
Frequency response, low limit
 40 Hz
Frequency response, upper limit
 20 kHz
  • elokance Tower 15 Max
  • Active sound system
  • Channels: 3
  • Amplification: Class D
  • Maximum total power: 3,400 W
  • Total RMS power: 1,700 W
  • Maximum amplifier power: 2,000 + 1,200 + 200 W
  • RMS amplifier power: 1,000 + 600 + 100 W
  • Maximum SPL: 136 dB
  • Bass driver: 1x 15", 4" voice coil
  • Midrange driver: 4x 6.5", 2" voice coil
  • Tweeter: 1x 4.7", 1.75" voice coil
  • Frequency response: 40 Hz – 20 kHz
  • Coverage (H x V): 100° x 40°
  • DSP: 48 kHz / 56-bit
  • Presets: Original / Live / Vocal / DJ / User
  • Connections:
  • Line input: XLR / 6.35 mm jack combo
  • Line output: XLR
  • Satellite output: speakON
  • Satellite input: speakON
  • RS485 network: 2x RJ45
  • Construction: 15 mm birch plywood
  • Power supply: 220–240 VAC / 50 Hz
  • Power consumption: 580 W
  • Main cabinet dimensions: 440 x 600 x 730 mm
  • Cabinet weight: 39 kg
  • Satellite dimensions: 220 x 300 x 116 cm
  • Satellite weight: 27.5 kg
  • Control software: https://bit.ly/4dv6HUW

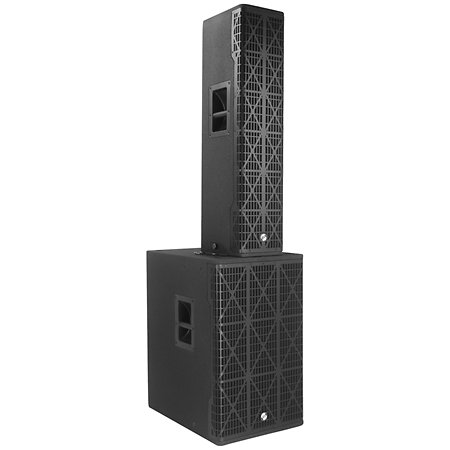

Elokance - Tower 15 Max
