The Martin Audio XE300 stage loudspeaker is a 2-way coaxial model designed for precise and powerful monitoring on stage. It features a 12" driver combined with an HF motor in a coaxial configuration, ensuring even reproduction throughout the listening area. Its Differential Dispersion technology keeps the sound balance constant, even when moving in front of the wedge.

ARTICLE N° 121179
Designed for demanding environments, the Martin Audio XE300 speaker is based on a coaxial design that provides a coherent source point. The 12" driver with 3" voice coil works with a compression driver with a 3" titanium diaphragm, maintaining precise definition even at high levels.

Differential Dispersion technology adjusts the horizontal coverage from 60° to 30° depending on the position of the artist. This behaviour maintains a constant level and balance at listening height, whether you are close to or slightly behind the monitor. On stage, this translates into improved readability without having to turn up the volume unnecessarily.

The birch plywood cabinet is low and discreet, making it easy to integrate on stage. Built-in risers increase the angle of projection for situations where you need to project further. Front-mounted air vents exploit the coupling with the floor to reinforce the low end of the spectrum, giving a fuller sound without adding subwoofer.

In terms of operation, it can be used passively or as a bi-amplifier, depending on the configuration chosen. When used with iKON amplifiers, it offers precise control thanks to the DSP and VU-NET software, making it easy to adjust in real-life conditions.

With an SPL level of up to 140dB peak, it remains stable even on loud stages. Its integrated handles and rubber protectors make it easy to handle and safe to transport, and it weighs just 19 kg for intensive professional use.
  • Martin Audio XE300
  • 2-way, bi-amplified/passive stage speaker with coaxial differential dispersion
  • Technology: Coaxial Differential Dispersion™ for consistent coverage
  • Frequency response: 67 Hz - 18 kHz ± 3 dB, -10 dB @ 55 Hz
  • Low-frequency (LF) driver: 12" (300 mm), 3" (75 mm) voice coil, double gap neodymium motor system
  • Tweeter (HF): 1.4" (35 mm) compression driver, 3" (75 mm) voice coil, pure titanium dome
  • Power handling (LF) : 350 W AES, 1400 W peak
  • Power handling (HF) : 80 W AES, 320 W peak
  • Maximum SPL (bi-amplified) : 140 dB peak
  • Maximum SPL (passive) : 139 dB peak
  • System amplifier: iKON® iK42 (compatible with iK41, iK81)
  • Nominal impedance (LF/FR): 6 Ω
  • Nominal impedance (HF): 8 Ω
  • Dispersion (-6 dB): 60-30° horizontal, 90° vertical
  • Crossover frequency: 1.1 kHz
  • Baffle angle: 27.5° (40° with risers)
  • Connectors: 4 x NL4
  • Pin assignment: LF/FR: 1+/-, HF: 2+/-
  • Fixings: 2 handles, 4 M8 inserts, integrated risers
  • Rubber feet: Protection on base and sides
  • Protective grille: Black perforated steel with acoustic fabric
  • Speaker material : Multi-layer birch
  • Finish: Textured black paint

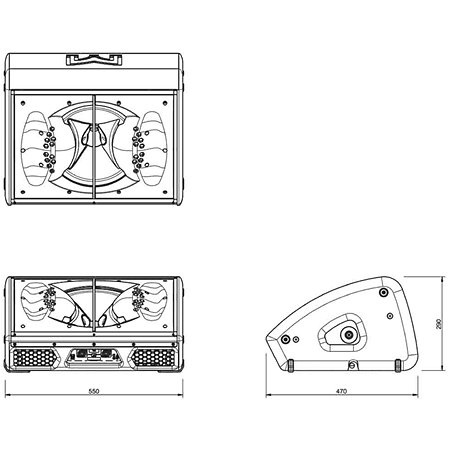

  • Dimensions (W x H x D, excluding feet): 550 mm x 290 mm x 470 mm (21.65" x 11.42" x 18.50")
  • Dimensions (W x H x D, with feet): 556 mm x 293 mm x 470 mm (21.89" x 11.54" x 18.50")
  • Weight: 19 kg (41.9 lbs)
Martin Audio - XE300 Retour Premium CDD actif passif 12"
Martin Audio - XE300 Retour Premium CDD actif passif 12"
3 157,50 € excl VAT
In Stock
Usually ships within 24h
+infos
Guarantee 3  years
