Martin Audio - XE500 Retour Premium CDD actif 15"
4 167,50 €
excl VAT
Out of stock
Contact us for delivery times
Guarantee 3
years
Floor Monitors
The Martin Audio XE500 stage monitor is a bi-amplified coaxial model designed to deliver very high sound levels with precise control. Its 15" driver combined with a titanium HF motor delivers clear, powerful sound throughout the listening area. Its controlled dispersion creates stable coverage for performers, even as they move around the stage.
ARTICLE N° 121184
Presentation
With the Martin Audio XE500 stage monitor, you're working with a wedge designed for demanding contexts where level and precision must remain constant. This 2-way bi-amplified model is based on a coaxial architecture that aligns the LF and HF sources, improving the coherence perceived directly at the listening point.
The bass section is based on a 15" driver with a 3.5" voice coil, capable of handling high levels while retaining definition. On the treble, the compression driver with titanium diaphragm provides a clear presence, useful for vocals and instruments that need to remain legible in a busy mix.
Differential Dispersion technology intelligently manages horizontal coverage, which is wider at close range and tighter at distance. In practical terms, this creates a well-defined listening zone at head height, with a balance that remains stable even if the artist moves. This behaviour also limits sound spillover into unwanted areas.
The multi-ply wooden body is designed for the stage, with integrated handles, a sturdy steel grille and feet that prevent accidental movement. The front vents work with the floor to reinforce the bass, and integrated risers allow the angle of diffusion to be adjusted to suit the configuration.
Combined with iKON amplifiers and control via VU-NET, this monitor forms part of a complete system with advanced DSP. The result is powerful, stable and predictable monitoring, capable of handling very high levels while maintaining a clean, usable sound throughout the performance.
The bass section is based on a 15" driver with a 3.5" voice coil, capable of handling high levels while retaining definition. On the treble, the compression driver with titanium diaphragm provides a clear presence, useful for vocals and instruments that need to remain legible in a busy mix.
Differential Dispersion technology intelligently manages horizontal coverage, which is wider at close range and tighter at distance. In practical terms, this creates a well-defined listening zone at head height, with a balance that remains stable even if the artist moves. This behaviour also limits sound spillover into unwanted areas.
The multi-ply wooden body is designed for the stage, with integrated handles, a sturdy steel grille and feet that prevent accidental movement. The front vents work with the floor to reinforce the bass, and integrated risers allow the angle of diffusion to be adjusted to suit the configuration.
Combined with iKON amplifiers and control via VU-NET, this monitor forms part of a complete system with advanced DSP. The result is powerful, stable and predictable monitoring, capable of handling very high levels while maintaining a clean, usable sound throughout the performance.
Other features
-
Martin Audio XE500
-
2-way bi-amplified stage speaker
-
Technology: Coaxial Differential Dispersion
-
Very high-SPL in a compact format
-
Point source coaxial performance
-
Horizontal dispersion: Varies from 60° to 30
-
Vertical dispersion: 70
-
Rectangular coverage plane defined at head height
-
Designed for use with the iK42 amplifier
-
Contoured plywood enclosure
-
Integrated risers for a steeper return angle
-
Rubber feet on side panel for extra protection
-
M8 lifting inserts
-
Frequency response: 62 Hz - 18 kHz ± 3 dB (-10 dB @ 45 Hz)
-
Low-frequency (LF) driver: 15" (380 mm), 3.5" (89 mm) voice coil, neodymium motor with double air gap
-
Tweeter (HF): 1.4" (35 mm) compression driver, 3" (75 mm) voice coil, titanium dome
-
Power handling (bass): 550 W AES, 2200 W peak
-
Power handling (treble) : 80 W AES, 320 W peak
-
Maximum SPL : 143 dB peak
-
Nominal bass impedance (LF) : 4 Ω
-
Nominal high-frequency impedance (HF): 8 Ω
-
Crossover frequency: 1.1 kHz (active)
-
Birch/beech and hardwood enclosure
-
Finish: Textured black paint
-
Grille: Black perforated steel with acoustic cloth
-
Baffle angle: 30° (40° with risers)
-
Connectors: 4 x NL4
-
Pinout: LF: 1+/-, HF: 2+/-
-
Handles: 2 x carrying handles
-

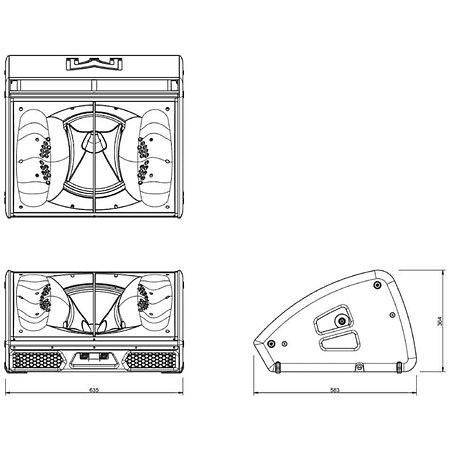

Dimensions (W x H x D) with feet: 641 mm x 367 mm x 583 mm (25.2" x 14.4" x 22.9")
-
Weight: 29 kg (63.9 lbs)
