Column PA System
With the EVOX J11 White amplified PA system, RCF offers a floorstanding solution with subwoofer designed to deliver a full, structured sound in a variety of contexts, from live performances to professional events. It offers you 3500 W of power and a wide distribution range to support DJs and bands alike, with rapid set-up and clear sound reproduction that remains stable even at high volume. The sleek, sober white finish blends easily into modern environments, without drawing unnecessary visual attention.
ARTICLE N° 122141
Presentation
From an acoustic point of view, the 3-way configuration of the EVOX J11
system's three-way configuration ensures precise separation of frequencies, resulting in legible mids and detailed highs without perceptible saturation. This structure favours balanced diffusion in a variety of spaces, even when the audience is dispersed.
In terms of power, RCF has opted for a 3500 W Class D amplifier capable of delivering sound pressure levels of up to 132 dB, guaranteeing a strong presence in festive or professional environments.
The column incorporates 12 3-inch full-range transducers combined with a special waveguide tweeter that improves horizontal dispersion by up to 120 degrees, for homogeneous coverage.
The result is a coherent projection, whether the audience is standing or seated.
The Sub's 12-inch bass reflex driver provides a solid foundation, with deep, controlled bass for dynamic music.
RCF has integrated advanced DSP to optimise the signal in real time using dedicated algorithms, improving overall clarity and limiting unwanted distortion. FiRPHASE processing adjusts the phase to maintain a precise sound image throughout the listening area.
The column format with easy transport simplifies moving and setting up in different locations, making it ideal for mobile performances. You can install the EVOX J11 quickly, without complex tools, leaving more time to prepare the rest of the equipment.
system's three-way configuration ensures precise separation of frequencies, resulting in legible mids and detailed highs without perceptible saturation. This structure favours balanced diffusion in a variety of spaces, even when the audience is dispersed.
In terms of power, RCF has opted for a 3500 W Class D amplifier capable of delivering sound pressure levels of up to 132 dB, guaranteeing a strong presence in festive or professional environments.
The column incorporates 12 3-inch full-range transducers combined with a special waveguide tweeter that improves horizontal dispersion by up to 120 degrees, for homogeneous coverage.
The result is a coherent projection, whether the audience is standing or seated.
The Sub's 12-inch bass reflex driver provides a solid foundation, with deep, controlled bass for dynamic music.
RCF has integrated advanced DSP to optimise the signal in real time using dedicated algorithms, improving overall clarity and limiting unwanted distortion. FiRPHASE processing adjusts the phase to maintain a precise sound image throughout the listening area.
The column format with easy transport simplifies moving and setting up in different locations, making it ideal for mobile performances. You can install the EVOX J11 quickly, without complex tools, leaving more time to prepare the rest of the equipment.
Features
Line array
Yes
Tweeter
1.75"
Acoustic pressure (dB)
From 130 to 140
Effects
Equalizer, Audio signal processed by DSP
Peak power (W)
3500
RMS power (W)
1750
Subwoofer included
Yes
Weight
29 kg
Enclosure type
With Vent
Application
Sound reinforcement, Karaoke, Restaurant, Ambiance, Mobile DJ
Amplification type
Class D
Power supply
220 V
Vertical dispersion °
40°
Horizontal dispersion °
120°
Speaker
12", 3" x12
Frequency response, low limit
37 Hz
Frequency response, upper limit
20 kHz
Packaging
Single unit
Country of production
Italy
Connectors
XLR male 3 pins, XLR female 3 pins, Jack female Stéréo
Color
White
Case or cover included
Gigbag
Other features
-
RCF EVOX J11 White
-
Portable active column sound system
-
Series: EVOX J
-
Country of production: Italy
-
Type: Floorstanding + Subwoofer, 3-way
-
Amplification: Class D
-
Peak power : 3500 W
-
RMS power : 1750 w
-
Max SPL : 132 dB
-
Dispersion : H120° x V40
-
Crossover: 160 Hz / 1800 Hz
-
Frequency response : 37 Hz ⭢ 20 kHz
-
DSP processing: FiRPHASE & Bass Motion Control (BMC)
-
DSP modes: Linear, Live, Club, Voice
-
.
-
Subwoofer: EVOX J11 Sub
-
Construction: Bass-Reflex
-
Bass driver: ∅12" (305 mm)
-
Handle: 1x top handle
-
Cabinet material: Polypropylene (PP) composite
-
Sub dimensions: 600 x 463 x 350 mm
-
.
-
Columns: EVOX J11 Column
-
Midrange drivers : 12x ∅3" (76,20 mm)
-
Tweeter: compression driver ∅1.75" (44.45 mm)
-

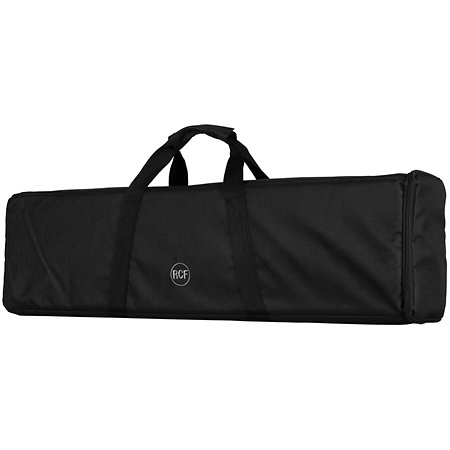

Supplied with padded carrying case
-
Dimensions Column: 740 (x2) x 105 x 95 mm
-
.
-

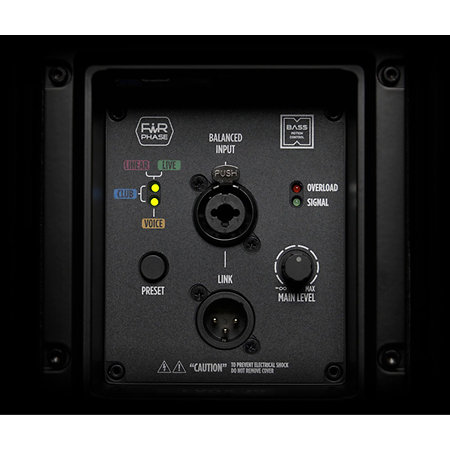

Connections :
-
Input : Combo XLR / jack ∅6,35 mm
-
Output : XLR
-
Colour : White (RAL 9003)
-
Conformity : CE
-
Mounting: Quick-fit mast base
-
Cooling: convection
-
Power supply: 200-240 Volt, 50 Hz
-
Fuse: T6.3 A L 250V
-
Assembled dimensions: 2080 x 463 x 350 mm
-
Total weight: 29 kg
To find out more...
RCF develops professional audio solutions covering live sound, fixed installations and portable systems, with particular attention paid to component quality and sound coherence. The brand designs its own transducers and amplification modules to guarantee total control of its products.
RCF uses proprietary technologies to optimise sound diffusion and meet the needs of musicians, technicians and event service providers.
To extend the low frequencies, you can combine an additional subwoofer, such as the RCF SUB 15-AX or SUB 18-AX, with dedicated presets, which enhances the impact in configurations requiring more sonic depth.
RCF uses proprietary technologies to optimise sound diffusion and meet the needs of musicians, technicians and event service providers.
To extend the low frequencies, you can combine an additional subwoofer, such as the RCF SUB 15-AX or SUB 18-AX, with dedicated presets, which enhances the impact in configurations requiring more sonic depth.
