Sennheiser - XSW 1-825 Dual B
Gift ideas
474,17 €
excl VAT
including eco-part : 0,25 €
In Stock
Shippable immediately
+infos
Guarantee 3
years
Jessie
Louis
Do you need help?
Wireless Microphone

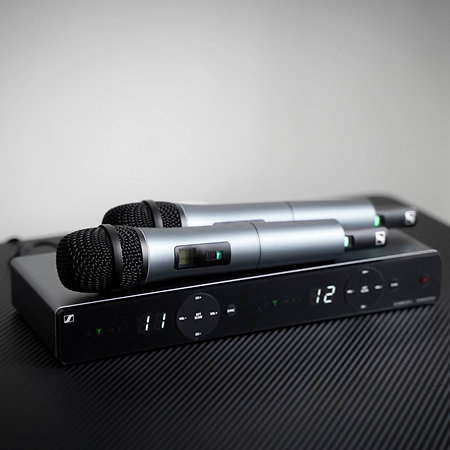

Sennheiser XSW 1-825 DUAL is a 2-channel UHF wireless system, perfect for voice performances and presentations. Get great sound with the famous Sennheiser evolution microphone capsules. Easy set-up with automatic frequency management. Includes 2 SKM 825-XSW handheld transmitters, 1 EM-XSW 1 DUAL receiver and accessories (clips, batteries, power supply). Ideal for professionals looking for reliability and simplicity. The frequency plan of the model shown here is type B (614-638 MHz).
ARTICLE N° 61332
Presentation
The Sennheiser XS Wireless 1 DUAL is a 2-channel wireless system designed for singers and presenters, offering a high-quality, easy-to-use audio solution. This UHF analogue system boasts several key features:
- Sennheiser sound quality: It boasts excellent sound quality thanks to Sennheiser's evolution microphone capsules, renowned for their clarity and reliability.
- Ease of use: The system is designed to be easy to set up and use, with automatic frequency management and remote channel synchronisation.
- 2-channel receiver: Includes an elegant two-channel receiver with integrated antennas, simplifying installation and reducing space requirements.
- Diversity reception: 2-channel antenna switching diversity reception ensures stable, reliable signal transmission.
- Wide bandwidth: Selectable UHF frequencies in a wide bandwidth offer greater flexibility to avoid interference. Switching bandwidth is up to 24 MHz.
- Compatible channels: It supports up to 10 compatible channels, making it suitable for multi-microphone configurations.
The XS Wireless 1 DUAL (or XSW 1 DUAL) is an ideal choice for performers and presenters looking for a reliable, high-performance, easy-to-use wireless system.

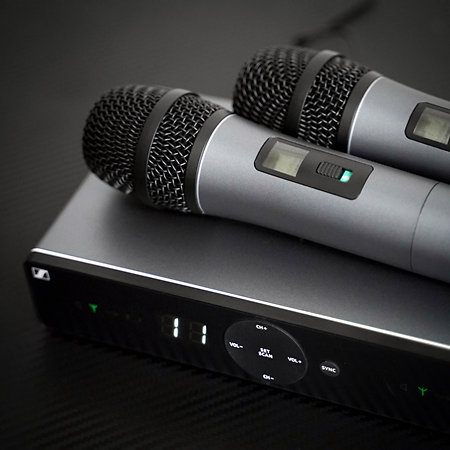

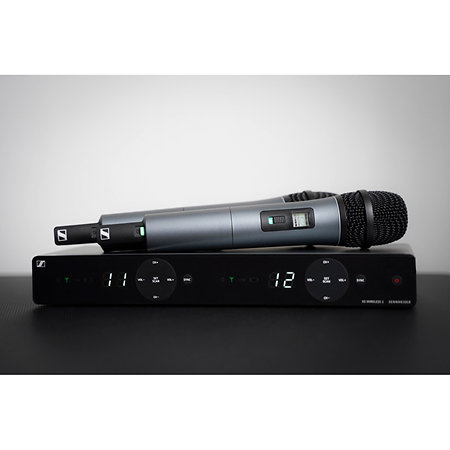

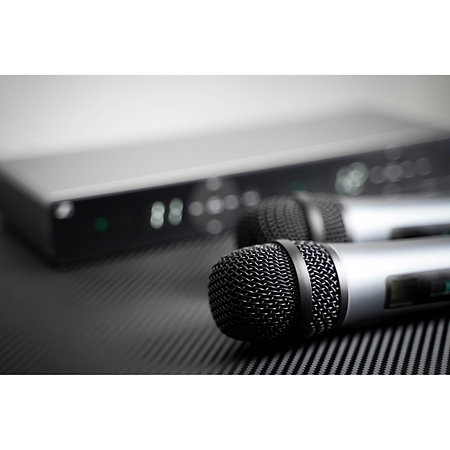

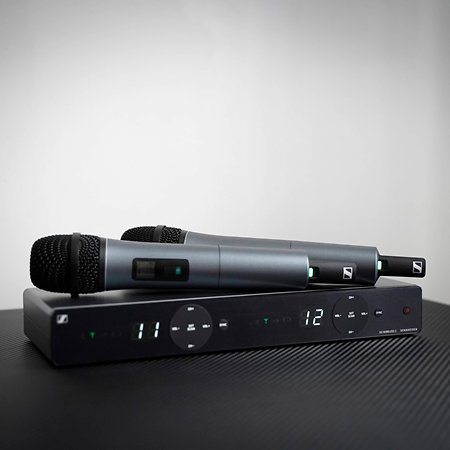

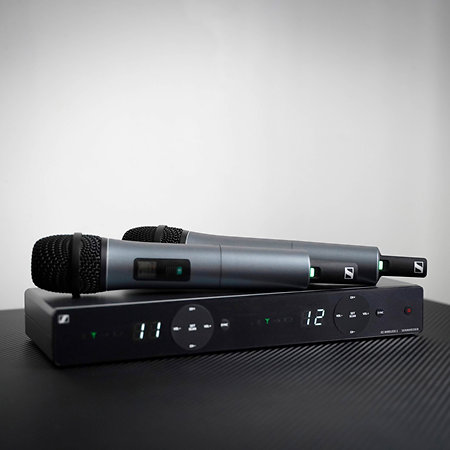

The XSW 1 DUAL-B is an ideal choice for artists and presenters looking for a reliable, high-performance, easy-to-use wireless system. It includes 2 SKM 825-XSW-B handheld transmitters, an EM-XSW 1-DUAL-B fixed receiver, 2 MZQ 1 microphone clips, an NT 12-5 CW+ power supply, and 4 AA batteries.
- Sennheiser sound quality: It boasts excellent sound quality thanks to Sennheiser's evolution microphone capsules, renowned for their clarity and reliability.
- Ease of use: The system is designed to be easy to set up and use, with automatic frequency management and remote channel synchronisation.
- 2-channel receiver: Includes an elegant two-channel receiver with integrated antennas, simplifying installation and reducing space requirements.
- Diversity reception: 2-channel antenna switching diversity reception ensures stable, reliable signal transmission.
- Wide bandwidth: Selectable UHF frequencies in a wide bandwidth offer greater flexibility to avoid interference. Switching bandwidth is up to 24 MHz.
- Compatible channels: It supports up to 10 compatible channels, making it suitable for multi-microphone configurations.
The XS Wireless 1 DUAL (or XSW 1 DUAL) is an ideal choice for performers and presenters looking for a reliable, high-performance, easy-to-use wireless system.
The XSW 1 DUAL-B is an ideal choice for artists and presenters looking for a reliable, high-performance, easy-to-use wireless system. It includes 2 SKM 825-XSW-B handheld transmitters, an EM-XSW 1-DUAL-B fixed receiver, 2 MZQ 1 microphone clips, an NT 12-5 CW+ power supply, and 4 AA batteries.
Other features
-
Sennheiser XSW 1-825 DUAL-B
-
Manufacturer reference : 508264
-
System: 2 wireless transmitters / 1 receiver
-
Frequency range B: (614-638 MHz)
-
Technical specifications :
-
System :
-
Modulation: Wideband FM
-
Switching bandwidth: Up to 24 MHz
-
Frequencies: 80 factory presets (8 banks of 10 channels each)
-
Signal-to-noise ratio : ≥ 103 dBA
-
DHT: ≤ 0.9
-
Transmitter synchronisation: 2.4 GHz, low power OQPSK (active only during synchronisation)
-
EM-XSW 1 DUAL :
-
Receiver principle: Dual superheterodyne
-
Diversity principle: Antenna switching diversity via internal antennas
-
Sensitivity (at peak deviation): < 3 μV at 52 dB(A) rms S/N
-
AF frequency response: 50 to 16,000 Hz (-3 dB)
-
Maximum AF output voltage (at peak deviation, 1 kHz AF) :
-
1/4" (6.3 mm) socket (unbalanced): +6 dBu
-
XLR socket (balanced): +12 dBu
-
Audio adjustment range: 45 dB, adjustable in 5 dB steps
-
Power supply: 12 V DC nom / 300 mA (NT 12-5 CW)
-
Squelch: Adjustable from 3 dBμV to 28 dBμV
-
Line/mic level: 20 dB, switchable
-
Enclosure material: Robust ABS enclosure
-
Dimensions (W x H x D): approx. 320 x 126.5 x 42 mm
-
Weight: approx. 620 g
-
SKM 825-XSW :
-
RF output power: 10 mW
-
AF frequency response: 80-16,000 Hz
-
Power supply (for each microphone): 2 AA batteries, 1.5 V
-
Battery life: Approx. 10 hours
-
Microphone type: Dynamic
-
Directivity: Cardioid
-
Input sensitivity (capsule): 1.5 mV / Pa
-
Transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
-
Housing material: Robust ABS housing
-
Dimensions (L x Ø): Approx. 260 x 50 mm
-
Weight: Approx. 245 g
-
Other features
-
Temperature range :
-
Operating: 0 °C to +40 °C
-
Storage: -20°C to +70°C
-
Selectable UHF frequencies with wide bandwidth
-
Up to 10 compatible channels
-
Automatic frequency management and synchronisation via remote channel for easy configuration
-
Integrated antennas
-
XS Wireless 1 DUAL includes :
-

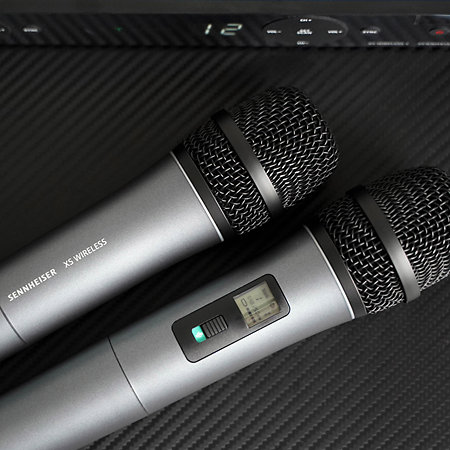

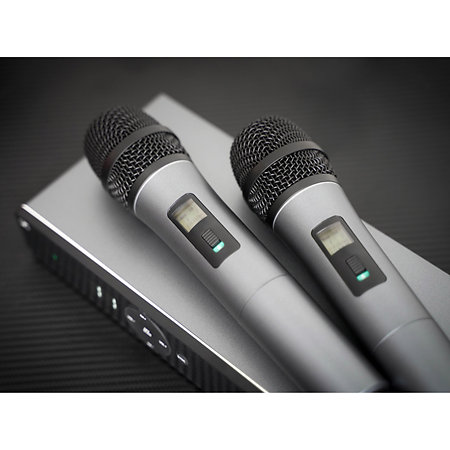

2x SKM 825-XSW portable transmitters with mute switch and e825 dynamic cardioid capsules
-
2x MZQ 1 microphone clamps
-

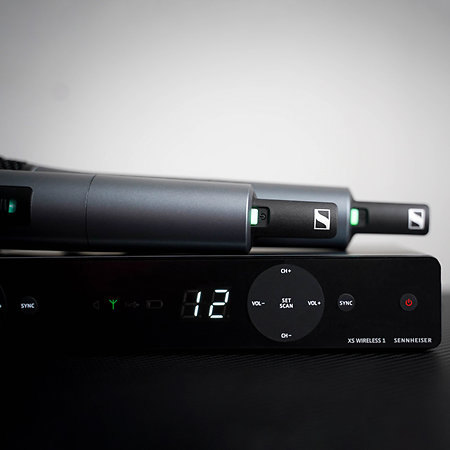

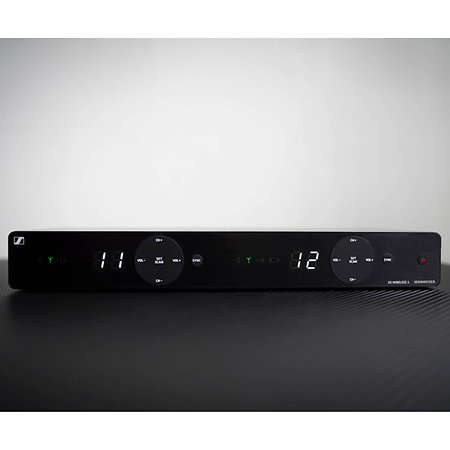

EM-XSW 1 DUAL, 2-channel stationary receiver with internal antennas
-
NT 12-5 CW power supply unit
-
4x AA batteries
-
Quick guide
To find out more...
- Available in other frequency ranges:
- A-Range: 548-572 MHz
- C-Range: 766-790 MHz
- D-Range: 794-804 MHz
- E-Range: 821-832 / 863-865 MHz
- K-Range : 925-937.5 MHz
- GB-Range : 606-630 MHz
- A-Range: 548-572 MHz
- C-Range: 766-790 MHz
- D-Range: 794-804 MHz
- E-Range: 821-832 / 863-865 MHz
- K-Range : 925-937.5 MHz
- GB-Range : 606-630 MHz
