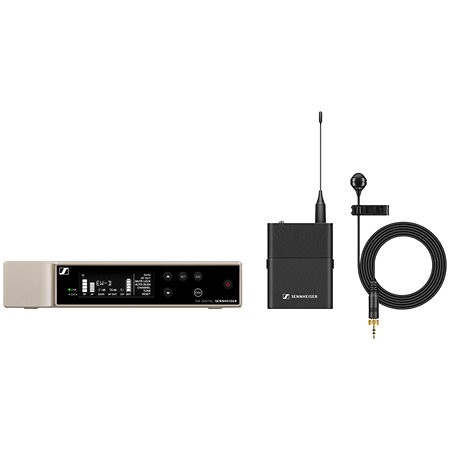

Sennheiser - EW-D ME4 SET (U1/5)
The Sennheiser EW-D ME4 SET (U1/5) digital wireless system makes public speaking easier thanks to its discreet cardioid lavalier microphone and simplified management via the Smart Assist app. The Auto Scan function speeds up set-up, whilst UHF digital transmission ensures a reliable connection. Operating in the 823.200 to 831.800 MHz and 863.200 to 864.800 MHz frequency bands, it is an effective companion for presentations.
Presentation
Digital transmission in the UHF spectrum provides a system designed to offer range, reliability and scalability. Thanks to the EW-D Smart Assist app, the system can be paired and managed remotely via Bluetooth Low Energy. This feature simplifies setup and monitoring of the equipment during use.
The Auto Scan function helps to quickly establish a reliable connection with minimal time and effort. The 134 dB dynamic range preserves signal detail without the need for sensitivity adjustment, according to the manufacturer’s specifications. The low latency of 1.9 ms ensures immediate speech reproduction.
With 2,240 selectable frequencies and up to 90 channels, this system integrates easily into a variety of set-ups. Its pocket-sized transmitter with a metal casing is designed for regular use. Power is supplied by two AA batteries (supplied) or an optional lithium-ion battery.
Other features
-
Sennheiser EW-D ME4 SET (U1/5)
-
Digital wireless system with lavalier microphone
-
.
-
Microphone
-
Microphone: ME 4
-
Transducer type: pre-polarised condenser
-
Polar pattern: cardioid
-
Sensitivity: 40 mV/Pa
-
Maximum sound pressure level: 120 dB
-
.
-
Wireless transmission
-
Technology: UHF digital transmission
-
Frequency range: 823.200 to 831.800 MHz and 863.200 to 864.800 MHz
-
Tuning bandwidth: 56 MHz
-
Selectable frequencies: 2,240
-
Maximum number of channels: up to 90
-
Latency: 1.9 ms
-
.
-
Audio
-
Frequency response: 20 Hz to 20 kHz (-3 dB)
-
Dynamic range: 134 dB
-
Equivalent noise level: 31 dB
-
Audio output level: 18 dBu max.
-
Total harmonic distortion: ≤ -60 dB at 1 kHz at -3 dBfs
-
.
-
Connectivity and control
-
Connector: 3.5 mm
-
App: EW-D Smart Assist App
-
Bluetooth Low Energy connectivity
-
.
-
Power supply
-
2 AA batteries supplied
-
Up to 8 hours’ battery life with the supplied AA batteries
-
Up to 12 hours’ battery life with an optional lithium-ion battery
-
Dimensions: 212 x 44 x 189 mm
-
Weight: 2800 g
To find out more...
- The Auto Scan function helps you establish a reliable connection with minimal time and effort during set-up.
