HF Instruments System

Featuring the Beta 98H/C miniature instrument microphone and SLXD1 transmitter, the SLXD14E 98H L56 system delivers exceptional digital sound quality and reliable RF stability. Designed to meet the demands of musicians and public speakers, it delivers impeccable performance in every situation.

ARTICLE N° 104015
The Shure SLXD14E 98H L56 is a digital wireless system designed to deliver crystal-clear sound reproduction while ensuring optimal RF stability.

Designed for musicians playing wind instruments or percussion, this system combines the Beta 98H/C cardioid miniature microphone with the SLXD1 bodypack transmitter and SLXD4 receiver. It allows complete freedom of movement while maintaining a robust signal and faithful sound quality.

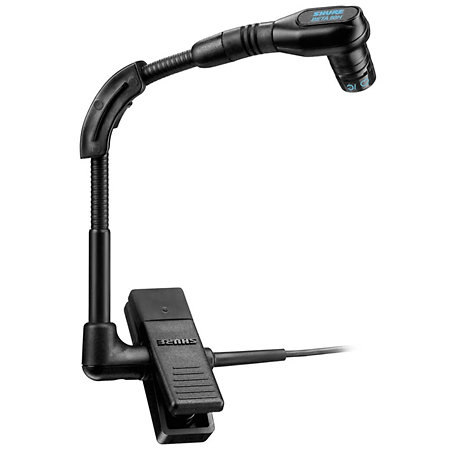

The Beta 98H/C microphone is renowned for its sensitivity and optimized frequency response. Its cardioid polar pattern ensures excellent rejection of ambient noise, minimizing the risk of feedback on stage.

Its flexible gooseneck with integrated clip allows for precise positioning on the instrument, ensuring optimal sound capture. Capable of handling high sound pressure levels, it is ideal for brass and percussion instruments.

The lightweight and robust SLXD1 transmitter provides 24-bit digital transmission, faithfully preserving every nuance of your performance. Thanks to Predictive Digital Diversity technology, transmission stability is ensured, even in dense RF environments.

Its operating range extends up to 100 meters in open field, offering great flexibility on stage or in a conference room. The transmitter's battery life is also a highlight, with up to 8 hours of use on two AA batteries or the Shure SB903 rechargeable battery pack.

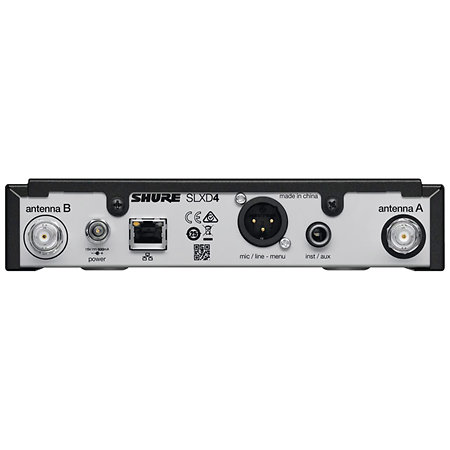

The SLXD4 receiver, meanwhile, simplifies frequency management thanks to its automatic scan and fast infrared synchronization function. It allows for up to 32 simultaneous channels per 44 MHz band (depending on the region), ensuring adaptability to each user's needs. In addition, it is compatible with Wireless Workbench software and the ShurePlus Channels mobile app, facilitating real-time monitoring and control.

This system comes with a complete accessory package: an SLXD4 receiver, an SLXD1 bodypack transmitter, a Beta 98H/C microphone with windshield and integrated preamplifier, antennas, a rack-mount kit, and two AA batteries. The package provides a versatile and powerful solution for musicians and sound professionals seeking quality and reliability.
Microphone set for wind instruments
 Yes
Directivity
 Cardioid
Clip-on microphone
 Yes
Transmission technology
 Digital
Removable antenna
 Yes
Diversity
 Yes
Selectable frequency
 Yes
Capsule type
 Electret
Carrier frequencies
 650 MHz ⭢ 694 MHz
Frequency display
 Yes
Frequency response, low limit
 20 Hz
Frequency response, upper limit
 19 kHz
Connectors
 XLR male 3 pins, Jack female Mono, RJ45, BNC female
19" rack
 Kit 19" included, 1U
Power supply
 Power adapter (included), Battery(ies), Rechargeable battery, Power adapter (included)
Charging system
 Yes (sold separately)
Components
 Instrument HF set
  • Shure SLXD14E-98H L56
  • Wireless Transmission System
  • Frequency Range: L56 (650/694 MHz)
  • System Audio Frequency Response: 20Hz to 20kHz
  • Excellent Audio Quality
  • A/D and D/A Conversion: 24bits/48kHz for a precise and dynamic signal
  • Dynamic Range Greater than 120dB
  • Stable and Robust RF Transmission
  • 44MHz RF Bandwidth
  • Up to 32 Systems Simultaneously
  • 12 Compatible Frequencies per 8MHz TV Channel
  • Frequency Scanner
  • SLXD4E Receiver:
  • Digital Transmission
  • Latency: 3.20ms
  • Approximate Range: 100m
  • Frequency Response: 20Hz/20kHz
  • OLED Display
  • Audio outputs: XLR mic/line level and 6.35mm jack instrument level
  • RJ45 connector
  • 2 detachable antennas
  • Supplied with 19" 1U rackmount kit, single and dual
  • Dimensions: 197 x 152 x 42mm
  • Weight: 816g
  • SLXD1 bodypack transmitter:
  • Digital transmission
  • Frequency response: 20Hz / 19kHz
  • Transmission power: 10mW
  • Approximate range: 100m
  • OLED display
  • Connector: 4-pin mini XLR male
  • Power supply: 2 LR6 batteries or rechargeable lithium-ion battery (optional)
  • Battery life: approximately 8 hours
  • Dimensions: 98 x 68 x 25mm
  • Weight: 89g
  • Shure BEAT 98H
  • Microphone with gooseneck and Horn clip
  • Capsule: condenser
  • Directionality: cardioid
  • Nominal impedance: 150Ω
  • Frequency response: 20Hz // 20kHz
  • Self-noise: 31 dB
  • Max SPL: 163dB
  • Sensitivity: -56dBV / Pa
  • Connection: 4-pin mini XLR female
  • Cable: 3 m
  • Supplied with: windshield + carrying pouch
  • Weight: 156g
Shure - SLXD14E 98H L56
Shure - SLXD14E 98H L56
737,50 € excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3  years
