Multi-effects

Bring the power of Waves plugins to your Dante network with this complete One-C server + WSG Bridge package: real-time processing, maximum flexibility.

ARTICLE N° 106889

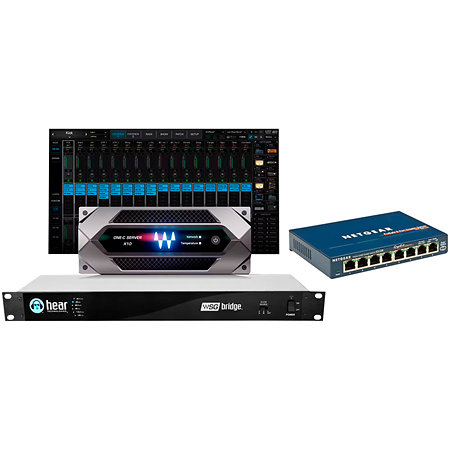

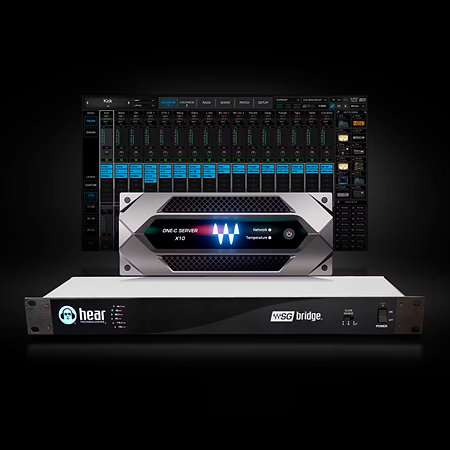

This package combines the One-C SoundGrid server with the Dante WSG Bridge interface to enable you to use Waves plugins over a Dante network. You can route up to 64 audio channels in each direction between Dante and SoundGrid, while maintaining ultra-low latency. Ideal for broadcast, theatre or live applications, this combo opens the door to real-time plugin processing, without disrupting your existing digital audio infrastructure.

The One-C server supports DSP with a latency of less than 0.8 ms, even at 96 kHz. Equipped with an Intel i3-10300 processor and 8GB of RAM, it remains stable and silent, even in touring environments. Its half-rack format makes it easy to fit into any flight case. It's the perfect tool for those who want to handle heavy sessions without ever straining their main computer.

The Dante-SoundGrid WSG Bridge enables bidirectional dialogue between the two protocols. Whether you want to inject plugins into your Dante console or integrate SoundGrid into an existing stream, this 1U rack-mount box makes the link effortless. With clock synchronisation via Ethernet and redundancy options, it ensures stable communication in the most demanding environments.

The package also includes SuperRack SoundGrid software, designed for live use: up to 64 multi-channel stereo racks, multitouch interface and ultra-flexible routing. It's the interface of choice for mixing fast, well and with precision. Add to that a Waves-certified 8-port switch and two CAT6 cables and you're all set, with nothing to configure.

Finally, this bundle includes a one-year subscription to Waves Essential, 110 reference mixing plugins (EQ, compressors, spatialization, etc.). So you get a complete, ready-to-use solution, ideal for sound engineers who want to beef up their Dante environment without going back to the drawing board. A logical, professional and sustainable choice.
USB port
 Yes
Power supply
 Power adapter (included)
19" rack
 2U, 1U
  • Waves - Pack One-C SoundGrid Server + Dante Converter
  • SoundGrid network audio pack + Dante interface
  • Components included :
  • One-C SoundGrid Server
  • WSG Bridge Dante/SoundGrid converter
  • Waves SuperRack SoundGrid software
  • 1-year subscription to Waves Essential plugins (110 plugins)

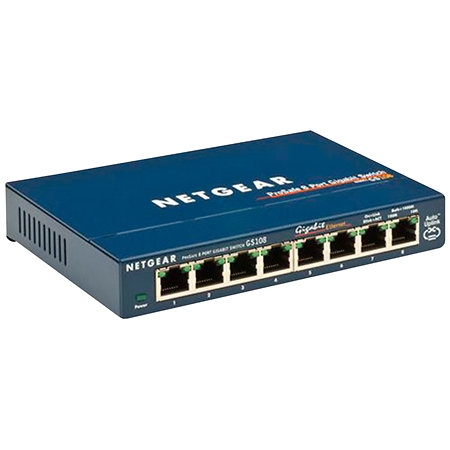

  • Waves approved 8-port network switch
  • 2 Waves approved CAT6 Ethernet cables

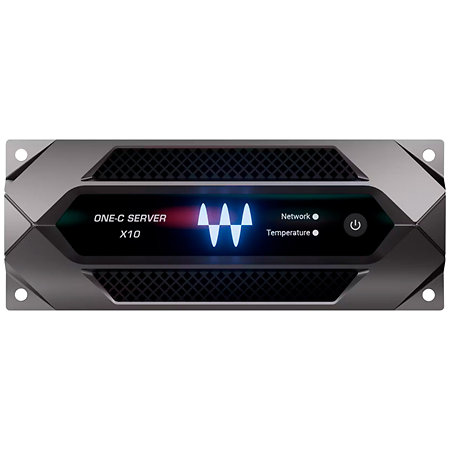

  • One-C SoundGrid Server
  • Processor: Intel® i3-10300 (10th generation)
  • RAM: 8 GB RAM
  • Motherboard: Gigabyte GA-IMB410N
  • Network card: Intel I211
  • Storage: high-speed internal SSD

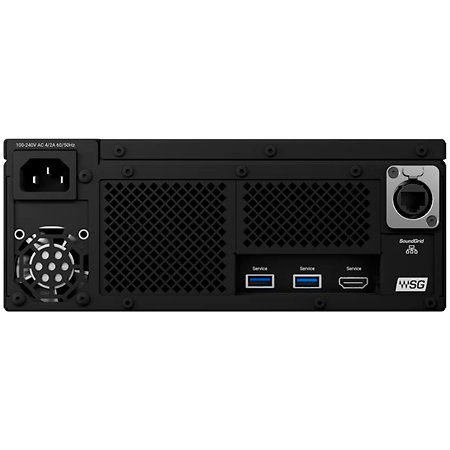

  • Connectivity :
  • 1 x RJ45 EtherCon port (SoundGrid network audio)
  • 2 x USB 3.0 ports (service only)
  • 1 x HDMI (service only)
  • Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Minimum latency: 0.8 ms
  • Cooling : Silent, self-regulating fan
  • Format: 2U half-rack, robust metal enclosure
  • Power consumption: 65 W
  • Operating temperature range: 10 to 35°C
  • Maximum temperature: 40°C
  • Dimensions: 220 x 86 x 284 mm
  • Unit weight: 3.4 kg
  • WSG Bridge - Dante to SoundGrid converter
  • Format: 1U rack
  • Network compatibility: Dante (100BaseT / 1000BaseT) and SoundGrid (1000BaseT)
  • Audio channels supported :
  • 64 inputs/outputs @ 44.1 kHz or 48 kHz
  • 32 inputs/outputs @ 88.2 kHz or 96 kHz
  • Typical latency (unidirectional) :
  • 0.787 ms @ 44.1 kHz
  • 0.778 ms @ 48 kHz
  • 0.580 ms @ 88.2 kHz
  • 0.520 ms @ 96 kHz
  • Synchronisation: Dante master clock, SoundGrid or external source (future Word Clock port)
  • Connectors :
  • 1 x RJ45 Dante port
  • 1 x RJ45 SoundGrid port
  • 1 x USB 2.0 port (firmware update)
  • HBUS in/out ports (future expansion)
  • Sampling supported: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
  • Power supply: 48 VDC, 400 mA (redundancy possible, optional external power supply)
  • External power supply required: 100-240 VAC, 50/60 Hz
  • Dimensions: 483 x 216 x 44.5 mm
  • Weight: 2.8 kg
Waves - Pack One-C SoundGrid Server + Dante Converter
Waves - Pack One-C SoundGrid Server + Dante Converter
6 658,33 € excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3  years
