Multi-effects

A powerful duo to bring out the full potential of your Yamaha console and integrate Waves plugins into your live mixes with imperceptible latency.

ARTICLE N° 106741
Do you mix on a Yamaha CL, M7CL, LS9 or PM5D console and are looking for greater precision, flexibility and processing quality? The Waves One-C + WSG-Y16 V2 expansion card pack lets you take your mix into a whole new dimension, integrating the power of Waves plugins directly into your console - with fluidity that borders on instantaneous.

The WSG-Y16 V2 card installs like a conventional extension in the console and creates a direct gateway to the SoundGrid environment. It opens the door to 100% software processing with ultra-low latency, up to 64 channels at 48 kHz or 32 channels at 96 kHz. What's more, you can record multitrack, playback, or even synchronise several Yamaha consoles together using the SoE protocol.

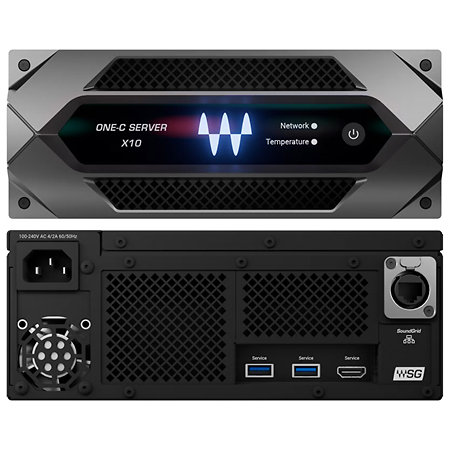

To manage all this power, the One-C DSP server takes over. Compact but robust, this half-rack format box houses an Intel i3-10300 processor and 8GB of RAM. It can run hundreds of plugins simultaneously, with latency as low as 0.8 ms. Whether you're on stage or on tour, you'll enjoy reliable, stable processing, even in the toughest conditions.

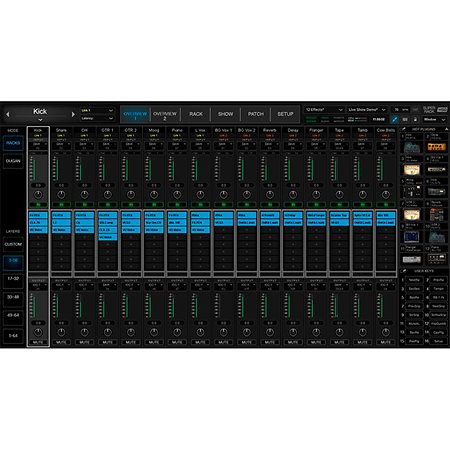

The icing on the cake: SuperRack SoundGrid software is included, allowing you to load, organise and automate your plug-in chains as you would in the studio. And because Waves thinks of everything, an approved 8-port network switch, Cat 6 cables and 1 year's subscription to Waves Essential (with over 110 reference plugins) are included.

This package is clearly aimed at demanding live sound engineers, technical service providers and venues who want to maximise the capabilities of their Yamaha equipment without starting from scratch. A clean, compact solution that's ready to boost your workflow without weighing you down with a gas factory.
USB port
 Yes
Power supply
 Power adapter (included)
19" rack
 2U

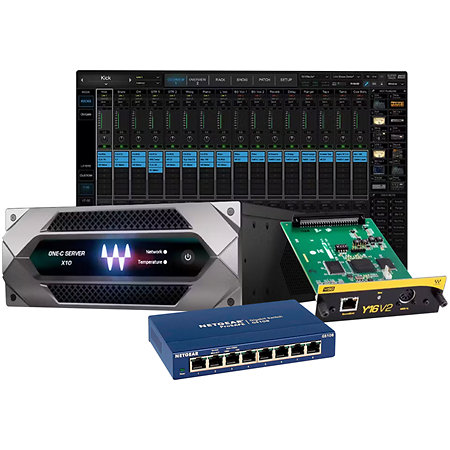

  • Waves Pack One-C SoundGrid Server + WSG-Y16 V2 Yamaha card
  • Audio DSP pack for live mixing with SoundGrid network interface
  • Package content :
  • 1 Waves One-C SoundGrid server
  • 1 Yamaha WSG-Y16 V2 expansion card

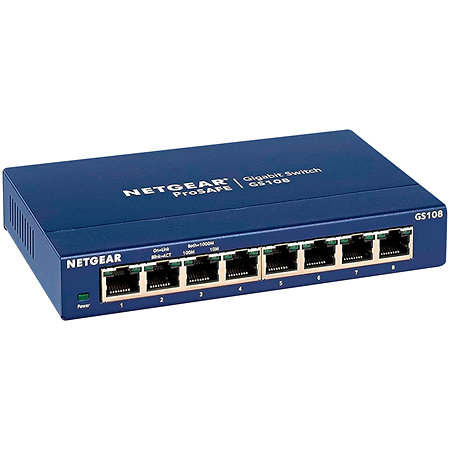

  • 1 Waves-certified 8-port network switch
  • Waves approved Cat 6 Ethernet cables
  • Waves SuperRack SoundGrid software
  • 1-year Waves Essential subscription (110 plugins included)
  • Server processor: Intel Core i3-10300 (10th generation)
  • RAM: 8 GB RAM
  • Audio latency: Up to 0.8 milliseconds at 44.1/48/88.2/96 kHz
  • Plugin compatibility: Up to several hundred plugins simultaneously
  • Server format: 2U half-rack, all-metal enclosure
  • Server connections :
  • 1 x RJ45 Neutrik EtherCON port
  • 2 x USB 3.0 (for maintenance only)
  • 1 x HDMI (for maintenance only)
  • WSG-Y16 V2 card :
  • 16 channels at 44.1/48 kHz, 8 channels at 88.2/96 kHz
  • Direct connection to SoundGrid servers
  • Ultra-low latency
  • Clock synchronisation via Ethernet (SoE)
  • MIDI input and control from the console
  • Up to 4 compatible cards per console
  • Yamaha console compatibility: PM5D, DSP5D, M7CL, LS9-16, LS9-32, DM1000, DM2000, DME64N, DME24N, 02R96, 01V96, TX4n, TX5n, TX6n, CL1, CL3, CL5
  • Server power supply: 100-240 V AC, 50/60 Hz, 65 W max
  • Operating temperature: 10°C to 35°C (max. 40°C)
  • Server dimensions: 220 x 86 x 284 mm
  • Server weight: 3.4 kg
Waves - Pack One-C SoundGrid Server + Ext Card Yamaha
Waves - Pack One-C SoundGrid Server + Ext Card Yamaha
3 998,33 € excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3  years
