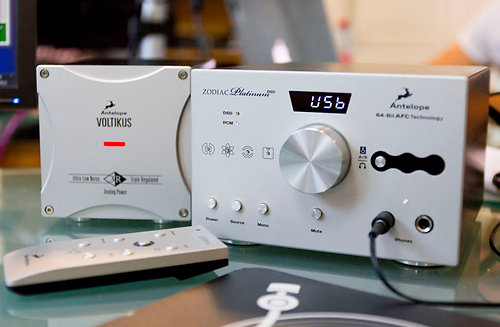

Antelope Audio - Zodiac Platinum DSD DAC
These models in stock might interest you:
Get a pro sound at home, thanks to the DSD DAC Zodiac Platinum. This high quality converter with a sampling rate of 384 kHz has a USB socket. By connecting an mp3 player or USB stick to this jack, the Zodiac Platinum DAC will process the audio data to dramatically increase the sound quality of the signal being transmitted to the amplifier. Close your eyes, listen and enjoy!
Specifications
-
Inputs:
-
10M / WC on BNC connector: 10MHz (Frequencies 44.1 to 384 kHz).
-
1 x AES / EBU on XLR connector (Frequencies 44.1 to 192 kHz).
-
2 x S / PDIF on RCA connector (Frequencies 44.1 to 192 kHz).
-
2 x RCA Analog -10dBv asymmetric (2V rms max).
-
2 x Analog TRS Jacks + 4dBu balanced (26 dBu max).
-
2 x Optiquel on TOSLINK connector.
-
Outputs:
-
2 x analog balanced XLR connectors.
-
1 x AES / EBU De-Jittered, 110 Ohms.
-
2 x S / PDIF De-Jittered, 75 Ohms.
-
2 x analog on RCA connector.
-
Dual headphone outputs on 6.35mm TRS Jack 20 dBu @ 0dBFS. 120 or 0 Ohm switchable.
-
Dynamic Range: 129 dB.
-
THD + N: 0.0004%.
-
USB: 2.0 Hi-Speed. Data stream up to 480 Mbits / 384kHz.
-
4th generation clock system based on the 64 bit Acoustically Focused Clocking system and the crystal controlled oscillator.
-
Stability of the clock <+/- 0.02 PPM.
-
Aging Clock <1 ppm per year.
-
Sampling frequencies: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (352.8kHz and 384kHz via USB only).
-
Included: remote control, manual, USB cable, Toslink optical cable, power cable, proprietary cable connecting the power supply and the DAC.
Spotlight on
Antelope Audio has been a leading manufacturer of high-end professional and consumer audio devices for over 20 years, harnessing the power of digital audio without sacrificing the warmth typically associated with analog devices. The FPGA and Synergy Core (FPGA + DSP) technologies built into its audio interfaces allow for highly accurate component-level modeling of legendary studio equipment such as vintage EQs and compressors, exceptional microphones, guitar amps and cabinets, tube mic presets, tape saturation, and more to be found in the Synergy Core interfaces and modeling mics.
