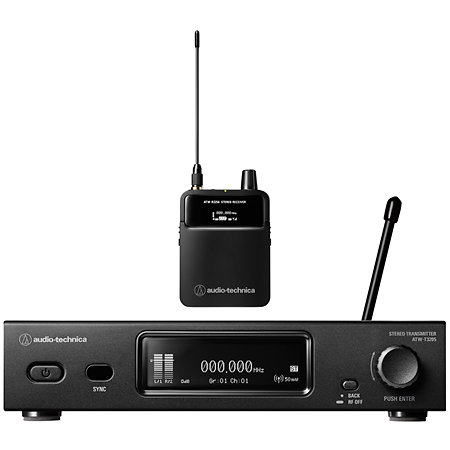

Audio Technica - ATW-3255 EG2
Audio-Technica's ATW-3255 EG2 system combines the ingredients of a complete wireless in-ear monitor system, designed to accompany every artist in a sometimes hectic stage environment, with a technical ease that is immediately reassuring. The system features stable transmission, precise monitoring and a construction that inspires confidence even when the stage turns into a veritable anthill of sound. The transmitter-receiver combo orchestrates fluid coordination, and the associated headphones sculpt a lively stereo image that helps you find your bearings amidst the spotlights. You get a coherent package, calibrated to follow your every move, and which still retains a very professional charm despite its accessible approach. In short, a companion ready to follow you from curtain-up to the last encore, with a smile to boot.
Presentation
The receiver associated with the ATW-3255 Audio-Technica system is a discreet, lively companion, capable of feeding nervous headphones without losing smoothness. You adjust the EQ, dose the panning, tame the limiter: each setting brings a pleasant nuance, especially when your soundstage changes with the scales. The OLED display is a great help, so you don't have to squint while everyone around you is getting excited. Gain variations follow on from each other with surprising consistency. You can feel that this receiver has clearly been designed for service providers who like to keep everything under control.
As soon as you plug in the XLR inputs, you'll enjoy a clean, robust signal that's flexible enough to adapt to a variety of recordings. Network management opens up interesting possibilities when you supervise several channels from a single workstation. Infrared synchronisation makes for a very pleasantly fast response in the heat of battle. You'll find yourself configuring the whole thing without being surprised by the pressure. The feeling of technical agility is mixed with a welcome form of serenity.
The ATH-E40 headphones, designed by Audio-Technica and supplied with the ATW-3255, feature Dual Phase Push-Pull transducers capable of shaping a dense signal with a clarity that surprises from the very first listen. You'll find yourself surrounded by a precise soundstage, almost sculpted around you. The ear-tips modulate the isolation with great flexibility, allowing you to adapt to open stages as well as more subdued rooms. You feel that the music breathes differently depending on your settings, and this little chameleon-like quality adds a special charm.
The ATW-3255 EG2 can be controlled via Wireless Manager software. It will help you keep an eye on channels, levels and any RF conflicts. This interface makes it surprisingly easy to plan your own deployment. You get a real dashboard capable of anticipating radio jams without weighing you down.
Features
Other features
-
Audio-Technica ATW-3255 EG2
-
Wireless in-ear monitoring system
-
Series : 3000 IEM
-
Transmission: FM (UHF)
-
Operating range : 90 m
-
Carrier frequencies: EG2
-
Bandwidth: 138 MHz (580 ⭢ 714 MHz)
-
Frequency step: 25 kHz
-
Max. number of simultaneous channels: 49 / band
-
Frequency response: 40 Hz ⭢ 14 kHz
-
Dynamic range: > 90 dB (A-weighted)
-
Total harmonic distortion: < 0.2
-
Fast infrared synchronisation between transmitter and receiver
-
Wireless Manager software for RF scanning and network management
-
Scalable system: add receivers without changing the transmitter?
-
.
-
Complete wireless In-Ear return package, including :
-
.
-

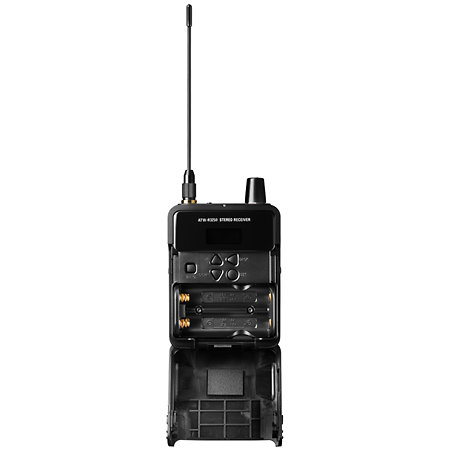

Audio-Technica ATW-R3250 EG2
-
Wireless pocket receiver
-
RF sensitivity: S/N 20 dBuV
-
Headphone output power: 40 mW
-
2-band EQ
-
Limiter: -30 dB to 0 dB
-
Display: OLED screen
-
Connections :
-
Headphone output: mini-jack TRS ∅3.5 mm
-
50 Ω antenna: SMA
-
Power supply: 2 x 1.5 V AA / LR6 batteries (not supplied)
-
Battery life: 4 ⭢ 13 h depending on the type of batteries used
-
Contacts for recharging base (ATW-CHG3 sold separately)
-
Dimensions: 82 x 64 × 23 mm
-
Receiver weight: 102 g
-
+
-
Audio-Technica ATW-T3205 DF2
-
Rack-mount wireless transmitter
-
RF power High 50 mW & Low 10 mW
-
Display : OLED screen
-

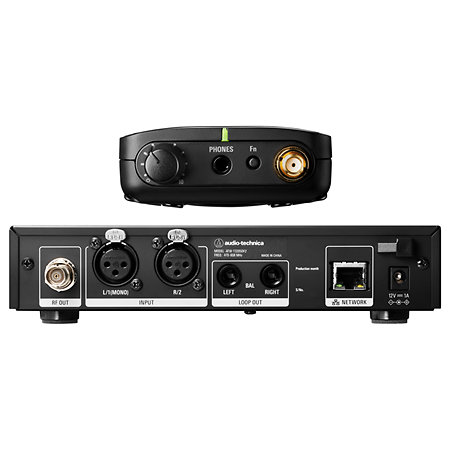

Connections :
-
Inputs: 2x XLR
-
Outputs : 2x Jack TRS ∅6,35 mm
-
50 Ω antenna: BNC
-
100BASE-T network: RJ-45
-
Power supply: 100-240 V∿ // 12 V⎓ 1 A adapter
-
Standard format 19" 1U rack
-
Rack mounting kit supplied
-
Dimensions: 210 × 191 × 44 mm
-
Transmitter weight: 1.1 kg
-
+
-

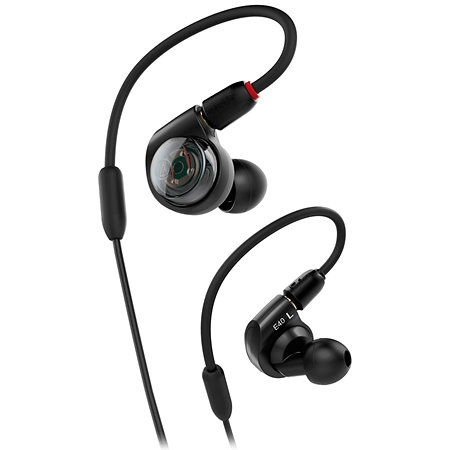

Audio-Technica ATH-E40
-
In-ear monitoring headphones
-

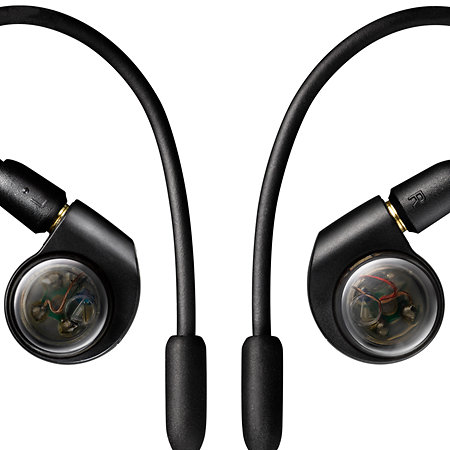

Transducer technology: Dual Phase Push Pull Drivers
-
Frequency response : 20 Hz ⭢ 20 kHz
-
Sensitivity : 107 dB/mW
-
Impedance: 12 Ω
-
Specially designed shells for maximum isolation
-

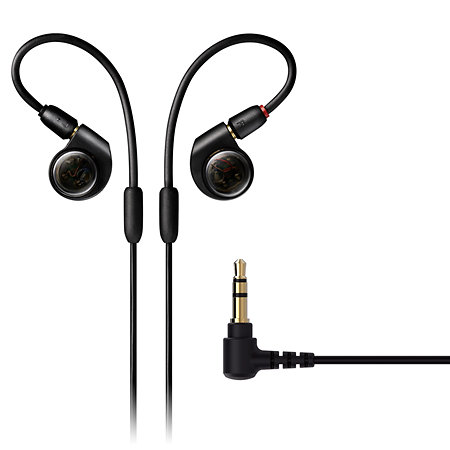

Connectors: 3.5 mm stereo mini jack
-

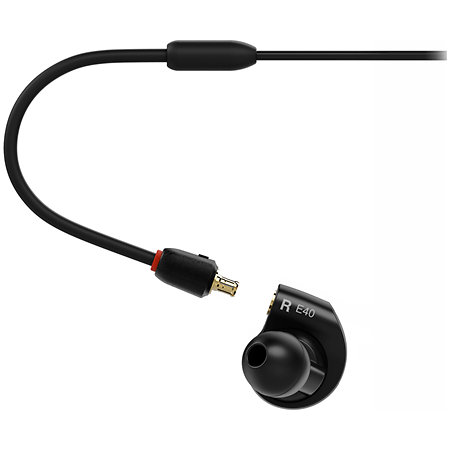

Cable: 1.6 m with A2DC detachable connectors
-

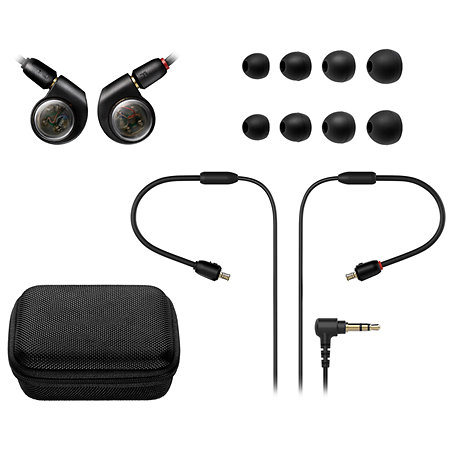

Supplied accessories:
-
XS / S / M / L silicone tips
-
Protective case
-
Weight : 10 g
To find out more...
With a complete wireless in-ear monitor set like the ATW-3255 Audio-Technica, don't forget to include a set of high-performance NiMH batteries, as their stable autonomy will support the receiver over long performances without increasing stress.
