Speaker driver

The B&C Speakers 12MH801 8 Ohm is a 12-inch loudspeaker designed for powerful two-way systems, with high efficiency and extended response down to 5 kHz. It offers an excellent compromise between midrange clarity and sound pressure capability.

ARTICLE N° 105010
In the family of 12-inch speakers, the 12MH801 from B&C Speakers is a serious solution when you want to combine midrange precision and power handling.

Its format makes it ideal for applications where clarity of message is paramount, particularly in two-way configurations where it needs to be at ease with both vocals and rhythm instruments. And that's precisely where this model comes into its own.

With a 76 mm aluminium voice coil, this loudspeaker has a good heat dissipation capacity and a very good dynamic response. What surprises from the very first tests is its responsiveness: it follows without dragging, with a frank but never aggressive attack.

B&C's engineers opted for a ferrite motor with an aluminium demodulation ring - a judicious choice that keeps distortion in check without weighing down the design unnecessarily.

Another strong point is its bandwidth: from 55 to 5000 Hz, it comfortably covers the bass zone and the lower end of the vocal spectrum, without straining. This opens the door to a variety of configurations, whether as stage monitors, line arrays or compact front speakers.

And despite its performance, the 12MH801 takes up a reasonable amount of space, with a depth of 135 mm and a well-balanced weight.

This loudspeaker is aimed at technicians and integrators looking for a reliable transducer that's at ease over a wide frequency range, capable of taking a beating without flinching, and, above all, at the service of sound. No frills here: this is a component that does what is expected of it, and does it well.

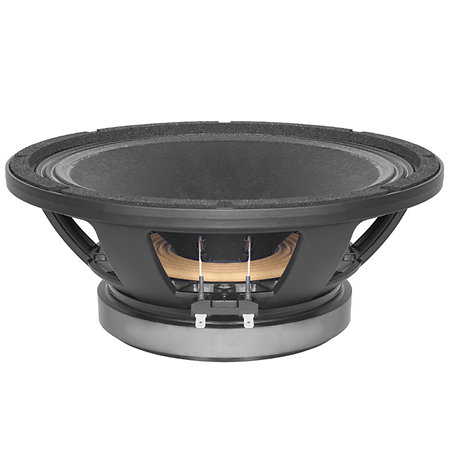

  • B&C Speakers 12MH801 8 Ohm
  • Cone driver
  • Nominal diameter: 320 mm (12")
  • Nominal impedance: 8 ohm
  • AES power handling: 350 W
  • Program power: 700 W
  • Sensitivity (1W/1m): 100 dB
  • Useful bandwidth: 55 Hz - 5000 Hz
  • Coil diameter: 76 mm (3")
  • Coil wire type: Aluminium
  • Coil support: Fibreglass
  • Winding depth: 16 mm
  • Air gap depth: 8 mm
  • Magnet material : Ferrite
  • Flux density: 1.45 T
  • Suspension shape: Accordion
  • Type of spider : Single
  • Diaphragm treatment: None
  • Demodulation ring: Aluminium
  • Resonance frequency (Fs): 53 Hz
  • Qts : 0,21
  • Qes / Qms : 0,22 / 5,6
  • Vas: 76 dm³
  • Xmax linear: ±6 mm
  • Emissive surface area (Sd): 522 cm2
  • Force factor (BL): 18.6 T-m
  • Recommended volume: 70 to 80 dm³

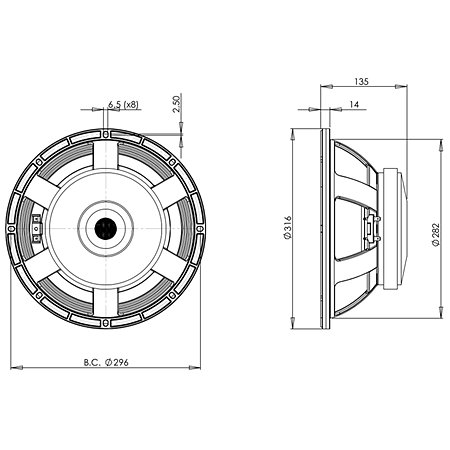

  • Outside diameter: 316 mm
  • Flush-mounted diameter: 282 mm
  • Mounting circle diameter: 296 mm
  • Total depth: 135 mm
  • Front panel thickness: 14 mm
  • Volume occupied by loudspeaker: 3.3 dm³
  • Net weight: 7.4 kg
  • Weight with packaging: 8.3 kg
B&C Speakers - 12MH801 8 Ohm
B&C Speakers - 12MH801 8 Ohm
152,50 € excl VAT
including eco-part : 0,90 €
Out of stock
Contact us for delivery times
Guarantee 3  years
