B&C Speakers - 12NDL76 16 Ohm Push Buttons
160,83 €
excl VAT
including eco-part : 0,90 €
Out of stock
Contact us for delivery times
Guarantee 3
years
Jessie
Louis
Do you need help?
Speaker driver
The B&C Speakers 12NDL76 16 Ohm is a 12-inch speaker with a neodymium motor, 76 mm voice coil and 100 dB output, ideal for powerful, lightweight two-way systems.
ARTICLE N° 106181
Presentation
The B&C 12NDL76 16 Ohm loudspeaker, also referred to as 12-NDL76 or 12 NDL 76, is a high-performance solution for all broadcast systems where the combination of light weight, power handling and acoustic efficiency is a priority. With its internal neodymium slug motor, this 12-inch model offers a fast, linear bass and low-midrange response.
Equipped with a 76 mm aluminium voice coil, this loudspeaker can handle up to 800 watts in programme power, while maintaining excellent thermal stability thanks to a ventilated air gap.
Its high efficiency of 100 dB maximises the SPL without placing excessive demands on the amplification. It's the perfect choice for compact two-way speakers or mid-bass cabinets in touring or fixed configurations.
The 16 Ohm version of the 12NDL76 is fitted with an aluminium basket, a double-roller suspension and an exponential profile cone. It offers an extended response from 50 Hz to 2 kHz, perfectly suited to crossover to a 1-inch motor.
Its linearity, combined with low harmonic distortion (thanks to a well-optimised geometry), makes it a reliable, high-performance component in bass-reflex loads of around 40 litres tuned to 65 Hz.
Compact, powerful and light (just 3.9 kg), the B&C Speakers 12NDL76 16 Ohm Push Buttons is the obvious choice for PA professionals looking for a balanced 12-inch neodymium speaker that's both high-performance and easy to integrate.
Equipped with a 76 mm aluminium voice coil, this loudspeaker can handle up to 800 watts in programme power, while maintaining excellent thermal stability thanks to a ventilated air gap.
Its high efficiency of 100 dB maximises the SPL without placing excessive demands on the amplification. It's the perfect choice for compact two-way speakers or mid-bass cabinets in touring or fixed configurations.
The 16 Ohm version of the 12NDL76 is fitted with an aluminium basket, a double-roller suspension and an exponential profile cone. It offers an extended response from 50 Hz to 2 kHz, perfectly suited to crossover to a 1-inch motor.
Its linearity, combined with low harmonic distortion (thanks to a well-optimised geometry), makes it a reliable, high-performance component in bass-reflex loads of around 40 litres tuned to 65 Hz.
Compact, powerful and light (just 3.9 kg), the B&C Speakers 12NDL76 16 Ohm Push Buttons is the obvious choice for PA professionals looking for a balanced 12-inch neodymium speaker that's both high-performance and easy to integrate.
Other features
-
B&C Speakers 12NDL76 16 Ohm
-
12-inch cone loudspeaker
-
Nominal impedance: 16 Ohm
-
Rated power: 400 W
-
Program power: 800 W
-
Sensitivity: 100 dB
-
Frequency range: 50 Hz - 2000 Hz
-
Coil diameter: 76 mm (aluminium)
-
Coil support: Fibreglass
-
Inner/outer winding
-
Winding height: 19 mm
-
Air gap depth: 10 mm
-
Xmax: 7 mm
-
Xvar: 7 mm
-
Radiant surface area (Sd): 522 cm2
-
Moving mass (Mms): 56 g
-
Inductance (Le): 1.7 mH
-
DC resistance (Re): 10.2 Ohm
-
BL factor: 24.7 T-m
-
Resonance frequency (Fs): 50 Hz
-
Qts: 0.27 / Qes: 0.3 / Qms: 3.8
-
Vas: 69 dm³
-
Efficiency: 2.8
-
Magnet system: Neodymium (internal slug)
-
Salad bowl: Aluminium
-
Cone: Paper
-
Suspension: Double roller
-
Cone shape: Exponential
-
Faceplate shape: Cylindrical
-

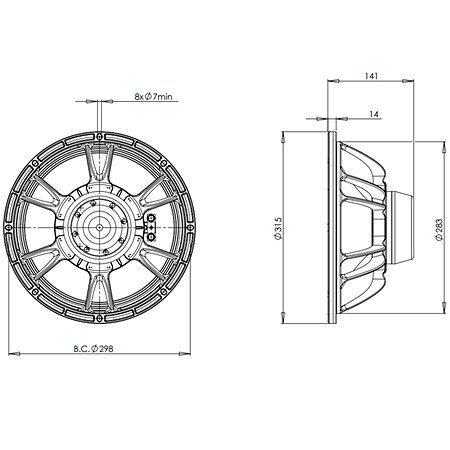

Outside diameter: 315 mm
-
Flush-mounted diameter: 283 mm
-
Centre diameter: 298 mm
-
Depth: 141 mm
-
Occupied air volume: 2.5 dm³
-
Delivery unit: 1 piece
-
Package dimensions: 360 x 360 x 200 mm
-
Net weight: 3.9 kg
-
Shipping weight: 4.5 kg
