FBT Install - MDA 4800
2 075 €
excl VAT
including eco-part : 3,10 €
Out of stock
Guarantee 5
years
Jessie
Louis
Do you need help?
Class D amplifier equipped with a 4-channel DSP with graphic interface, the MDA 4800 has a total power of 3000W. Usable in high or low impedance, it can power 4 lines of 800W or 2 of 1600W.
ARTICLE N° 89042
Presentation
The new FBT MDA4000 series power amplifiers combine a 4-channel DSP and feature a flexible Class D power supply.
This series offers 3 4-channel models, with a total power from 500W to 3000W in Hi-Z or Low-Z output configuration.
Their compact and lightweight design makes them ideal for use in multi-zone applications in small and medium-sized installations, either in stand-alone mode or in complex centralized audio systems.
All models offer multiple analog and digital input options, a built-in wireless access point, a wired LAN connection and programmable control inputs that can be used for remote control.
The MDA series can meet the requirements of each speaker system, providing a dynamic listening experience and a more satisfying environment. In addition, FBT's custom speaker libraries help the installer make setup quick and easy.
This series offers 3 4-channel models, with a total power from 500W to 3000W in Hi-Z or Low-Z output configuration.
Their compact and lightweight design makes them ideal for use in multi-zone applications in small and medium-sized installations, either in stand-alone mode or in complex centralized audio systems.
All models offer multiple analog and digital input options, a built-in wireless access point, a wired LAN connection and programmable control inputs that can be used for remote control.
The MDA series can meet the requirements of each speaker system, providing a dynamic listening experience and a more satisfying environment. In addition, FBT's custom speaker libraries help the installer make setup quick and easy.
Features
Canals
4
Effects
Audio signal processed by DSP
Amplification type
Class D
Peak power (W)
6000
RMS power (W)
3000
Weight
7,4 kg
Power supply
220 V
19" rack
Kit 19" included, 2U
Input channels
4
Connectors
Terminal block / Euroblock, RCA female
Packaging
Single unit
Other features
-
FBT MDA 4800
-
Multichannel power amplifier
-
Series: MDA4000
-
Class D
-
Low impedance: 4 / 8 / 16Ω
-
High impedance: 70V / 100V line
-
Total power: 3000W
-
2.7Ω: 2x 800W
-
4Ω: 2x 800W
-
8Ω: 2x 400W
-
16Ω: Not recommended
-
4-channel DSP: input, zone, output and speaker processing
-
Frequency response: 20Hz - 20kHz
-
Signal to noise ratio: >106dBA
-
Distortion: < 0.05%
-
Output voltage:
-
85Vp / 170Vpp (unloaded)
-
Bridged 170Vp / 340Vpp (unloaded)
-

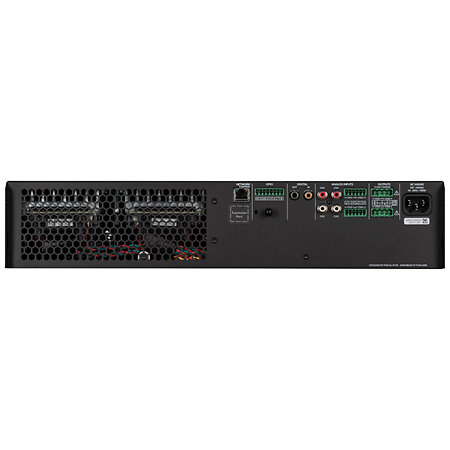

Connections:
-
4 balanced/unbalanced analog inputs
-
4 speaker outputs
-
8-pin GPIO interface: remote control features
-
100/1000 BASE-T Ethernet network connection
-
Integrated Wi-Fi access point
-
SPDIF digital inputs and outputs: System expansion
-
Integrated web server and intuitive user interface
-
Protections against: short circuit, under/over voltage, overheating
-
Power supply: 220V
-
Standard 19" rack format, 2U
-
Dimensions: 440 x 320 x 88mm
-
Weight: 7.9kg
To find out more...
- 4-channel DSP configuration, including: input processing, zone processing, output and speaker processing
- SPDIF digital inputs and outputs used to connect other compatible equipment or to digitally expand the system
- Noise masking for offices and medical facilities
- Automatic power sharing
- Temperature-controlled cooling fan speed
- Automatic standby mode
- Universal power supply with PFC
- Energy Star compliant
- SPDIF digital inputs and outputs used to connect other compatible equipment or to digitally expand the system
- Noise masking for offices and medical facilities
- Automatic power sharing
- Temperature-controlled cooling fan speed
- Automatic standby mode
- Universal power supply with PFC
- Energy Star compliant
