Preamplifier

The Radial Tonebone PZ Pre is a versatile acoustic preamplifier designed to provide optimum control of acoustic instruments. Ideal for guitarists, violinists or harpists, it combines advanced features such as parametric EQ and multiple outputs, ensuring very good sound quality.

ARTICLE N° 100332

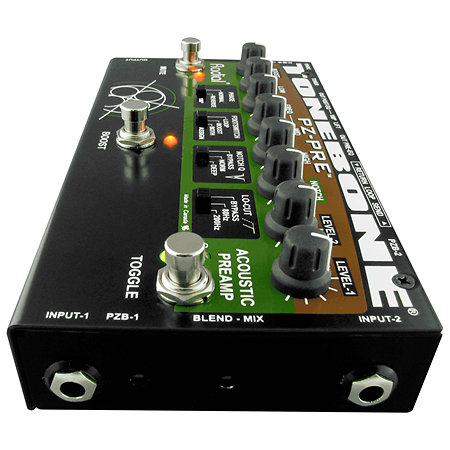

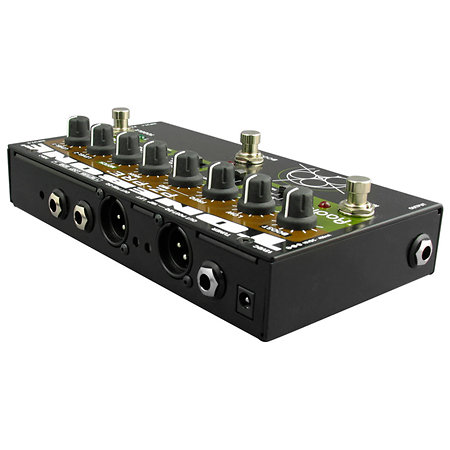

The Radial PZ-Pre is a high-quality acoustic preamplifier designed to meet the diverse needs of musicians playing acoustic instruments. This device stands out for its versatility and efficiency, allowing optimized signal management for different types of sound configurations, whether on stage or in the studio.

Equipped with two independent inputs, the PZ-Pre offers the possibility to connect and switch between two different instruments, an ideal feature for multi-instrumentalists or for those wishing to use a backup instrument.

Each input is equipped with an activatable piezo buffer (PZB), guaranteeing perfect compatibility with passive piezoelectric microphones, optimizing their impedance for a natural and balanced sound reproduction.

This preamplifier also offers a three-band semi-parametric equalization shared between the two channels. The midrange control is particularly powerful, allowing you to precisely sculpt the sound of the instrument according to your specific needs.

To prevent feedback problems, the PZ-Pre incorporates a notch filter and a high-pass filter, both adjustable to effectively eliminate unwanted frequencies without altering the overall tone.

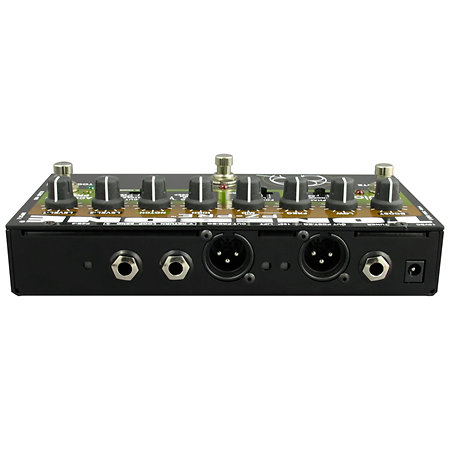

The PZ-Pre is equipped with four separate outputs, including a pre-EQ direct output for PA or recording systems, and a post-EQ output for stage monitors or custom mixes.

An effects loop, an adjustable volume boost and an always-on tuner output complete this compact and robust unit.

Designed for intensive use, the PZ-Pre combines durability and performance. Its compact size and intuitive design make it an ideal ally for professional acoustic musicians.

Whether for a studio session or a live performance, this preamplifier guarantees exceptional sound and absolute control.
Number of instrument inputs
 2
Weight
 1,2 kg
Power supply
 Power adapter (included)
  • Radial Tonebone PZ-Pre
  • Acoustic instrument preamplifier
  • Technology: Transistors
  • Number of channels: 2
  • Inputs: 2 x Jack, jack effects loop
  • Outputs: Jack, jack tuner, jack effects loop, 2 x XLR
  • EQ: 3-band, mid and notch semi-param
  • Standard input impedance: 16.8 kohms
  • Piezo input impedance: 10 Mohms
  • Output impedance: 1 kohm
  • PZB booster gain: 10 dB
  • Low-cut filter: position 1: 75 Hz / position 2: 220 Hz
  • Notch filter frequency range: 56 Hz to 330 Hz
  • Phase selector: normal, 180° inversion
  • Notch Q: position 1: -8 dB / position 2: -15 dB
  • Boost gain: 12 dB
  • Effects loop level: -10 dB
  • Power supply: 15 V DC, 400 mA (adapter included)
  • Dimensions: 203 x 108 x 35 mm
  • Weight: 1.2 kg
Radial - Tonebone Pz Pre
Radial - Tonebone Pz Pre
462,50 € excl VAT
In Stock
Usually shipped within 24h
+infos
Warranty 3  years
