Speaker driver

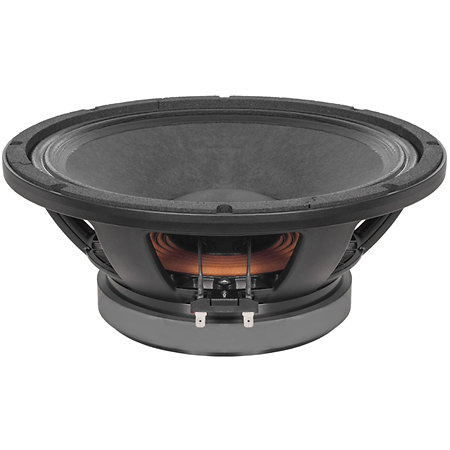

The B&C Speakers 12MH32 8 Ohm Push Buttons is a 12-inch loudspeaker designed to deliver powerful and accurate reproduction of midrange and bass in professional sound reinforcement systems, thanks to its high sensitivity of 101 dB and its robustness, making it an ideal choice for high-power speakers requiring excellent efficiency and reliability.
ARTICLE N° 103708
Presentation
The B&C Speakers 12MH32 8 Ohm Push Buttons is a 12-inch speaker with a power handling capacity of 800 W AES and a high sensitivity of 101 dB at 1W/1m, this transducer offers optimal performance even in configurations with high acoustic constraints.
Its waterproof reinforced paper cone guarantees good resistance to humidity variations and prolonged mechanical stress. The ferrite magnet generates a powerful magnetic field, ensuring precise control of the movement of the 3-inch copper voice coil, thus optimizing the transient response and the fidelity of the audio signal.
Designed to operate efficiently in a wide bandwidth ranging from 50 Hz to 3 kHz, the B&C Speakers 12MH32 is distinguished by a low Qts of 0.19 and a resonance frequency of 53 Hz, making it particularly suitable for tuned loads and horns intended for high-power sound reinforcement applications.
Its double-roll suspension, combined with a single spider, gives the membrane excellent stability while allowing a controlled linear excursion of ±5 mm. This architecture helps to minimize distortion and maximize signal clarity, particularly in vocal and instrumental registers where definition is essential. Its Push Button connectors facilitate rapid integration into modular configurations and guarantee a secure connection.
Its waterproof reinforced paper cone guarantees good resistance to humidity variations and prolonged mechanical stress. The ferrite magnet generates a powerful magnetic field, ensuring precise control of the movement of the 3-inch copper voice coil, thus optimizing the transient response and the fidelity of the audio signal.
Designed to operate efficiently in a wide bandwidth ranging from 50 Hz to 3 kHz, the B&C Speakers 12MH32 is distinguished by a low Qts of 0.19 and a resonance frequency of 53 Hz, making it particularly suitable for tuned loads and horns intended for high-power sound reinforcement applications.
Its double-roll suspension, combined with a single spider, gives the membrane excellent stability while allowing a controlled linear excursion of ±5 mm. This architecture helps to minimize distortion and maximize signal clarity, particularly in vocal and instrumental registers where definition is essential. Its Push Button connectors facilitate rapid integration into modular configurations and guarantee a secure connection.
Other features
-
B&C Speakers 12MH32 8 Ohm Push Buttons
-
12" (31 cm) speaker
-
Power 800 W AES
-
Ref: 12MH32-8
-
Supplier: ALT012MH328M
-
Sensitivity 101 db 1w/1m
-
Frequency response: 50 Hz - 3 kHz
-
3" (76 mm) Copper voice coil
-
Magnet: Ferrite
-
Connectors: Push Buttons
-
Fs: 53 Hz
-
Qts: 0.19
-
Xmax: 5 mm
-
Suspension: Double roll
-
Radial cone with front/rear waterproof treatment
-
Single spider
-
Repair kit RCK012MH328 sold separately
-

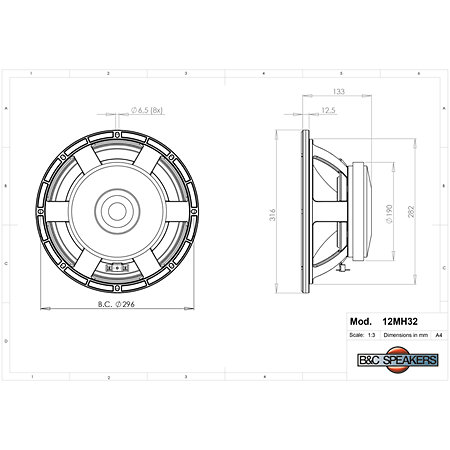

Dimensions: Ø361 x 133 mm
-
Weight: 7.5 kg
